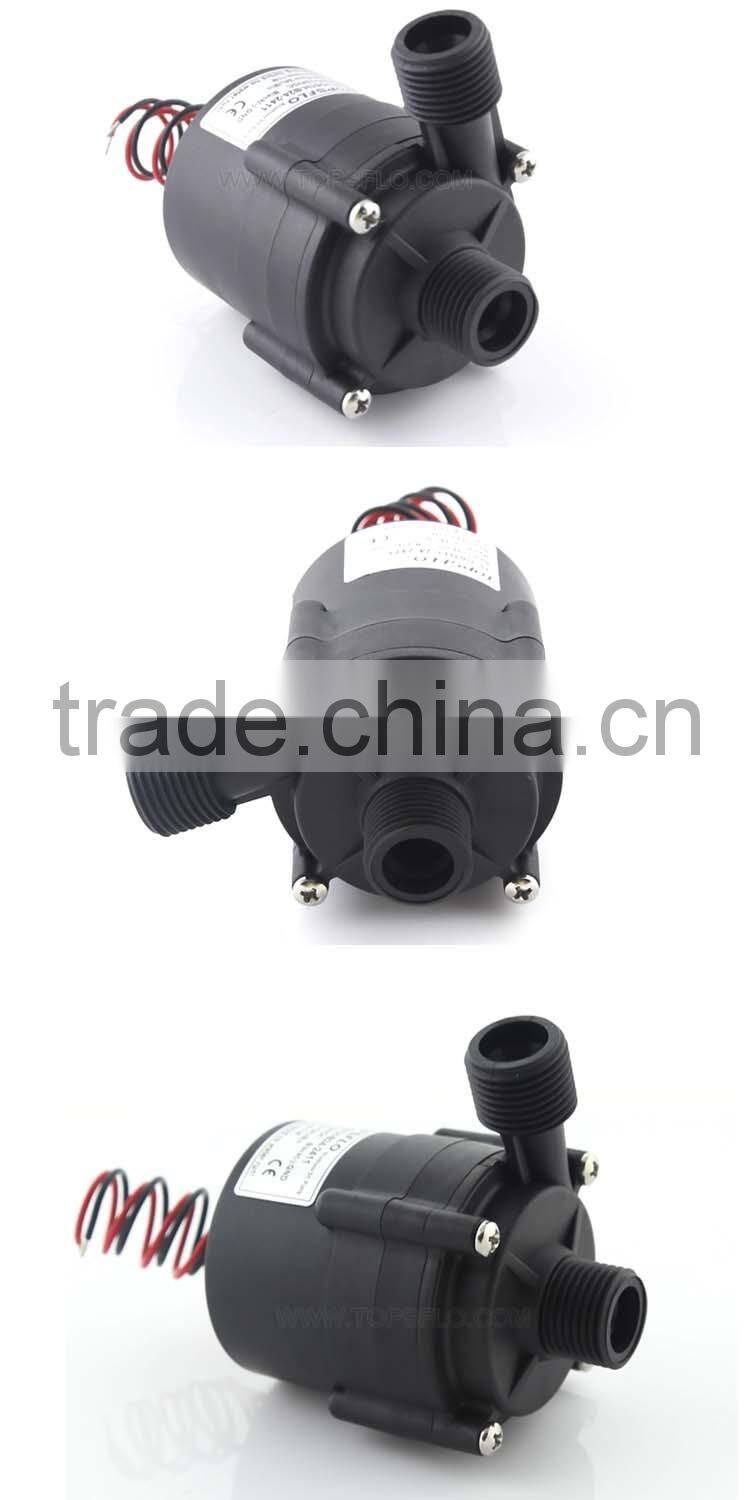

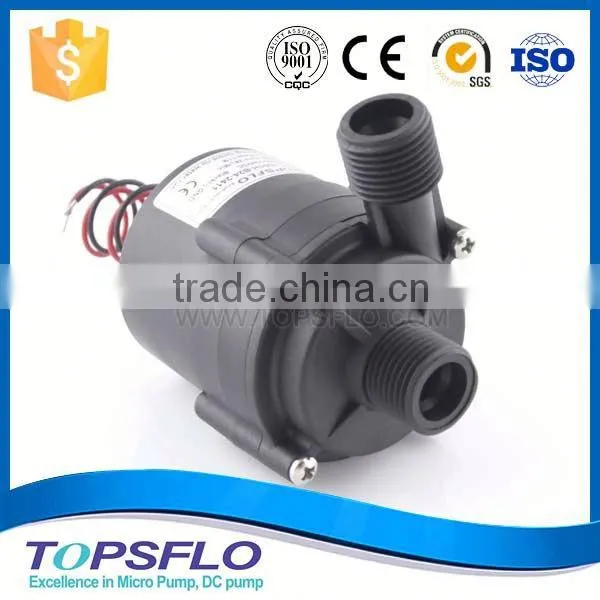

12v or 24v dc circulation brushless clean energy environmental protection swimming pools
1. Liquid transfer general purpose pumping 2. Hot water circulating system
3. Electronics Cooling Water Circulation Chiller Systems
4. Liquid filling and transfer in food, beverage processing, vending machines
5. Instant electric water heater, electric shower.
6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment.
8. Irrigation solar pump, swimming pool circulation
9. Electric cars: radiators, heaters 10. Automotive air conditioning
11. Computer CPU cooling circulation 12. Water heating mattress

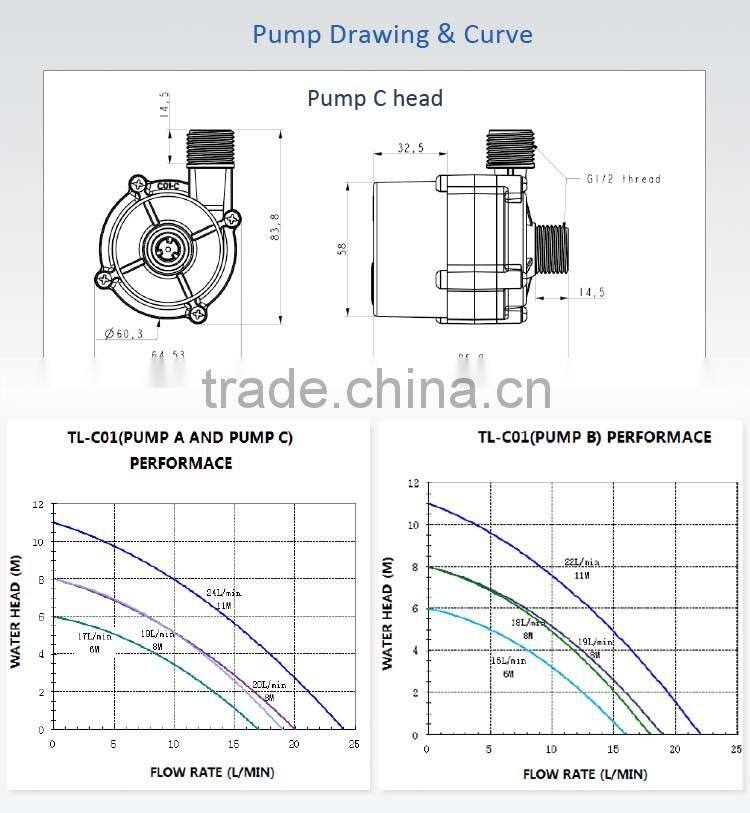

| Specification: |
| Max Flow Rate | 18L/MIN 22L/MIN |
| Max Static Lift | 8M ,11M |
| Rated Voltage | 12V / 24V |
| Impeller Type | Open impeller |
| Motor Type | Three-phase brushless DC motor |
| Food Grade(Y/N) | Y |
| Liquid Temperature | 0-100°C |
| Pump Theory | Centrifugal pump |
| Ambient Temperature | -10-50°C |
| Media | Pure Water |
| Waterproof Class | IP42 |
| Use Place | Indoor or Outdoor |
| Working Voltage Range | 6~16V or 12~28V |
| Power Consumption | 34W,48W |
| Noise Class form 1M | 42dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet | 21 mm |
| OD of Outlet | 11.5mm |
| Dimension | 89.3x60.34x57.92 mm |
| Power Supply | DC power supply, battery, solar powered |
| Flow Rate Regulation | (customized functions) 1.PWM, 0~5V speed control, 2.submersible lar panel driven directly 4.FG(RPM) signal wire |
| Remarks | Can’t dry-running, not Self-priming |
The technical parameters above is only for your reference, for more details , please feel free to contact us. | |
| Product Feature: |
♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous 24hours work
♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours
♦ 3-phase motor for lower power consumption and lower fever
♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature ≥90°C
♦ Low or no maintenance
♦ Food grade materials
♦Imported Japan XYRON PPE material, certificated by WARS & NSF.
| |
| | |
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the requirements, and we will be happy to advise. Please feel free to contact us !
