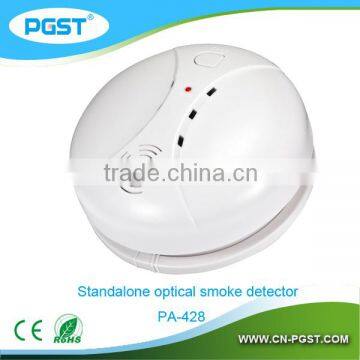

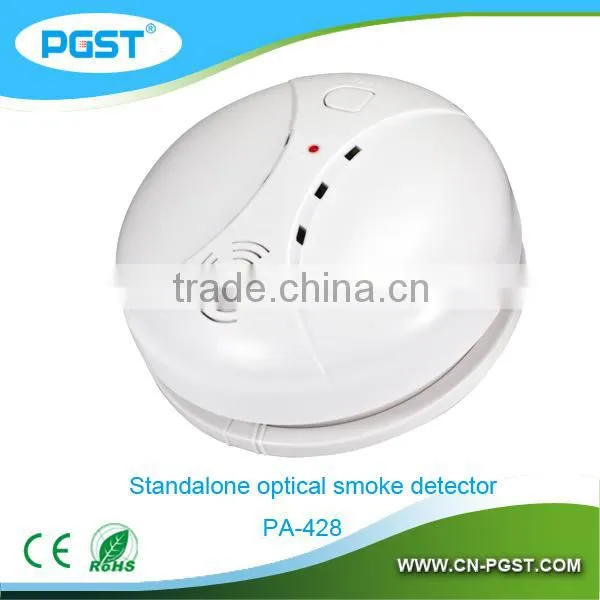

Fire Detector Smoke Alarm System PA-428, CE&ROHS&EN14604NegotiableMOQ: 10 Packs
-
Optical Standalone Smoke Detector PA-424A, CE&ROHS&EN14604NegotiableMOQ: 10 Packs
-
Photo Electric Smoke Alarms PA-425,A CE&ROHS&EN14604NegotiableMOQ: 10 Packs
-

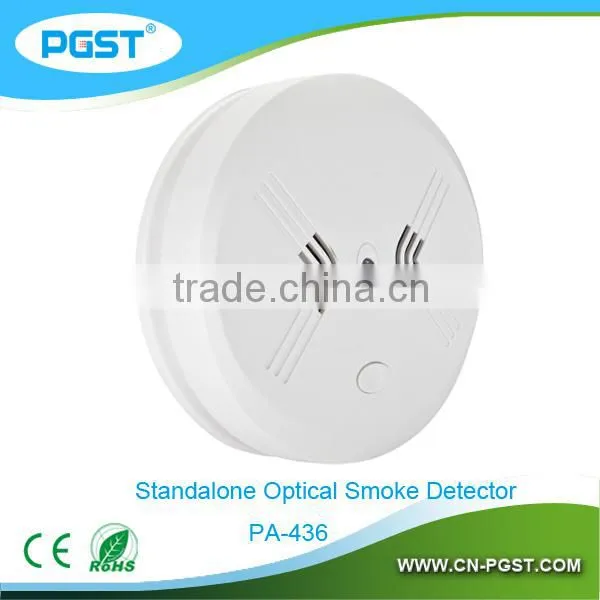

New Design Standalone Smoke Alarm PA-436,9V Battery and 220VAC, CE&ROHS&EN14604NegotiableMOQ: 10 Packs
Company: SZ PGST CO., LTD (Shenzhen Pilot Guards Safety Technology Co., Ltd)
website:
skype: pgstsales
mobile: 86-15989550656
tel: 86-755-33252178
Contact: Arno Xie Sales Supervisor
FEATURES
Working Voltage: 9V alkaline battery or carbon-zinc battery
Standby Current: ≤10uA
Working Current: ≤40mA
Sensitivity of Smoke: II Grade
Emission Frequency: 315MHz/ 433MHz
Emission Distance: open ≥ 120m
Working Temperature: -10 ℃~+50 ℃
Interface Temperature of Air: 10%-90%
Alarming Sound: ≥75dB
Outer Size: 107*44mm
Life of Battery: ≥ 1 year
Reference Standard: EN 14604-2005
APPLICATION OF PRODUCT
Selecting of Oscillation Electric Resistance:
<![if !supportLists]>1. <![endif]>Bounding pins can be set oscillation resistance as 1.5M, 3.3M, 4.7M, which can choose corresponding mini jumper for oscillation resistance.
<![if !supportLists]>2. <![endif]>Coding choice:
Set the address code and defense zone code between the detector and the alarm panel. A0-A7 is for address, the coding is corresponding to the alarm panel; D0-D3 is for data coding, used to set alarm defense zone.
INSTALLATION
Bracket installation: choose installation area, first make two holes on top-ceiling or wall, then insert the plastic expansion tubes into the holes, let the installation plate close to the wall, insert the screws into the holes of the plate, twist tightly the screw to fix the bracket firmly. The detector is a compact device which is not allowed to open. Please put the battery into the battery holder of the detector, Align the back of detector close to the mouth of the installation, clockwise rotate, and then slightly press the testing button and check whether the detector can work normally.
TESTING
The detector is already in the work state after installation, with LED flashing once for every 45 seconds. When detect the smoke, the detector would make alarms, until the air is clean again.
Press the testing button to trigger out the alarm signal, the detector would make alarms, meanwhile, LED flashes fast and release the wireless signals. Also apply the smoke method to test the detector. (Testing is required once a week, to make sure the reliability of the detector)
NOTICE
<![if !supportLists]>1. <![endif]>Not allowed to be installed near the places such as doors, windows, fans etc, where the air flows fast which would affect the sensitivity ; Neither the high humidity place such as bathroom, nor high temperature places such as attic, the temperature should be -10℃≤ T≤ +50℃.
<![if !supportLists]>2. <![endif]>Please clean the detector by soft brush per six months to ensure the sensitivity and life of product. Pay attention to remove the battery before cleaning.
<![if !supportLists]>3. <![endif]>For various reasons, including but not limited to changes in environmental conditions, such as the disruption or tampering would affect the performance, cannot reach the expectation. The users are suggested to take all necessary precautions for his/her safety and the protection of the property.
