Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Diaphragm Liquid 6v 12v 24v Color Inkjet All-in-one Printer Pump

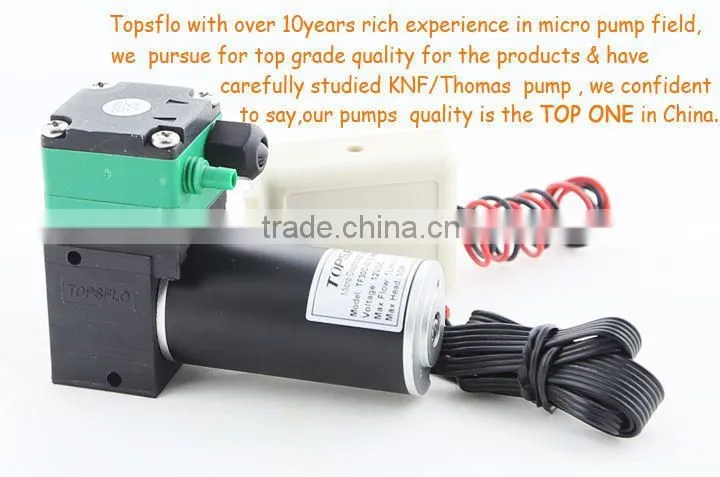

Diaphragm Liquid 6v 12v 24v Color Inkjet All-in-one Printer Pump

Name: Diaphragm Liquid 6v 12v 24v Color Inkjet All-in-one Printer Pump
Brand: TOPSFLO
SKU: 122015155
Availability: InStock

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Diaphragm Liquid 6v 12v 24v Color Inkjet All-in-one Printer Pump thumbnail-1

Diaphragm Liquid 6v 12v 24v Color Inkjet All-in-one Printer Pump photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

TOPSFLO

Model Number:

TF30A-D

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name TOPSFLO

Model Number TF30A-D

Theory Vacuum Pump

Structure Diaphragm Pump

Usage Other, liquid

Power Electric

Standard or Nonstandard Other, standard,customized

Fuel Other, DC power, Battery

Pressure Other, 0.05-1L/min,vacuum 55kpa

Application Other, Printer ink, fireplace,Gas detection devices

Product Description

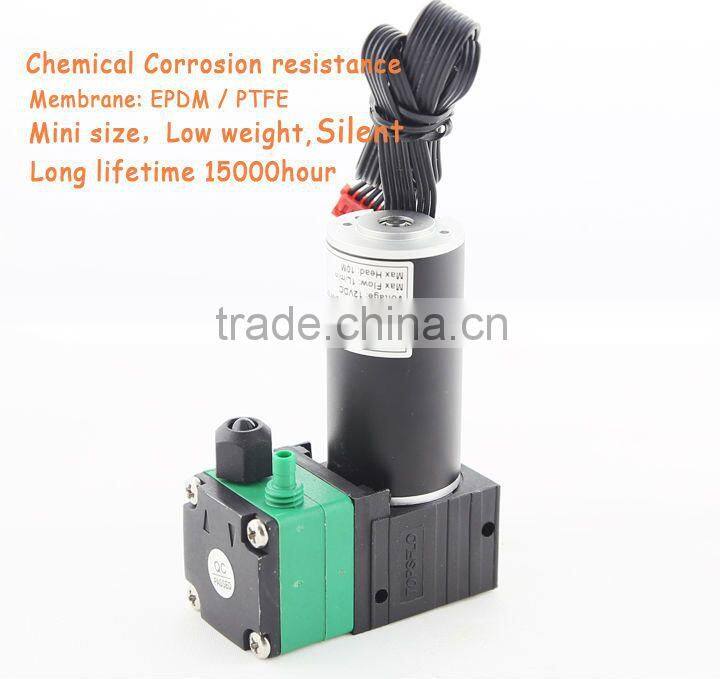

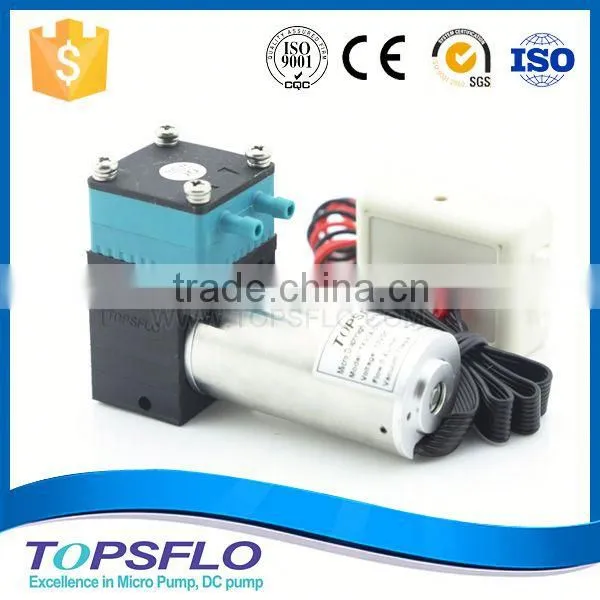

Diaphragm liquid 6v 12v 24v color inkjet all-in-one printer pump

Specification:

Brand name	TOPSFLO
Model	TF30D-C&D
Motor	Coreless Brushless motor
Total life span	Above 15,000 hours
Pump head	Nylon
Diaphragm	EPDM / PTFE
Valve	EPDM / PTFE
Sealing fin	NBR
Voltage (DCV)	6V	12V	24V
Current (A)	0.4	0.24	0.15
Flowrate (L/min)	0.05-1	0.05-1	0.05-1
Max water head (M)	≥10	≥10	≥10
Max vacuum (Kpa)	-55	-55	-55
Low Noise (dB)	<50	<50	<50
Light weight	0.25kg
Pump size	*L W * H: 80 * 30.5 * 58mm**

Technical Fetures

1. Optional Materials Compatible with Various Types of Ink

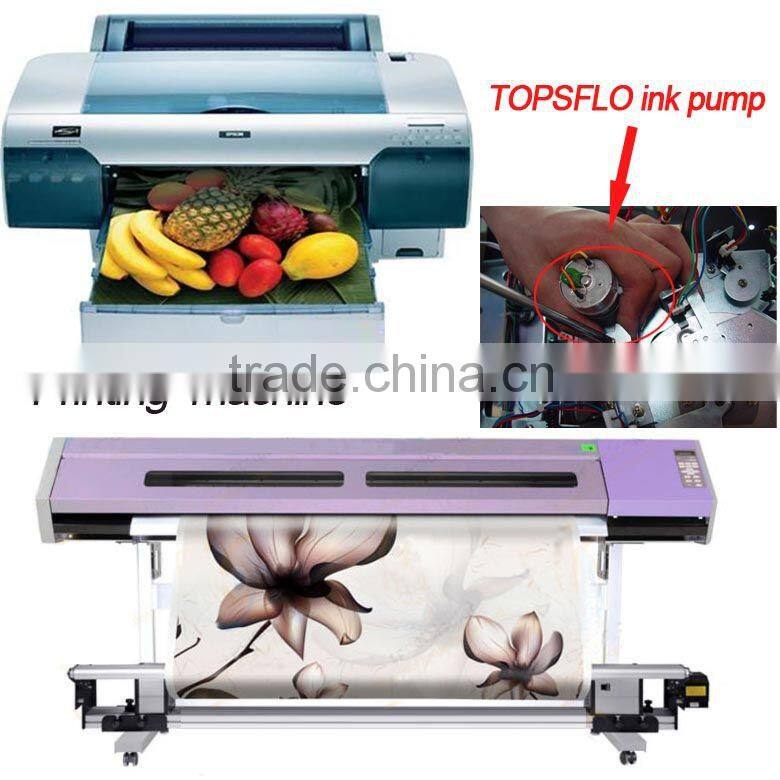

2. Ideal for All Sorts of Printers

Other printer types:

1.Wide Format Graphics and Industrial Printer

2.Inkjet Digital Printing Machines for Textile industry

3.Labelling machine printer

4.CIJ small character printer

ding system

6.barcode printer etc.

3. Adjustable Flowrate by Controlling motor speed (0-5V PWM)

4. Advanced Coreless Brushless motor

TOPSFLO ink pump TF30D-C&D is made by the most advanced motor on the market today -- Coreless Brushless Motor, with total accumulated life span 15,000 hours, which not only ensures interruption working for years, but also can sustain 24 hours continuous heavy duty.

5. Compact size, Dry running and maintaince free

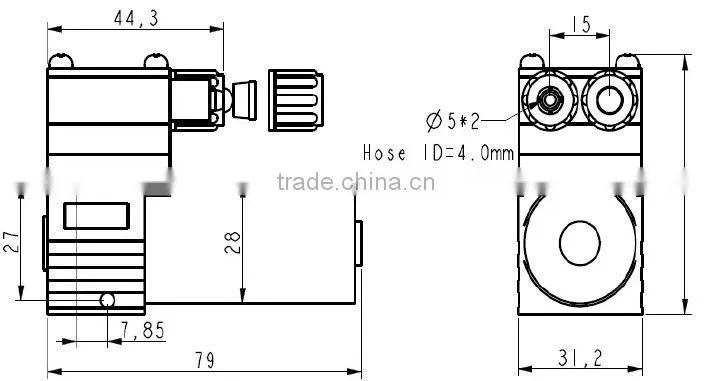

Dimension (mm)

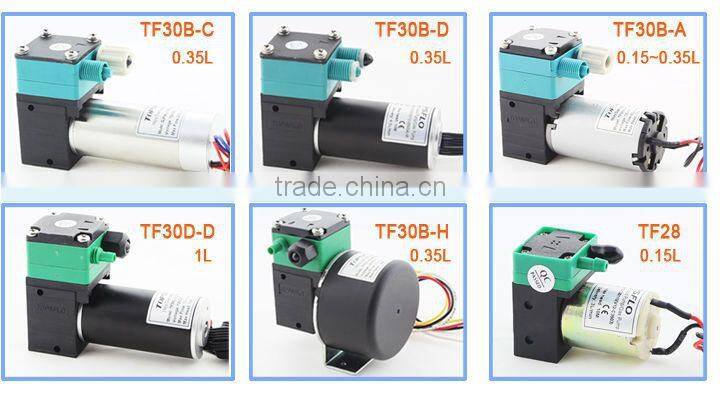

Similar Printer Pumps Reference

Diaphragm brush solvent & oil based ink pump

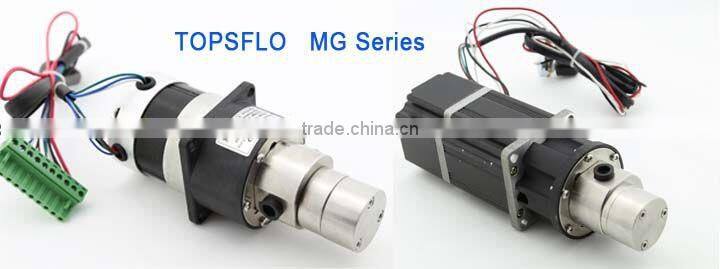

Continuous working brushless gear pump for hard particle ink

Packaging & Shipping

Company Information

ink pump

Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)

Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm air/liquid pump )for over 10 years with excellent quality and competitive.

Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice

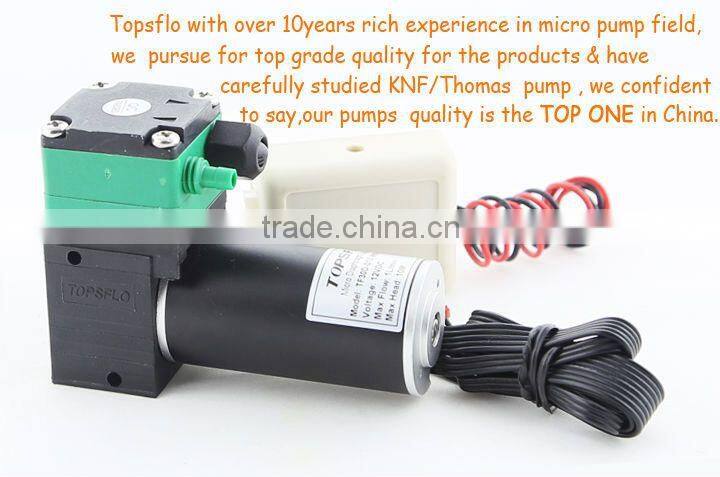

As a world famous micro pump manufacturer, the brand TOPSFLO is synonymous with outstanding quality and efficiency. We focus on the needs and demands of Original Equipment partners in various ink-printing machine application,and done a series field test together with many of our cooperation clients, Thus, with rich experience in this field, we confident TOPSFLO ink pumps will be your reliable choice!

For more detail, please feel free contact us !
