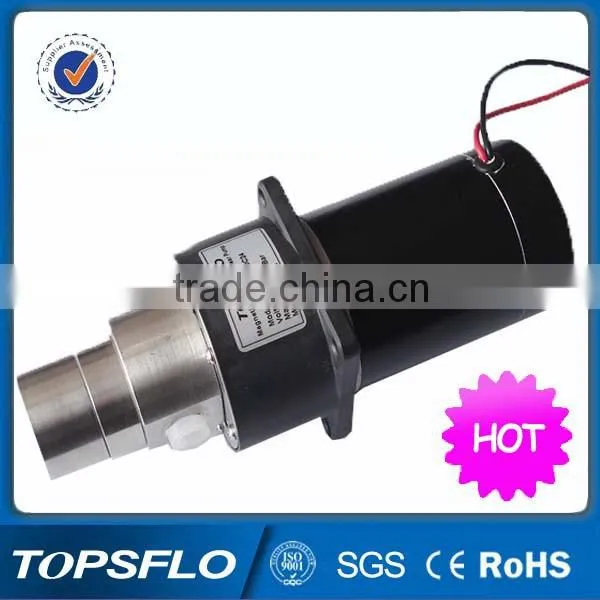

MG200XK-DC24 Brush Magnetic Drive Micro Gear Pump
Introduction:
1 .Magnetic gear pumps, using magnetic coupling drive without leakage,316 stainless steel shell, PEEK material gear,PTFE materials for the static sealing and bearing, can with the built-in limit pressure valve.
2. Pump can be used in the -0.1 Mpa~2Mpa closed systems, the rated output pressure is 0.5 Mpa (medium: water),the highest output 1.4 Mpa pressure, flow rate 50~3500 ml / min.
3. Widely used in medical machinery, fine chemicals, water treatment printing, cleaning, packaging, food processing,.and other areas of liquid delivery
Features:
Small Size ,Leak-Free
Smooth, Pulseless Delivery
Chemically Resistant
Easy to Service
Proven Reliability
Advanced Pump Technology
Wide Range of Options
OEM Configurations
High-System Pressure Capability
Enhanced Efficiency
Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 85%
3. Fluid viscosity: 0 ~ 3000 CPS
4. Ambient temperature: -10 ~ 50 Degree celsius
5. Fluid temperature:
-10 ≤ T ≤ 100 Degree celsius (except for the freezing)
6. Working way: continuous working
7. Apply the media of:
acid and alkali, salt, organic solvents, oils.
8. Lifetime above 1500~2000hours
Application
Can be widely used on various of fields, such as medical apparatus and instruments, scientific experiment, petrochemical, pharmacy, electroplate, environmental protection, printing and dyeing, cleaning, jewels processing, farming and forestry, electronics industry, light mechanism, national defense and so on. It also can be used to transport, wash and pour, spray, drip and inject, measure all kinds of liquid medium.
| Item Number | Max Head Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | ml/rpm (reference 3000RPM) |
| MG204XK/DC24 | 10 | 1000 | 70 | DC24 | G1/8" | 0.27 |
| MG209XK/DC24 | 7 | 2500 | 70 | DC24 | G1/8" | 0.55 |
| MG213XK/DC24 | 7 | 3500 | 70 | DC24 | G1/8" | 0.75 |
Note:
1. "04" means the gear with the height of 4mm, "09" means 9mm, "13" means 13mm .
2. if needed : "L" limited pressure valve, " R " non return valve , please specially specify in advance.
3. "XK" PEEK gear, "YT" Alloy gear, if the liquid contain rigid particles,such as pigment ink,recommend use YT gear.
OEM and ODM service are avaiable under your request.
The specifications only for reference, for details, please contact with us!
