12v Mini High Vacuum Pump for Medical

12v Mini High Vacuum Pump for Medical thumbnail-1
12v Mini High Vacuum Pump for Medical photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TOPSFLO
Model Number:
TMD40
Contact Supplier Request Quote Chat Now
Changsha TOPSFLO Micro Pump Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name TOPSFLO
Model Number TMD40
Theory Other, gas ,vacuum,suction,self-priming,pressurize
Structure Diaphragm Pump
Usage Other, gas , ozone, other
Power Electric
Standard or Nonstandard Other, Standard,customized
Fuel Other, DC power, Battery
Pressure Other, pressure 250kpa,vacuum 80kpa,flow rate 10L/min
Application Other, Gas transferring and evacuating

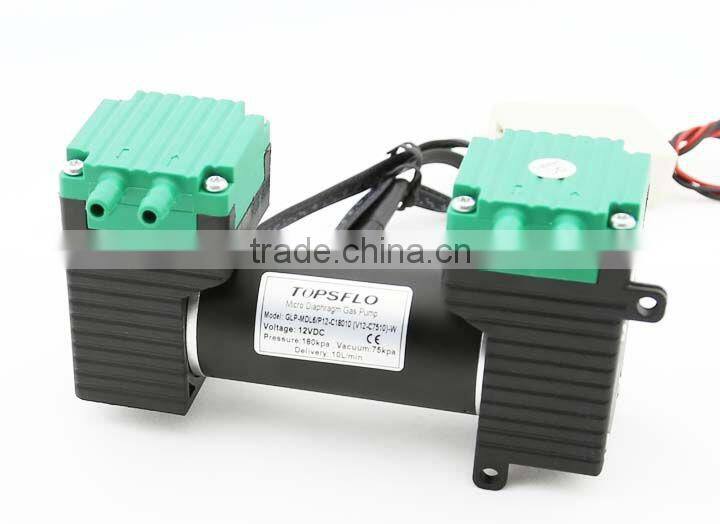

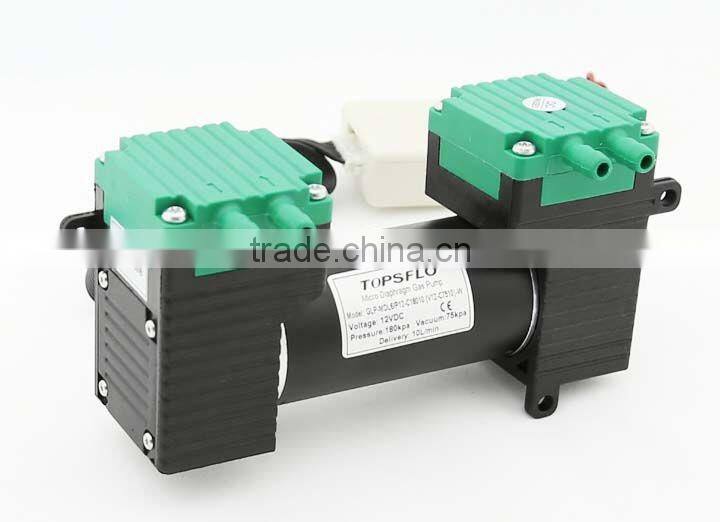

12v mini high vacuum pump for medical

12v mini high vacuum pump for medical12v mini high vacuum pump for medical12v mini high vacuum pump for medical

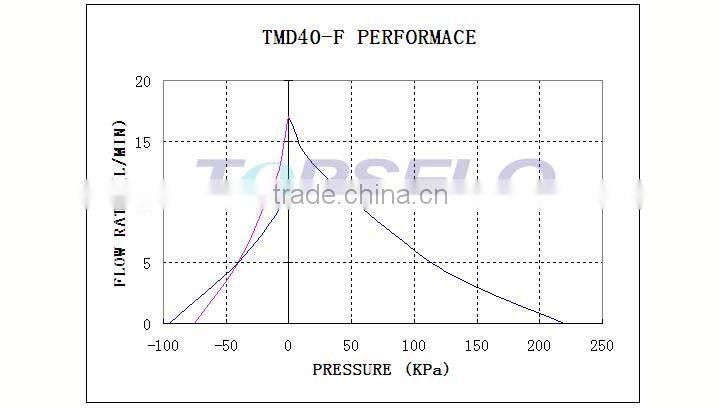

Product specification



Model Pressure Pump Vacuum Pump Rated Voltage No-load Current Max Pressure Max Vacuum Max Flow
  (Item Number) (Item Number) (Vdc) (A) (KPa) (KPa) (L/min)
TMD40-F TMD40-F12-P22017( outside controller)   in parallel double outputs      12 1.8 220   17
    TMD40-F12-V7517 (outside controller)   in parallel double outputs 12 1.8   -75 17
    TMD40-F12-V9512 (outside controller)   in series single output  12 1.8   -95 12
" P " means pressure pump, " V " means vacuum pump, "12/24" means different voltages optional.

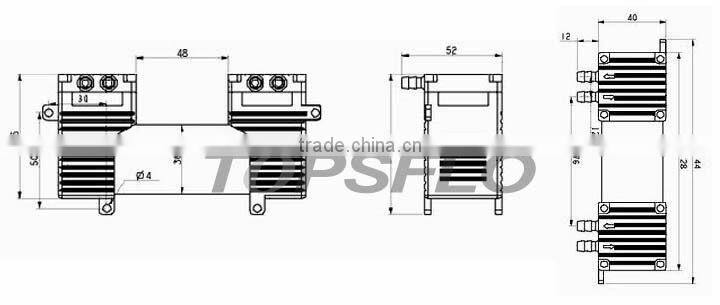

Pump Weight:450g; Pump Size:131mm*40mm*75mm; Inlet&Outlet:OD 6.5mm/ID 3.4mm,hose suggestion:ID 5.0mm
Super silent noise

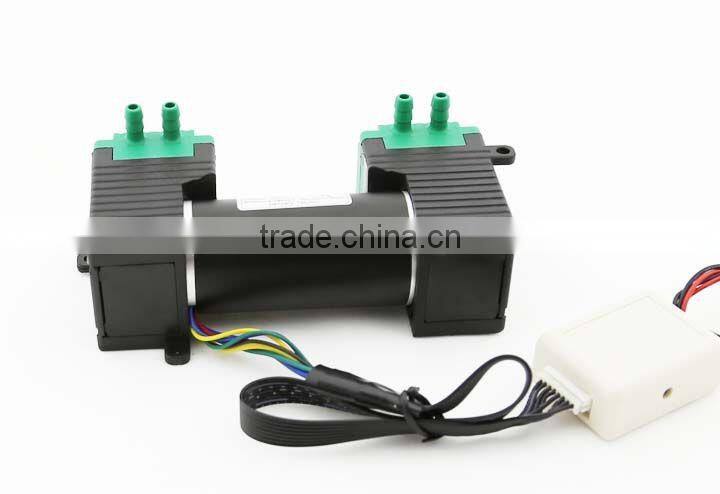

Motor type and code: “F”means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime 15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions.

12v mini high vacuum pump for medical

Product feature



Highest Performance/Size Ratio



High flow ,high pressure ,large vacuum

Performs Quieter

Lasts Reliably Longer

Uncontaminated flow

Little vibration

High level of gas tightness

Extreme chemical resistance

Optimal solution for your application





Application

Dental dentistry medical machine

Medical aspirator device

Gas detection devices Sewage disposal
Patient Monitoring Wide-Format Printer
Blood Pressure Monitor Bio-Chemical Analyzer
Gas massage products Electrolyte
Lab equipment Beauty equipment
Microplate Washer Chemistry analysis
Airpler Vacuum transfer
Aatic Tourniquet Autoclave
