DC Brushless quiet fan motor battery powered pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TDC |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery |
Pressure: | Other, 58 Psi (4 Bar) | Application: | Other, Liquid transfer or circulating cooling |
Product Description

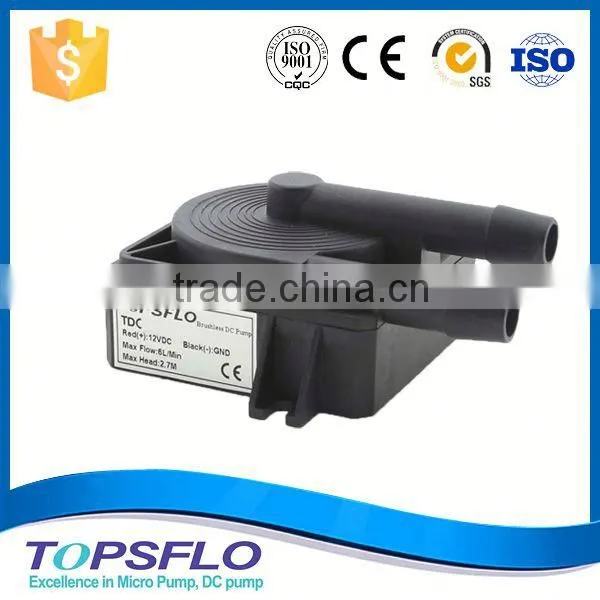

DC Brushless quiet fan motor battery powered pump
High Efficient Ultra Quiet 26dB Ideal Life 50000hrs' Continuous Duty No maintenance Small Footprint
1. DC brushless motor with long lifetime more than 50,000 hours .
2. Low noise: ≤26dB, at 1 meter distance.
3. Heavy duty work, can sustain continual 24 hours.
4. Durable permanent magnetic rotor/impeller & fine ceramic shaft.
5. Advanced magnetic drive technology for static-impeller, without any leakage for ever.
6. Low or no maintenance.
7. Low power consumption.
8. Small footprint.
The similar quality and performance but more competitive price than DDC pump
Specifications | Topsflo TDC | Laing DDC | Picture |
Operating voltage range: | 6 to 13.2 VDC | 8 to 13.2 VDC | Topsflo TDC-A |
Rated power: | 6 W | 12 W | |
Max head: | 0.8 ft (2.7 m) | 7m | |
Nominal discharge : | 400 LPH | 8.7L/min | |
Maximum pressure: | 58 Psi (4 Bar) | 21.75 Psi | |
Temperature: | 185° F(85°C) | 140° F(60°C) | |
Size: | 61.4*61.4*35.5mm | 62*62*38mm | VS |
Noise measurement: | 26-30dBA | 40dBA | Laing DDC |
Weight: | 200g | 200g | |
Pump ideal life time: | 50,000 Hours | 50,000 Hours | |
RPM Signal: | single wire on 3 pin connector | single wire on 3 pin connector | |
Connection size: | 3 / 8" barbs (10mm) | 3 / 8" barbs (10mm) |
Areas of Use:
Electronics ooling Laser Cooling Medical Water Circulation Chiller Systems Liquid Transfer General Purpose Pumping
More
What’s the main products of your company?
We specialized in all kinds of micro pumps (micro BLDC centrifugal water pump, micro gear pump, high performance diaphragm air/liquid pump) for over 10 years with excellent quality and competitive.
Please tell me your detailed flow rate, pressure, running time, voltage, application, fluid, ambient temperature and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Our sales engineers can assist you with product selection and recommendation, troubleshooting and technical assistance, manuals and documentation, custom and unique product sourcing, complete application solutions and much more!
1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
