Mini Size DC Gear Miniature Pump for Water Quality Analyzer
- Shanghai Shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
DC Brushless Diaphragm 6v 12v 24v Process Gas Analyzer Pump
-
TOPSFLO 12V DC Diaphragm Process Gas Analyzer Pump
-
DC Brushless Diaphragm 6v 12v 24v Air Purity Analyser Pump
-
6v 12v 24v dc Diaphragm Gas Analyze TOPSFLO Pump
-
6v 12v 24v dc Diaphragm Favorites Gas Analyze Vacuum Pump
-
DC Brushless Diaphragm 6v 12v 24v Customised Material Ozone Generator Pump
Product Details
| Place of Origin | China | Brand Name | TOPSFLO | |
| Model Number | TG-02 | Structure | Gear Pump | |
| Usage | Other, Water, oil, various liquid | Power | Electric | |
| Standard or Nonstandard | Standard | Fuel | Other, DC power, Battery, Solar panel | |
| Pressure | High Pressure | Application | Other, Various liquid transfer or boosting |
Product Description
Mini Size DC Gear Miniature pump for water quality analyzer
Product Description
1. Working principle :dc gear pump
2. Structure: gear structure; wear-resistant, corrosion-resistant
3. The products use brush motors, Products using the brush motor driver, small size,high pressure
4. Fluid : A variety of liquid and oil
Temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)
5. Material: PPS gears, PPS pump head
6. Applicable to the interruption media transmission
Product Features

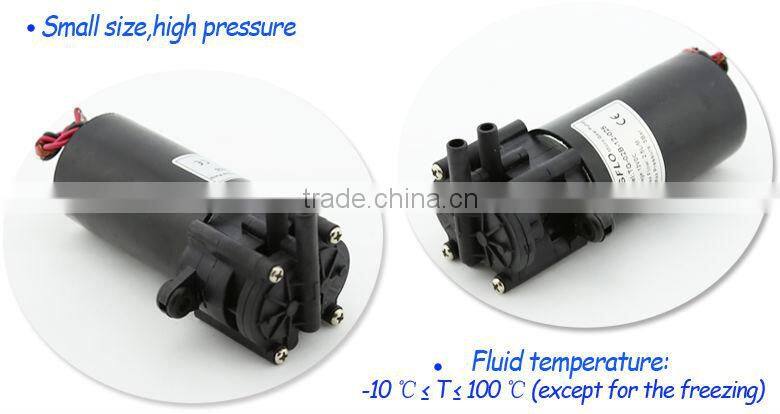

Small size, high pressure
Excellent self-priming,
Smooth, Pulseless Delivery
Easy to Service
Chemical resistance
DC Motor drive.
Application areas
Widely used sanitary ware,,spray,ice-making machines,drinking fountains,lab,Humidifier, medical equipment,Food Grade, etc.

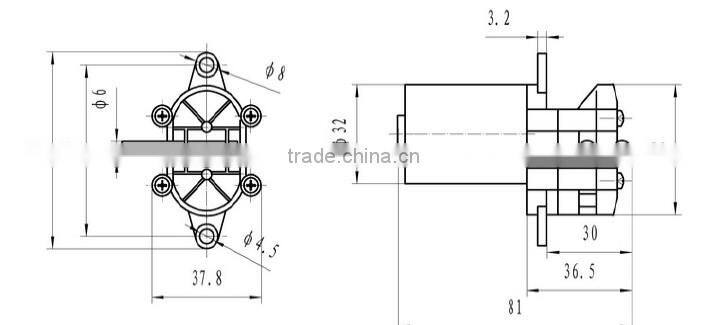

Dimension (mm) 1 inch=25.4mm
Specification:
| Model | Item Number | Max Flow (L/Min) | Max Pressure (Bar) | Rated Voltage (V) | Voltage Scope (V) | Power (W) | Suction Height ( M) |
| TG-02S-12-017 | 1.7 | 1.5 | DC12 | 5~14 | 12 | 0.3M | |
| TG-02S | TG-02S-24-017 | 1.7 | 1.5 | DC24 | 8~26 | 12 | 0.3M |
| TG-02S-24-03 | 3 | 3 | DC24 | 8~26 | 20 | 0.5M | |
| TG-02B-12-015 | 1.5 | 2 | DC12 | 5~14 | 35 | 0.4M | |

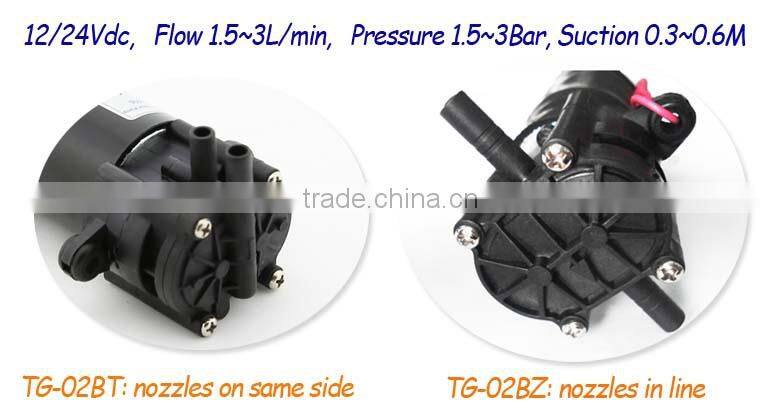

| TG-02BT | TG-02B-12-025 | 2.5 | 3 | DC12 | 5~14 | 40 | 0.6M |
| TG-02BZ | TG-02B-24-015 | 1.5 | 2 | DC24 | 8~26 | 35 | 0.4M |
| TG-02B-24-025 | 2.5 | 3 | DC24 | 8~26 | 40 | 0.6M |
Note:
1. TG-02S and TG02B with the same pump head, in motor size TG02B a little bigger with length of 104mm,width of 38mm.
2. TG02B lifetime reference is 800hours, TG02S lifetime reference is 400hours.
3. TG02B noise slightly slower.
