Specifications
RDH450 hdpe fusion welding machine1. welding range : from 280mm~ 450mm
2.application: water,gas,irrigation,drainage
RDH450 hdpe fusion welding machine
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.

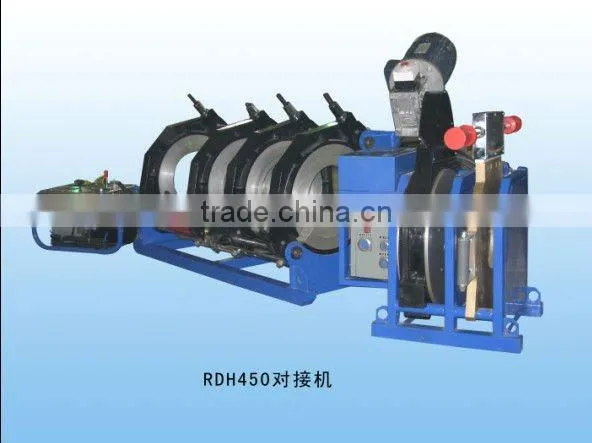

RDH450 hdpe fusion welding machine
Welding ranges |
280mm—315mm—355mm-400mm-450mm |
Ranges of application |
PE,PP and PVDF |
Working voltage |
~380V ±10%,50Hz
|
Environment temperature |
-10° ~ 45° |
Total power |
planing tool:1.5 kW, heating plate:5.2kW , hydraulic unit motor: 1.5kW |
components |
basic frame, heating plate, planing tool, and support (for planing tool & heating plate) |
heating plate characteristics |
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature |
Other device |
Electronic count-down timers for heating and cooling time. |
Optional Parts:
1. Stub End Device
2. Electric Crane and Hoist

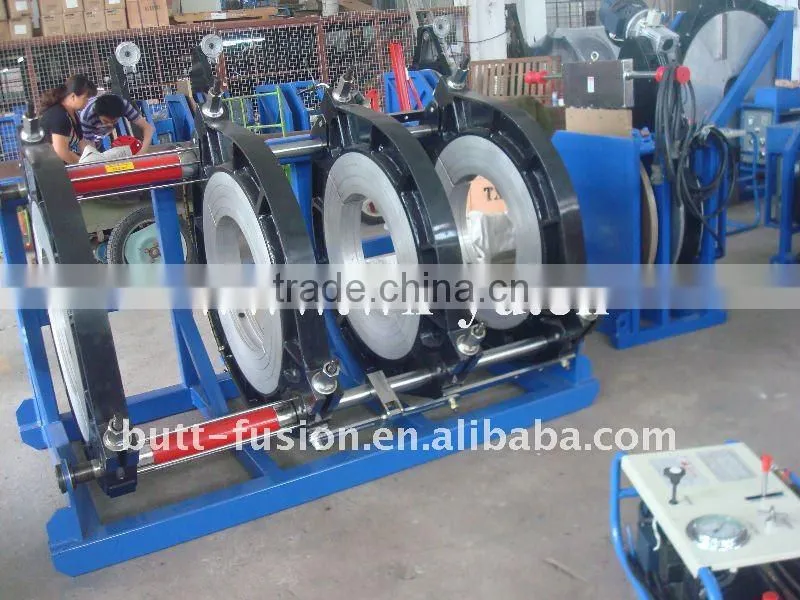

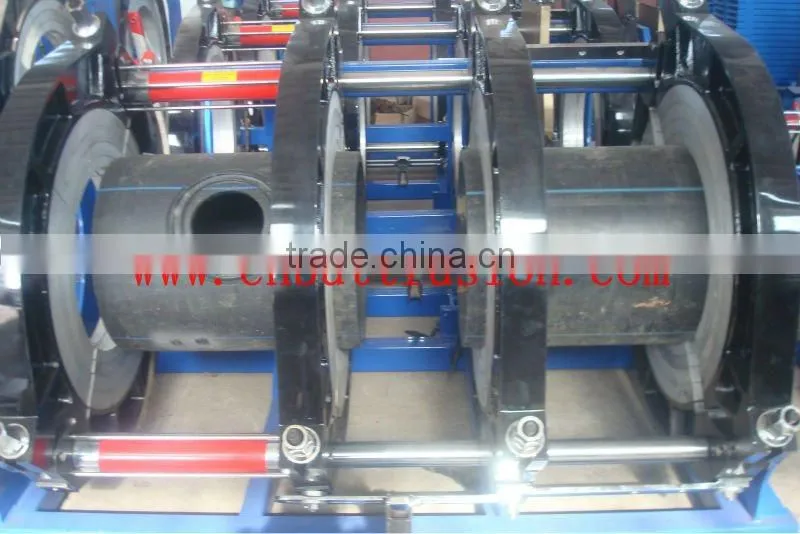

RDH450 HDPE Fusion Welding Machine In Workshop:
