Specifications
1,Suitable for PP/PE/PVDF Pipe2,Hydraulic Control
3,CE Certification
4,Packing: Wooden Box
5,Good Sales Service
RDH250 Butt Welder
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine, Butt Fusion Machine, HDPE Fusion Machines, PE butt fusion welding machine, PE butt joint machines, PE butt jointing machine
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex
working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Introduction for RDH250 Butt Welder
1), Four main clamps made of light weight alloy.
2), Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
3), Safety switch enables the trimmer to start only when it is located in the operation position.
4), A mechanical lock excludes the disengagement of the trimmer during the operation
5), Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
6), Low temperature difference in heating plate surface, within 5 degree
7), Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
8), Imported oil seal & Italian quick couplers
9), Fine operation panel with clearly strong meshing printing characters.
Components for Butt welder:
1. Trimmer
2. Heating Plate
3.Hydraulic unit
4, Basic Frame

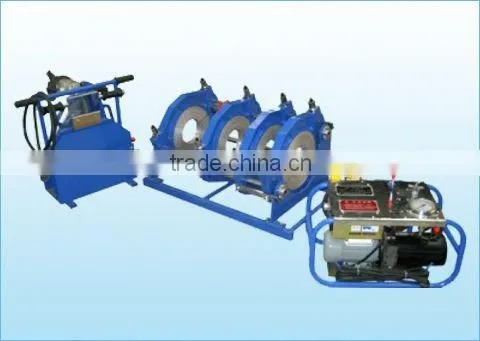

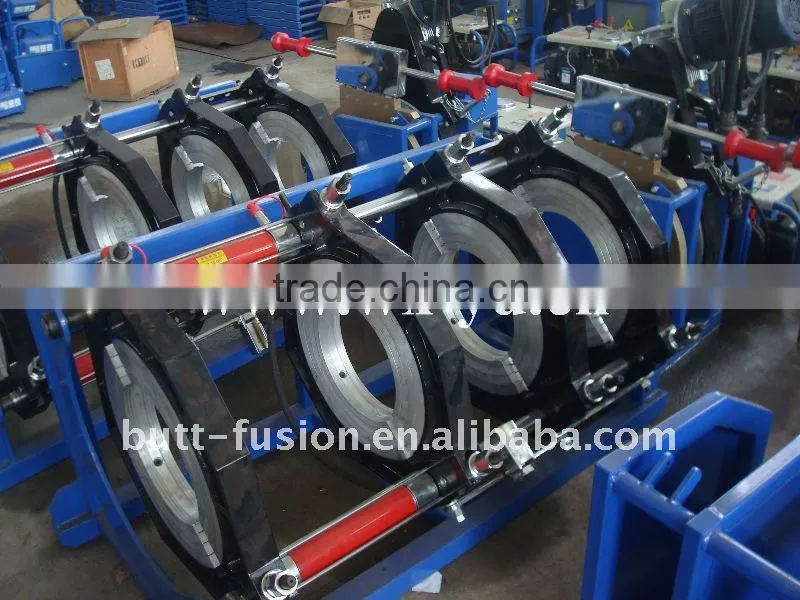

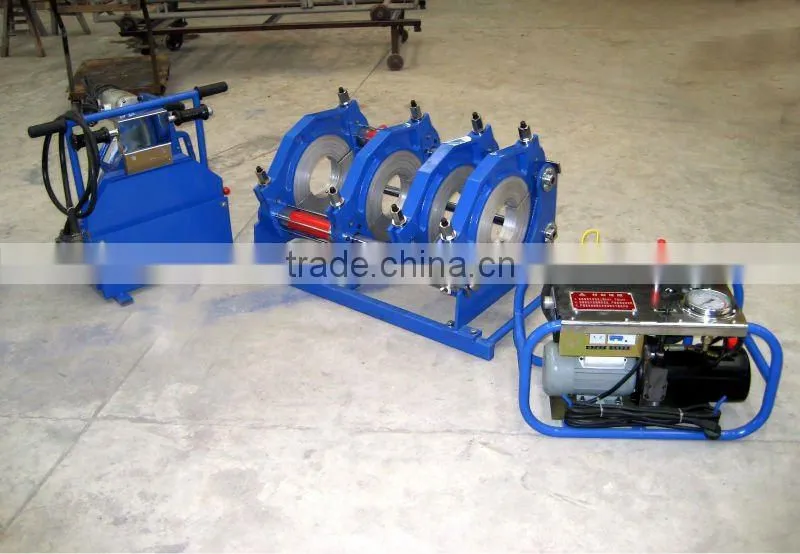

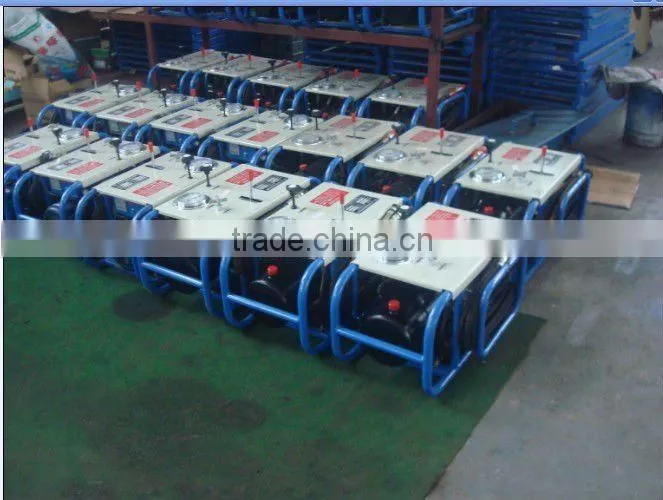

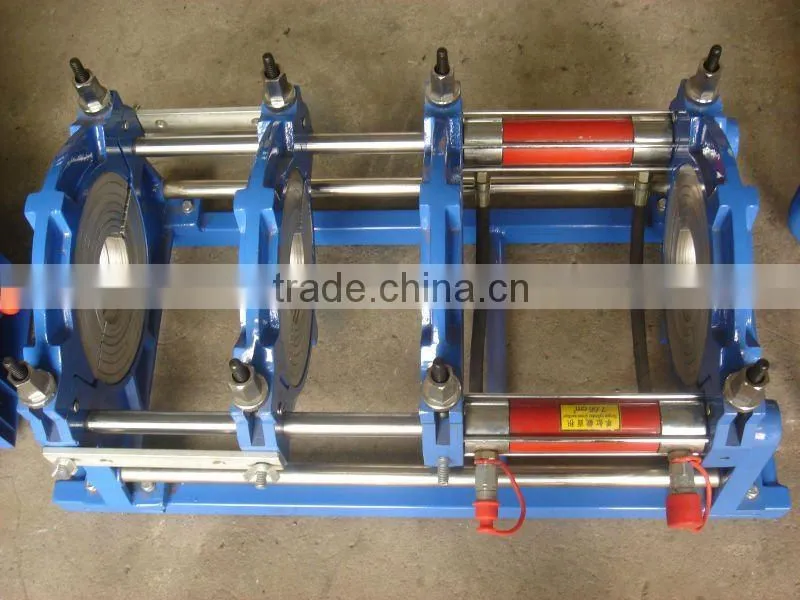

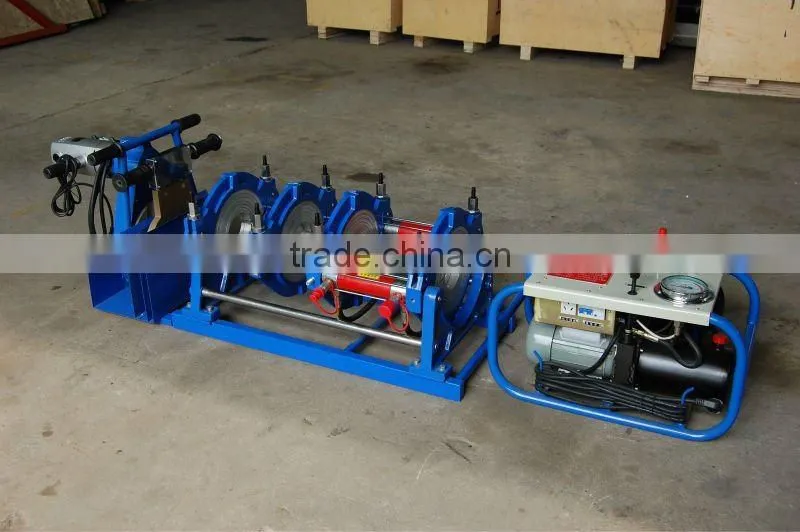

RDH250 Butt Welder Pictures:
Optional Parts:
1. Single-layer inserts
2. Aluminum Stub End Device
Company Profile:
Wuxi Yuda Plastic Pipe Welding Machinery Factory is an enterprise devoted to plastic pipe welding technology and research, design, manufacture, sales, training and maintenance of plastic pipe welding equipment, providing the customers with full and best service. Our factory has a senior technical team engaged in plastic pipe welding technology research and design of welding equipment. The guideline of our enterprise is that customer’s need is our pursuit, the product quality is the life of the enterprise, enterprise's aim is to be world-famous. Our product category falls into RGH series multi-angle fitting welding machine, DQJ series multi-angle cutting machine, RDH series Hydraulic butt fusion welding machine, Controlling methods include hydraulically-controlled and automatically( numerically)-controlled. With the great efforts of all the staff, all types of machines will be gradually be becoming perfect. At present, the following models are available: RDHS160 and RDHS200 manual butt fusion machine, RDH160~RDH2000 Hydraulic butt fusion machine, RGH315~RGH1200 multi-angle fitting welding machine, DQJ315~DQJ1200 multi-angle cutting machine, RDH-JL160~RDH-JL1600 Automatic butt fusion machine (with data logger and printer function). Full-automatically & numerically controlled welding machine, which is called RDH-AUTO series; numerically-controlled multi-angle fitting welding machine, which is called RGH-AUTO series and numerically-controlled multi-angle cutting machine, which is called DQJ-AUTO series will be brought to the market soon
