Specifications
plastic fabric welding1. ISO and CE
2. Suitable for PE, PP, PVDF pipes
3. best service and best quality

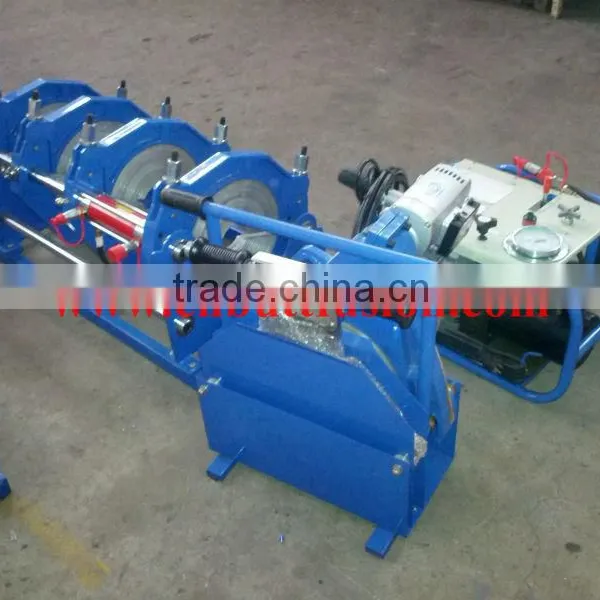

RDH315 Hydraulic HDPE fusion machine welder for plastic fabric welding
PE Pipe Welding Machine, But Fusion Welding Machine, Hotmelt Welding Machine, Hydraulic butt
fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine.
Butt fusion Equipment, HDPE fabric welding, fusion machine welder. plastic fabric welding
Application for RDH315 Hydraulic HDPE fusion machine welder for plastic fabric welding :
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any
complex working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Introduction for RDH315 Hydraulic HDPE fusion machine welder for plastic fabric welding :
1), Four main clamps made of light weight alloy.
2), Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
3), Safety switch enables the trimmer to start only when it is located in the operation position.
4), A mechanical lock excludes the disengagement of the trimmer during the operation
5), Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
6), Low temperature difference in heating plate surface, within 5 degree
7), Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
8), Imported oil seal & Italian quick couplers
9), Fine operation panel with clearly strong meshing printing characters.
Optional Parts:
* Aluminum Stub End Device
* Hoist and Electric Crane
Detailed Product Description
1,Suitable for PP/PE/PVDF Pipe
2,Hydraulic Control
3,CE and ISO9001 Certification
4,Good Sales Serive and Best quality
5. Advanced Technology
Components For RDH315 Hydraulic HDPE fusion machine welder for plastic fabric welding

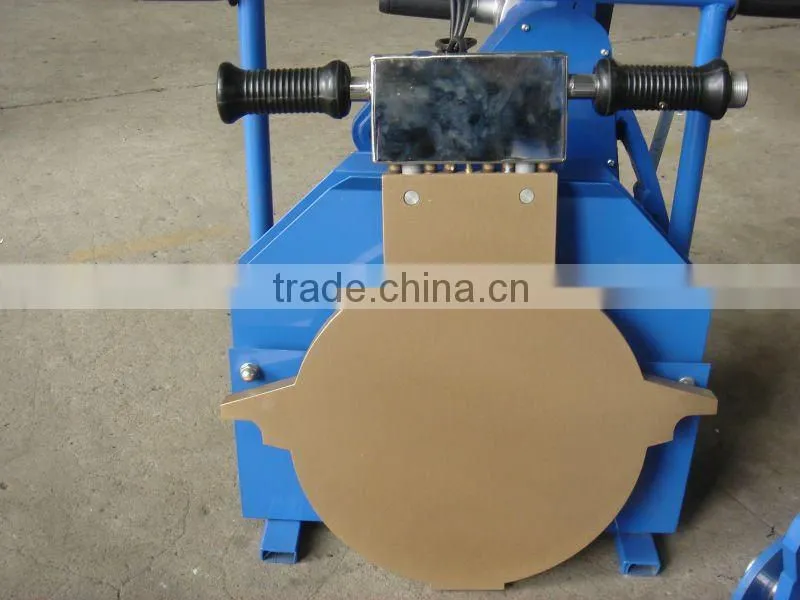

1. Heating Plate

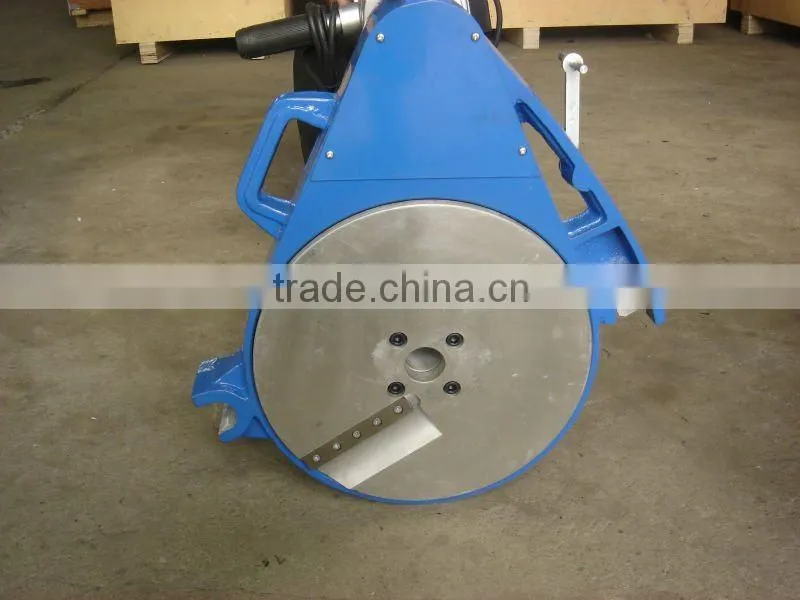

2. Trimmer

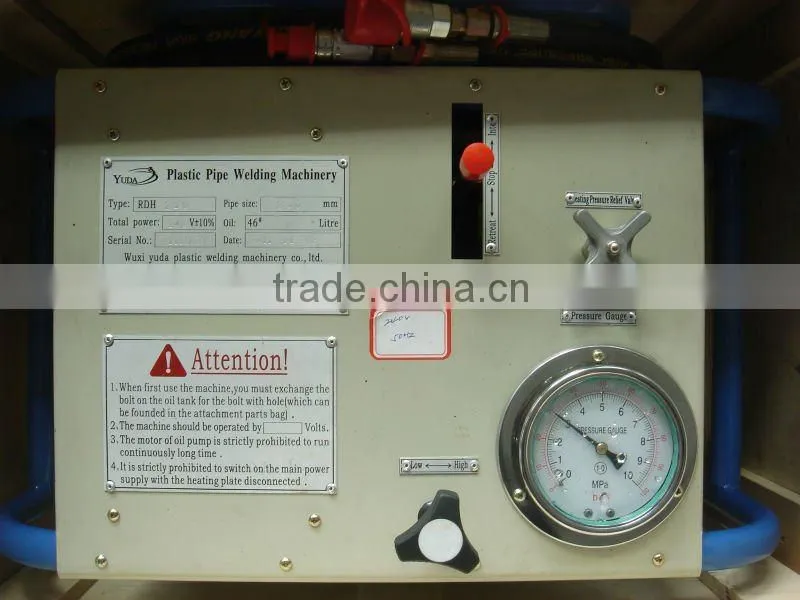

3. Hydraulic Unit

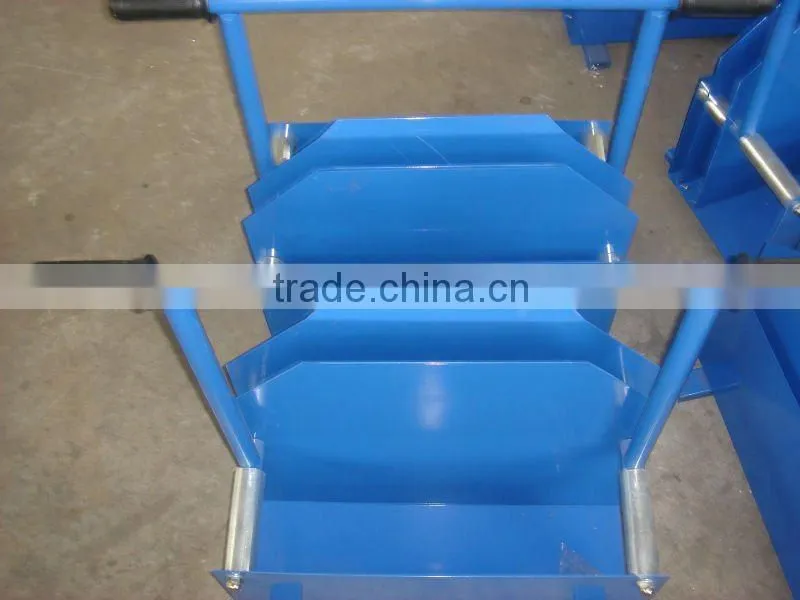

4. Support

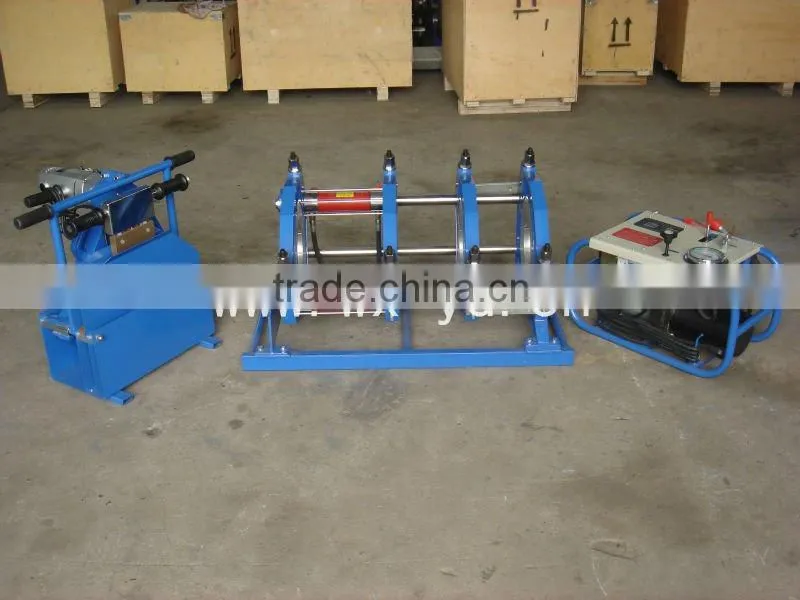

5. Whole Machine
Additional Tools to choose:
1. Bead Remover

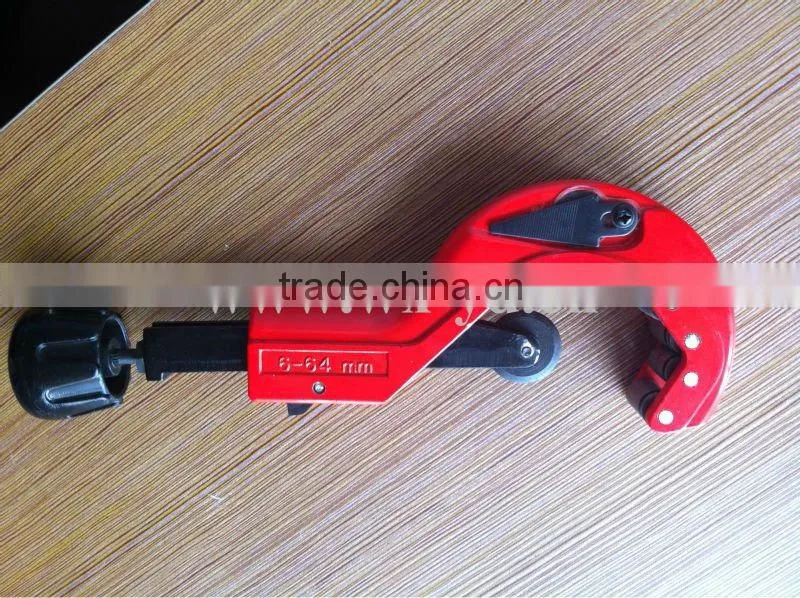

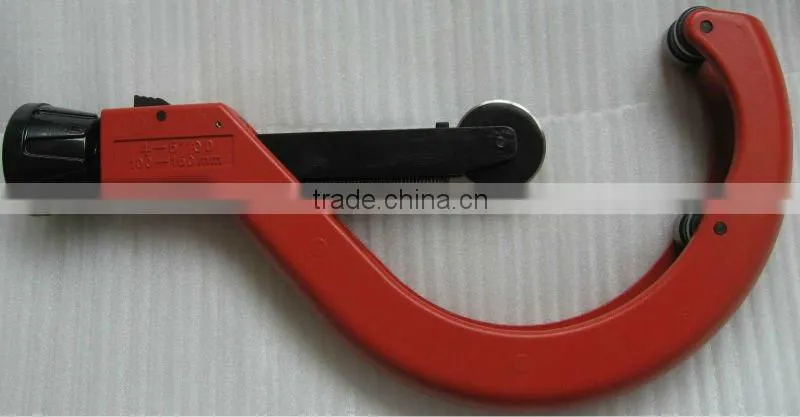

2. Pipe Cutter

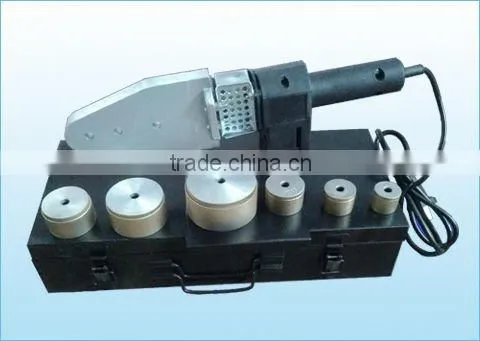

3. Socket Welder
4. Roller Support
