Specifications
RDH800 Plastic Welder1. welding range : 400mm~ 630mm
2.application: water,gas,irrigation
3. Weld PE, PP, PVDF pipes

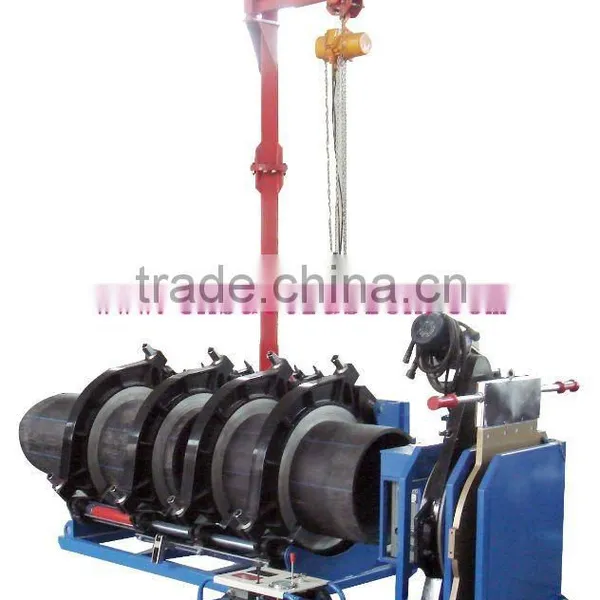

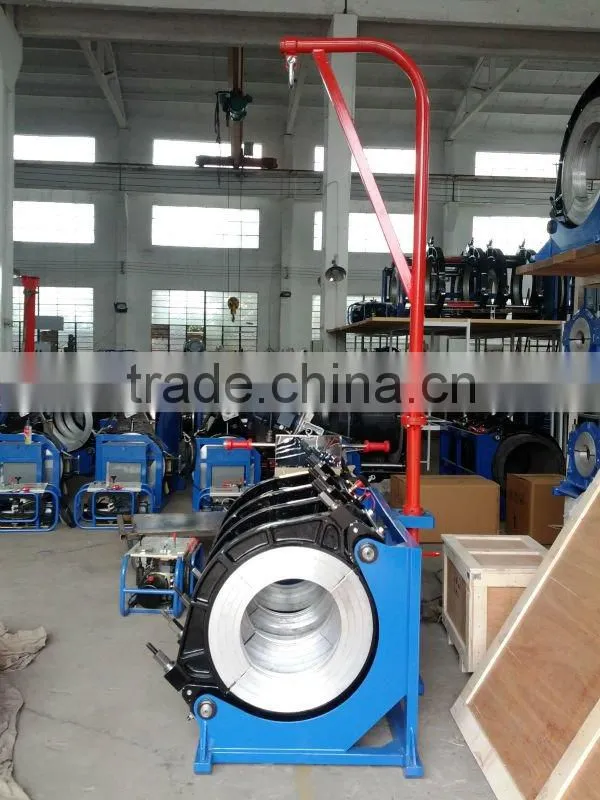

Plastic Welder
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex
working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Technical Specification :
Model: RDH 630
Pipe Size : 400,450,500, 560,630mm
Heating Pltae Max. Temperature: 270°C
Temperature Variation in surface(170°~250°): <±7°C
Pressure adjustable range: 0~6.3Mpa
Working Voltage: 380V, 50HZ ( 220V, 60HZ/50HZ , three -phase avaiable)
Heating plate power: 9.2KW
Trimmer Power: 1.5KW
Hydarulic Power:1.5KW
Total power: 12.2KW
