Specifications
RDH315 polyethylene pipe welding machine1.welding range : from 160mm~ 315mm
2.one year warranty
3 CE and ISO9001 certificate
RDH315 polyethylene pipe welding machine
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment
Application:
RDH315 polyethylene pipe welding machineSuitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
Brief Introduction for Polythylene Pipe Welding Machine
1), Four main clamps made of light weight alloy.
2), Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
3), Safety switch enables the trimmer to start only when it is located in the operation position.
4), A mechanical lock excludes the disengagement of the trimmer during the operation
5), Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
6), Low temperature difference in heating plate surface, within 5 degree
7), Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
8), Imported oil seal & Italian quick couplers
9), Fine operation panel with clearly strong meshing printing characters.
RDH315 polyethylene pipe welding machine
Welding ranges |
160mm-180mm-200mm-225mm-250mm-280mm-315mm |
Ranges of application |
PE,PP and PVDF |
Working voltage |
~220V ±10%,50Hz |
Environment temperature |
-10° ~ 45° |
Total power |
planing tool:1.1 kW, heating plate: 3.1 kW , hydraulic unit motor: 0.75kW
|
components |
basic frame, heating plate, planing tool, and support (for planing tool & heating plate) |
heating plate characteristics |
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°. |
Other device |
Electronic count-down timers for heating and cooling time. |
Components:

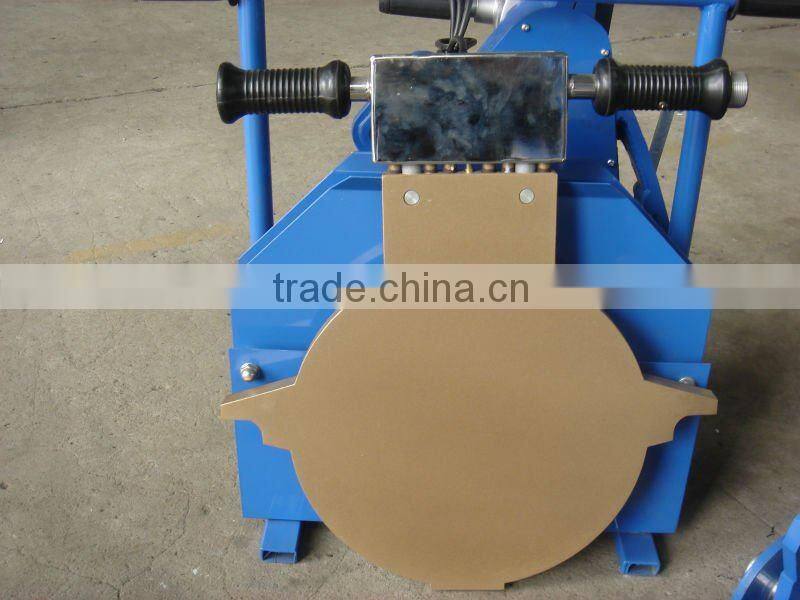

1. Heating Plate

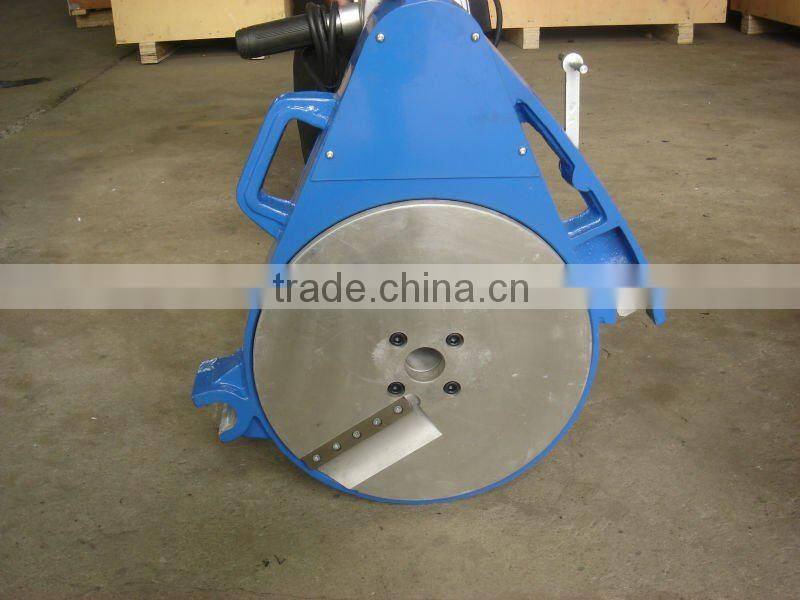

2. Trimmer

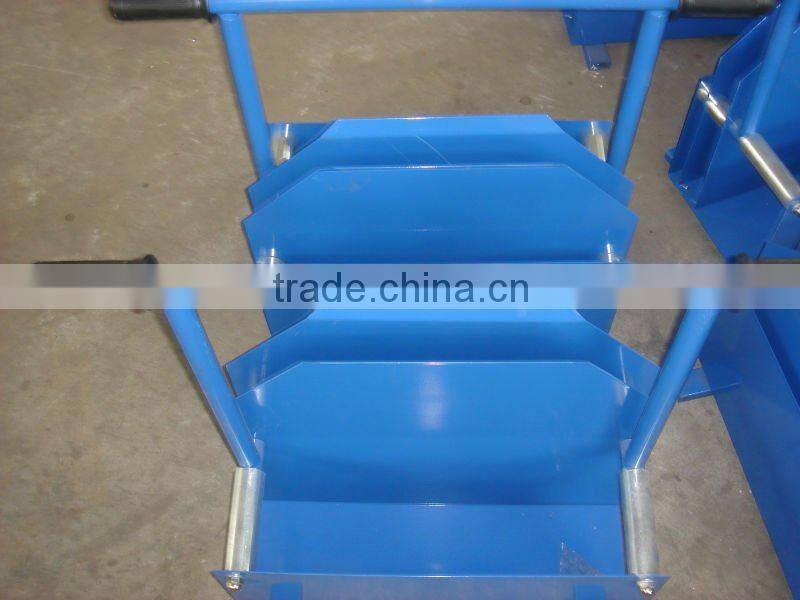

3. Support

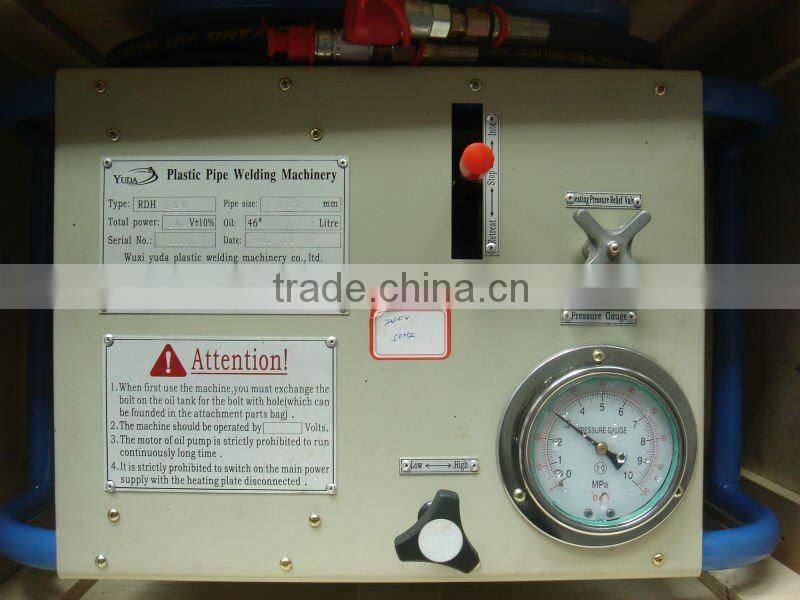

4. Hydarulic Unit

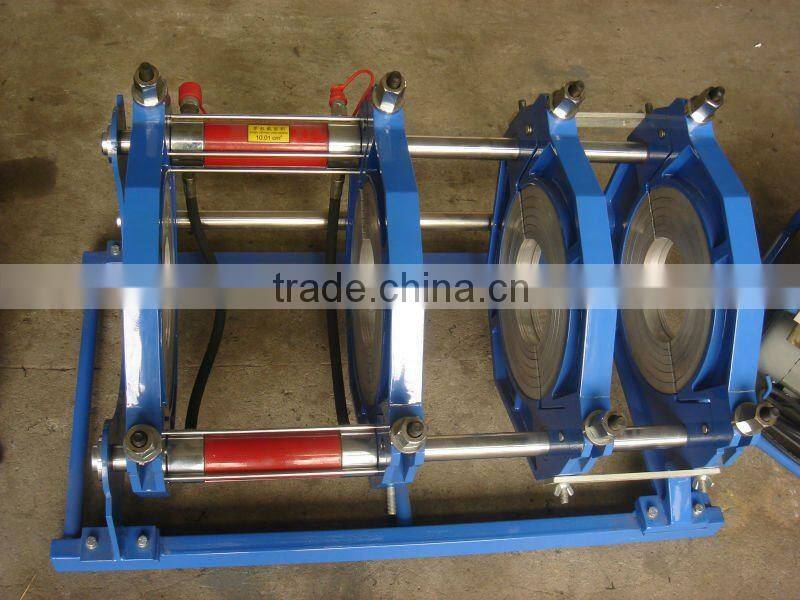

5. Basic Frame

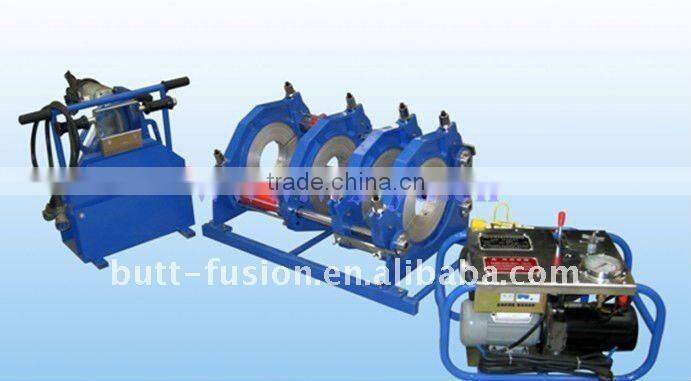

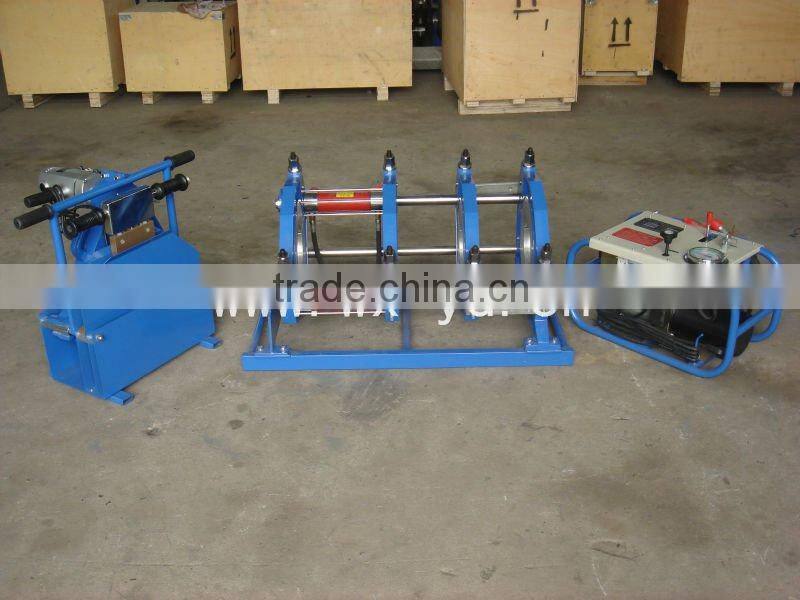

Whole Machines:

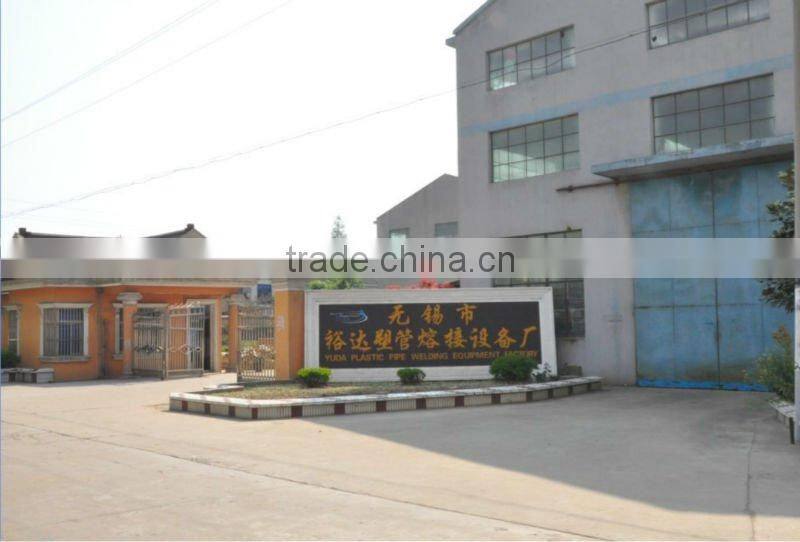

Factory Picture:
