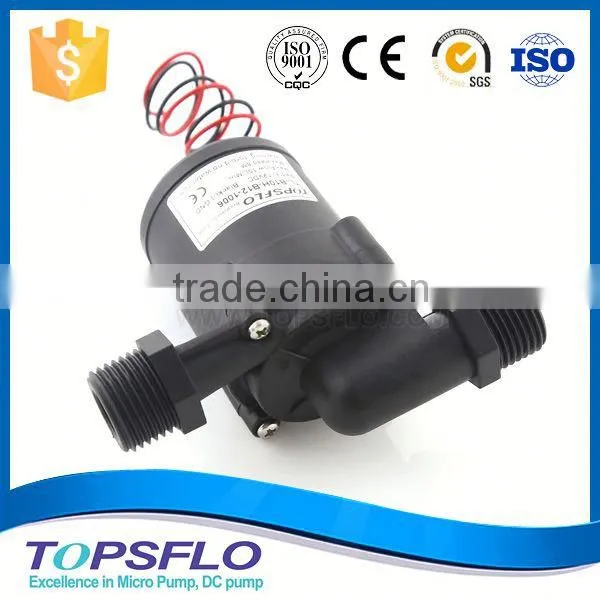

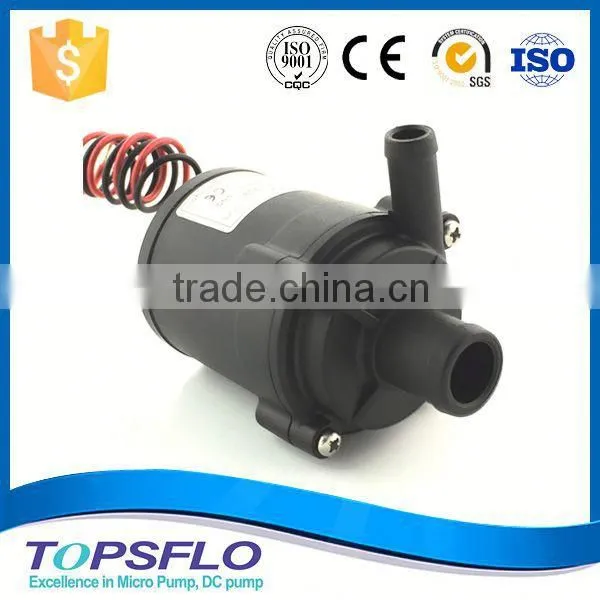

Brushless dc 12v 24v pump for water cooler dispenser parts
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TL-B10H |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Other, Standard or Customized | Fuel: | Other, DC power, Battery, Solar panel |
Pressure: | Other, 9L 5M 12V 24V | Application: | Other, Liquid transfer or circulating,hot water circulating |
Product Description
Brushless dc 12v 24v pump for water cooler dispenser parts
You may interest product....
Max Flow Rate | 7L/min 9L/MIN 12L/MIN |
Max Static Lift | 3M 5 M 8 M |
Rated Voltage | 12V / 24V |
Impeller Type | Closed impeller |
Motor Type | brushless DC motor |
Liquid Temperature | 0-100°C |
Pump Theory | Centrifugal pump |
Ambient Temperature | -10-50°C |
Media | Pure Water |
Waterproof Class | IP42 or Submersible (optional) |
Use Place | Indoor Outdoor |
Working Voltage Range | 6~14V or 12~26V |
Power Consumption | 1~31W |
Noise Class form 1M | 40dB /Max |
Ideal Life Time | 20000 Hours |
Working Mode | Continuous |
OD of Inlet | 18 mm |
OD of Outlet | 10.8 mm |
Dimension | 81.9x46.31x61.36 mm |
Power Supply | DC power supply, battery, solar powered |
Protection Functions | 1. Polarity protection 2. Blocked protection |
Remarks | Can’t dry-running, not Self-priming |
customized functions
| 1.submersible lar panel driven directly |
The technical parameters above is only for your reference, for more details , please feel free to contact us. |
Typical Applications
• Household battery water pump
• Water dispenser, Water Coolers
• Automotive air conditioning
• Carbonation, Coffee Maker, Beverage Dispenser
• Air-conditioner Drain
• Chillers, Cooling Circulation, Beer Brewing Chillers
• Home Appliance Boosting
• Solar Applications
More
1. Liquid transfer general purpose pumping 2. Water heating mattress
3. Hot water circulating system 4. Electronics Cooling Water Circulation Systems
5. Circulating systems for homes, RV's and boats
6. Cleaning equipment, purification and water treatment
7. Fountain, aquariums and small fish ponds, 8. Electric cars: radiators, heaters
1.Advanced magnetic driving technology for static-seal, without any leakage forever
2.Motor widely voltage designed suitable for battery power supplying with peak-low voltage damply
3.Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
4.Heavy duty work, can sustain continuous 24 hours work
5.Special designed high efficiency closed-type impeller
6.Sustain 100°C hot water circulation
7.All wetted materials FDA approved to be safety usage
8.Low or no maintenance
9.Blocked protection
10.Polarity protection
Brushess Mini DC water pumps work Note:
1. Power to DC Power Supply, reverse polarity is strictly prohibited, generally red positive power supply, black to negative
2. pumps in addition to immersible work can be identified, the rest can not be immersed in water, or they will cause a short circuit burned.
3. pumps is prohibited by the strong shock, fall from a height on the ground and other external damage.
4. pumps can not take strong acid and other corrosive liquids and granular solids with a tiny hard. Can not cycle more thick viscosity liquids, such as oil, high concentrations of oil and other fluids vast.
5. pumps was not long-time stall, causing the motor burned.
6. pumps can not withstand high voltage shock.
Customers how to choose the pump
1. first determine the voltage, current,water head and flow, diameter size, pump water head is generally the subject of the water does not flow when pumped up to the static head, if a customer requires pumping the water to a certain height and then to maintain a certain water flow, select the desired water head must be higher than the specified pumping height. This specific by the supplier according to the actual conditions. Can refer to lift flow graph.
2. to determine the dimension and form (threaded interface, inlet and outlet orientation, aperture size, etc.)
3. to determine the job requirements (temperature, medium, work time and frequency)
4. to determine the functional requirements (time control, pressure control, flow control, speed, etc.)
