Help Center12v 24v dc Brushless Mini Silent Pump for Coin Operated Juice Vending Machine
Related Products
-
Long Lifetime DC Silent Juicer PumpNegotiableMOQ: 100 Pieces -
12V DC Brushless Beer Chillers PumpNegotiableMOQ: 200 Pieces
-
12V 24V DC Brushless Centrifugal Filter Coffee Maker PumpUS$ 17 - 18MOQ: 500 Pieces
-
Long Lifetime DC Silent Drinking Water Treatment System PumpNegotiableMOQ: 100 Pieces
-
12v 24v dc Brushless Mini Silent Pump for Automatic Coffee MachineNegotiableMOQ: 100 Pieces
•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

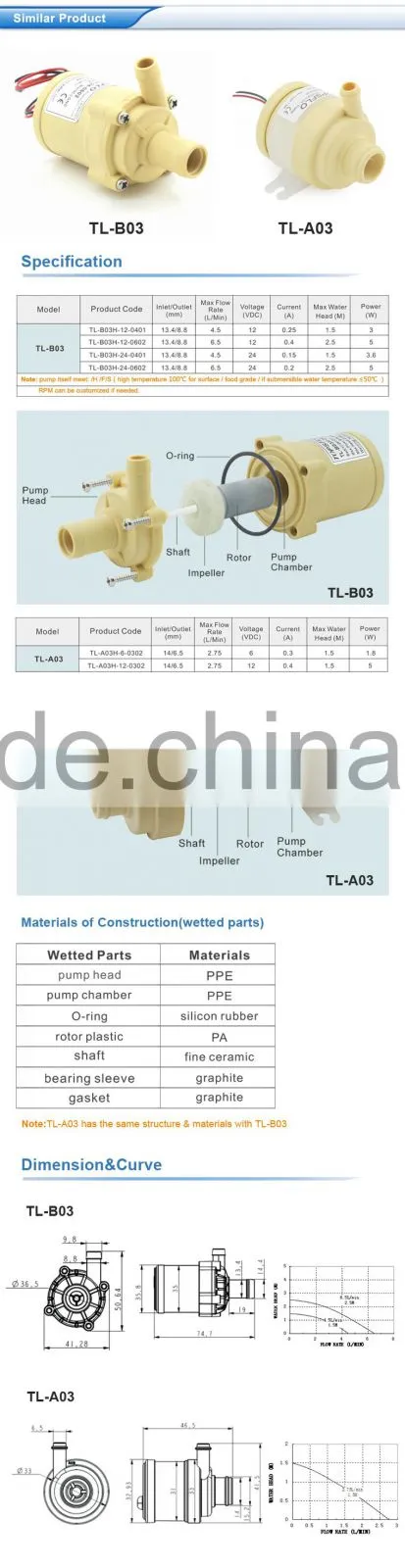

| Max Flow Rate | 2.75L/MIN (165L/H) |
| Max Static Lift | 1.5 M |
| Rated Voltage | 6V 12V |
| Impeller Type | Closed impeller |
| Food Grade(Y/N) | Y |
| Liquid Temperature | 0-100°C |
| Pump Theory | Centrifugal pump |
| Motor Type | Brushless DC motor |
| Ambient Temperature | -10-50°C |
| Media | Pure Water |
| Waterproof Class | IP42 |
| Use Place | Indoor |
| Working Voltage Range | 9~14V |
| Power Consumption | 5W |
| Noise Class form 1M | 35dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet | 14 mm |
| OD of Outlet | 6.5 mm |
| Dimension | 46.5x33x41.5 mm |
| Weight | 80 g |
| Power Supply | DC power supply, battery, solar powered |
| Remarks | Can’t dry-running, not Self-priming |
Typical Application
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
|
