24V DC brushless centrifugal Brass/stainless steel food grade beer transfer pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TD5 |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery, Solar panel |
Pressure: | High Pressure | Application: | Other, Liquid transfer or circulating |
Product Description

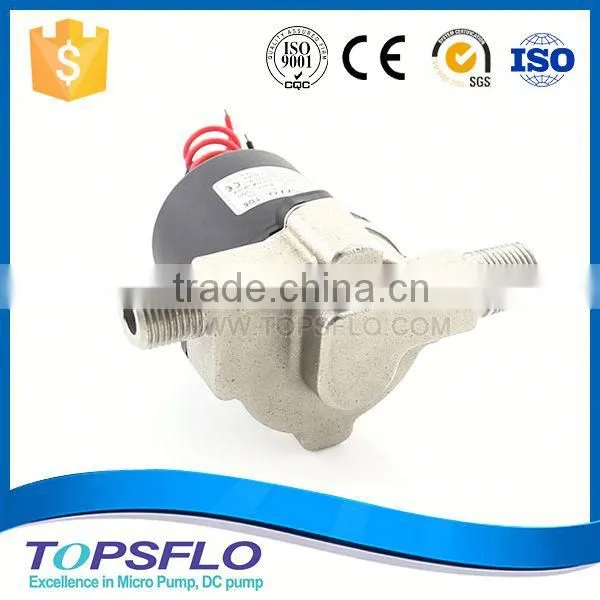

24V DC brushless centrifugal Brass/stainless steel food grade beer transfer pump
Cleaning
The head of the pump is made completely of stainless steel to reduce the risk of contamination.
1. Your regular cleaning should be to simply flush the pump with warm water or warm water with PBW.
2. If you feel that a deep cleaning is needed, the head of the pump can be removed completely by removing the 4 screws on the back of the pump.
3. After removing the head from the main body of the pump you will find 4 screws attaching the head to the impeller housing. These can be removed to open the impeller housing of the pump. Now each part can be soaked as needed.
4. To reassemble please refer to the Structure diagram as above.
Warning
This pump is not self priming. Do not run dry. This Pump will start running when plugged in.Only use with the provided 24V DC power supply. Using the TD5 with another power supply may shorten the life of the pump.
Features:
High effeciency, max flow rate up to 27LPM / 7GPM & head 5M /19FT
Can continuous working 24hours a day, long lifetime 20000hours
Good heat releasing, less temperature rise
Advanced magnetic driven technology, no leak forever
Blocked-Protection protection,Polarity Protection, Over-voltage protection
Model | Product Code | Max Water Flow (L/Min) | Rated Voltage (DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) | Adaptor Type |
TD5 with adaptor | TD5-A24-2705-P/US | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | USA |
TD5-A24-2705-P/UK | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | UK | |
TD5-A24-2705-P/EU | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | European | |
TD5-A24-2705-P/AU | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | Australia | |
Note: "P" means DC adaptor power supplying transformer, "US/UK/EU/AU" means adaptor type | |||||||
TD5 without adaptor | TD5-A24-2705 | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | / |
TD5-A24-2705 /5V | 27LPM / 7GPM | 24V | 1.4A | 5M /19FT | 35W | / | |
Note: TD5-A24-2705 is normal 2 wires type; TD5-A24-2705 is 3 wires with 0~5V speed control wire. |
Delivery time:
1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
