Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TD5 |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery, Solar panel |
Pressure: | High Pressure | Application: | Other, Solar Water Heating System,Hot Water Circulation,Radiant Floor Heating |
Product Description

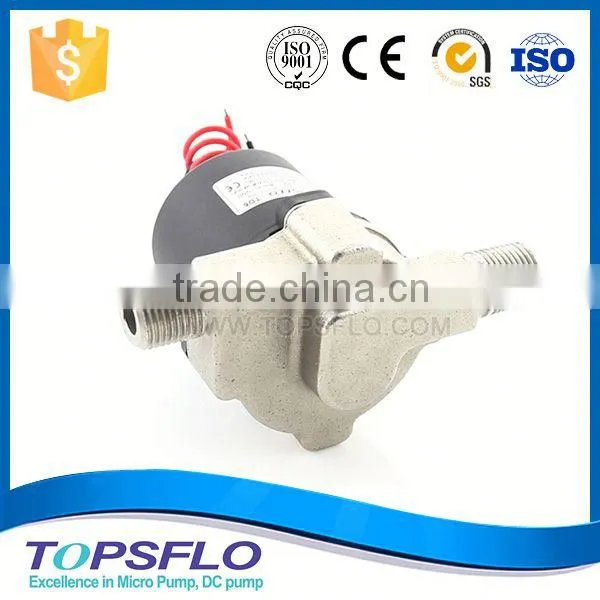

sun heater system pump
The most powerful and safe solar DC circulation pump for direct connection to photovoltaic panels
with automatic performance optimization using MPP technology. (Maximum Power Point tracking)
Feature
1. Directly connects to photovoltaic panel, start-up power requires less than 2 Watt
2. Ideal 5W, 10W, 15W, 25W power consumption optional for different sizes SWH systems
3. The exclusive food grade stainless steel solar DC hot water pump,keep far away Plumb danger more safe, protect your families' health
4. Operates on safe DC power, you will not expose yourself to hazardous grid power voltage
5. High efficient ECM brushless DC motor, ideal long life time 30000 hours
6. Advanced magnetic drive technology for static-seal,without any leakage for ever
7. Can run with hot water (230° F) and at high pressure(145 Psi)
Product Detail
Construction
Wetted parts are food grade stainless steel, food grade thermoplastic (Viton), carbon and ceramic for superior reliability and corrosion resistance.
Dry-running protection
Drive circuitry can detect no or little liquid in pump chamber and will stop/start the pump in cycles to detect, when there is water will resume normal operation in automatically.
Over voltage protection
When the voltage over 28V, the pump will auto-protect and shut off own power supply, when the voltage falls below 28V, the pump will restart automatically.
Specifications:
1 | Pump Theory | Centrifugal pump |
2 | Impeller Type | Half-Closed impeller |
3 | Motor Type | brushless DC motor |
4 | Ambient Temperature | -10-50°C |
5 | Liquid Temperature | 0-110°C |
6 | Media | Pure Water |
7 | Waterproof Class | IP42 |
8 | Use Place | Indoor |
9 | Rated Voltage | 17V |
10 | Working Voltage Range | 6~24V |
11 | Power Consumption | 5W 10W 15W 25W |
12 | Max Flow Rate | 20LPM / 5.3GPM |
13 | Max Static Lift | 4.5M/14.5' |
14 | Noise Class form 1M | 45dB /Max |
15 | Ideal Life Time | 30000 Hours |
16 | Working Mode | Continuous |
17 | Pipe Connections: | male ½" BSP or male ½" NPT |
18 | Maximum Working Pressure | 10bar (145Psi) |
19 | Weight | 860 g |
20 | Power Supply | DC power supply, battery, solar powered |
21 | Protection Functions | Over-voltage protection, overload protection, over-current protection, reverse polarity protection (optional) |
22 | Remarks | Can’t dry-running, not Self-priming |
Motor
DC brushless motor with energy efficiency technology |
Application
The TD5 solar DC pump can be used for most circulation pump applications without connection
to the power grid. Highly efficient, the TD5 can be connected directly to a photovoltaic panel and is
characterized by its small size, high efficiency, and extreme low power consumption. The long
life brushless motor technology provides maintenance free and quiet service life. This
pump is perfect for single family home thermal solar systems or any circulation pump application
where conventional power is not available.
Areas of Use:
• Solar Water Heating Systems • Portable power supplies
• Hot pump air conditioner • Air energy water heater
• Hot Water Circulation • Radiant Floor Heating
• Heat Transfer Applications • Cooling Systems
• Beer Brewing • Food Liquid Transfer
• Hot water Transfer Pump for Home Brewing • Portable power supplies
1. Standard Packing: 30 Inner boxes in firm carton,protected by pallets;Stand export packing,
2. OEM Packing
