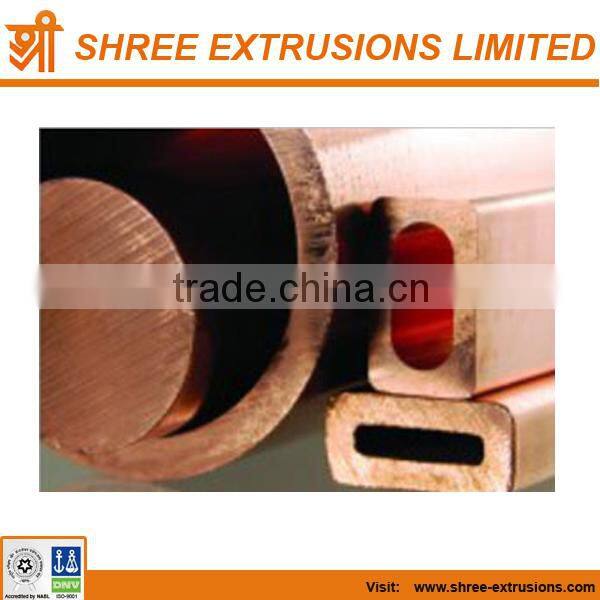

C11000 Electrolytic Tough Pitch Rods

C11000 Electrolytic Tough Pitch Rods thumbnail-1
C11000 Electrolytic Tough Pitch Rods photo-1
US$ 9 - 10 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Gujarat, India
Brand Name:
metal alloys
Model Number:
CNPC-Copper Powder
Contact Supplier Request Quote Chat Now
Shree Extrusions Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Mundra
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Gujarat, India
Brand Name metal alloys
Model Number CNPC-Copper Powder
Application Electrical Conduction
Weight Specification
Dimensions Thickness: 0.2-15mm
Grade Beryllium Copper
Alloy Or Not Is Alloy
Powder Or Not Is Powder
Cu Content (%) 15-20

C11000 Electrolytic Tough Pitch Rods



C11000 Electrolytic Tough Pitch Rods



C11000 Electrolytic Tough Pitch (ETP)






Spec Equivalents: CDA 110 ETP, ASTM B124, ASTM B152, ASTM B187, ASTM B188, ASTM B272

The electrolytic tough pitch copper is the copper with high thermal and electrical conductivity. The products manufactured using this copper possess good corrosion resistance and soldering ability. The inherited fabrication qualities of the copper allows it to bend, drilled, soldered, riveted and to be fit in to almost any design specifications. This variant of copper has excellent hot workability.

Applications:
  • Electrical Industry
  • Telecommunications Industry
  • Architectural Industry
  • Antimicrobial Applications



Equivelent Specifications:
End ProductSpecification
Bands, Projectile RotatingMILITARY MIL-B-20292
BarASME SB133, ASTM B152, SAE J461, J463
Bar, BusASTM B187
Bar, ForgingASTM B124
BoltsASTM F468
Brazing Filler MetalFEDERAL QQ-B-650
Foil, Printed CircuitsASTM B451
For, ForgingASTM B124
Forgings, DieASTM B283
NutsASTM F467
Pipe, BusASTM B188
PlateAMS 4500, ASTM B152, SAE J461, J463
RodASME SB133, MILITARY MIL-C-12166, SAE J461, J463
Rod, BusASTM B187
ScrewsASTM F468
ShapesSAE J461, J463
Shapes, BusASTM B187
Shapes, ForgingASTM B124
SheetAMS 4500, ASTM B152, B694, SAE J463, J461
Sheet, Building ConstructionASTM B370
Sheet, CladASTM B506
Sheet, Lead CoatedASTM B101
Sheet, Printed CircuitsASTM B451
StripAMS 4500, ASTM B694, B152, SAE J463, J461
Strip, Building ConstructionASTM B370
Strip, CladASTM B506
Strip, Printed CircuitsASTM B451
StudsASTM F468
Tube, BusASTM B188
Tube, WeldedASTM B447
Wire, Coated With Lead AlloyASTM B189
Wire, Coated With NickelASTM B355
Wire, Coated With SilverASTM B298
Wire, Coated With TinASTM B246, B33
Wire, FlatAMS 4500, ASTM B272
Wire, Hard DrawnASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard DrawnASTM B2, FEDERAL QQ-W-343
Wire, MetallizingMILITARY MIL-W-6712
Wire, SoftASTM B3, B738, B48, FEDERAL QQ-W-343, SAE J461, J463
Wire, StrandedASTM B8, B496, B470, B286, B229, B226, B174, B173, B172, FEDERAL QQ-B-575
Wire, TrolleyASTM B47, B116

Chemical Composition:
 CuO
Min/Max99.90 min
Nominals-0.04

Fabrication:
Joining TechniqueSuitability
BrazingGood
Butt WeldGood
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingNot Recommended
Forgeability Rating65
Gas Sheilded Arc WeldingFair
Machinability rating20
Oxyacetylene WeldingNot Recommended
Seam WeldNot Recommended
SolderingExcellent
Spot WeldNot Recommended

Physical Properties:
Product PropertyUS CustomaryMetric
Coefficient of Thermal Expansion9.4 · 10 6? per °F (68-212 F)16.9 · 10 6? per °C (20-100 C)
Coefficient of Thermal Expansion9.6 · 10 6? per °F (68-392 F)17.3 · 10 6? per °C (20-200 C)
Coefficient of Thermal Expansion9.8 · 10 6? per °F (68-572 F)17.6 · 10 6? per °C (20-300 C)
Density0.322 lb/in3 @ 68 F8.91 gm/cm3 @ 20 C
Electrical Conductivity101%IACS @ 68 F0.591 MegaSiemens/cm @ 20 C
Electrical Resistivity10.3 ohms-cmil/ft @ 68 F1.71 microhm-cm @ 20 C
Melting Point Liquid US1981 F1083 C
Melting Point Solid US1949 F1065 C
Modulas of Elasticity in Tension17000 ksi117000 MPa
Modulas of Rigidity6400 ksi44130 MPa
Specific Gravity8.918.91
Specific Heat Capacity0.092 Btu/lb/°F at 68 F393.5 J/kg · °K at 293 K
Thermal Conductivity226.0 Btu · ft/(hr · Ft2 · °F) at 68 F391.1W/m · °K at 20 C

Sizes Available:
HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS8mm To 100 mm
HEX10mm To 60mm
SQUARE10mm To 60mm
FLAT10mm Min Thickness and max Width 120mm
BILLETSUp to 200 mm
INGOTSAs per Specification
