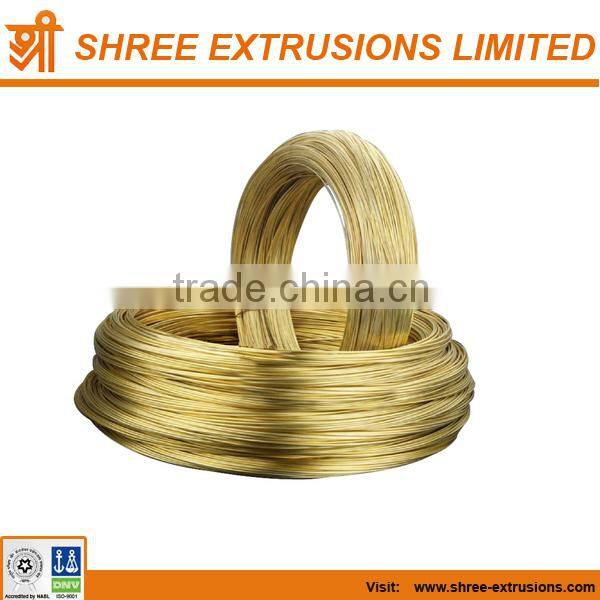

" Best Brass wires for hardware "
We offer a variety of Brass Wire, Brass Flat Wire, Square Brass Wire which are extensively used in automobile, electronic, electric & nipples. Our range of brass wire mesh is acclaimed for its durability, excellent performance and minimal prices.We also offer various other grades of Brass Wire like Riveting Brass Wire, Forging Grade Brass Wire, Free Cutting Grade, EDM Brass Wire, Lead Free Brass Wire - IS:2074, BS:2874 CZ119, IS:4170/75, CuZn38PB1, Free Cutting - BS249, IS:319 Gr. l & ll, IS:8364 Gr. l & ll, BS:2874 CZ121Pb3, CuZn39Pb3, Lead Free, IS4413, CuZn37, DTD-627, 60:40. .
| Chemical Requirements | Grade I | ||
| Copper | 56.0 - 59.0% | ||
| Lead | 2.0 to 3.50% | ||
| Iron | 0.35% max. | ||
| Total Imp. Excl. Iron | 0.70% max. | ||
| Zinc | Remainder | ||
| Physical Properties: | |||
| Condition | Size | T.S. MPA | EL% Min |
| Annealed (O) | 6-25 25-50 50 above |
345 315 285 |
12 17 22 |
| Half-Hard (HB) | 6-12 12-25 25-50 50 above |
405 395 355 325 |
4 6 12 17 |
| Hard (HD) | 6-12 12-25 |
550 490 |
- 4 |
| Fabrication Properties: | |||
| Capacity for being | |||
| Cold worked | Poor | ||
| Hot formed | Fair | ||
| Machinability Rating | 100% | ||
| Suitability for soldering | Excellent | ||
| Suitability for Brazing | Good | ||
| Uses | |||
| Precision Components, Hardware, Hinges, Lock Bodies, Screws, Nuts & Bolts | |||
| Chemical Requirements: | Grade II | Grade III | |||
| Copper | 60.0 - 63.0% | 60.0 - 63.0% | |||
| Lead | 2.50 to 3.70% | 0.50 to 1.50% | |||
| Iron | 0.35% max | 0.20% max | |||
| Total Imp. Excl. Iron | 0.50% max | 0.50% max | |||
| Zinc | Remainder | Remainder | |||
| Physical Properties | |||||
| Condition | Size | T.S. MPA | EL% Min | T.S. MPA | EL% Min |
| Annealed (O) | 6-25 25-50 50 above |
355 305 275 |
15 20 25 |
315 285 255 |
22 27 32 |
| Half-Hard (HB) | 6-12 12-25 25-50 50 above |
395 385 345 315 |
7 10 15 20 |
355 345 305 285 |
8 12 22 27 |
| Hard (HD) | 6-12 12-25 |
550 485 |
4 |
460 400 |
4 |
| Fabrication Properties | |||||
| Capacity for being | |||||
| Cold worked | Poor | Fair | |||
| Hot formed | Fair | Excellent | |||
| Machinability Rating | 90% | 80% | |||
| Suitability for soldering | Excellent | Excellent | |||
| Suitability for Brazing | Good | Excellent | |||
| Uses | |||||
| Gr II : Gear, Pinions, Precision, Automobile, Electronic Parts Gr III : Precision Components Machining with Riveting Operation | |||||
Riveting
- IS:2074
- BS:2874CZ119
- IS:4170/75
- CuZn 38PB1 / 1.5
Free Cutting
- BS249
- IS:319 Gr. l & ll
- IS:8364 Gr. l & ll
- BS:2874 CZ121Pb3
- CuZn39Pb3
About Us
Established in the year 1989, Shree Extrusions Limited has earned a prestigious position as a manufacturer, supplier and exporter of Extruded Profile in Non Ferrous Metals. Our never-ending list of products includes Aluminum Bronze Rods, Nickel Silver Wire, Aluminum Bronze, Copper Alloy and Brass Rod. Moreover, we also offer Brass Wire for Leaded Ball Pen Tip, Nickel Silver Wire for Ball Pen Tip, Brass Wire, Aluminum Silicon Bronze Rod and Naval Brass. We have been able to earn the accolades of many renowned organizations such as Govt. of India Ministry Defense, Hindustan Shipyard Ltd, Naval Dockyard and Ship Building Centre owing to the international level of quality.
Though, our products are acclaimed worldwide but we have built a strong client base in Asian Countries. Our well established infrastructural setup is located in Jamnagar, Gujrat. The use of latest technologies such as Spectrometers (spark as well as ERF X-Ray Fluorescence) and Electronic & Computerized UTM makes us offer world-class quality products. The entire range products offered by us are valued for its excellent performance, longer service life, economical prices and high tensile strength. These are mostly used in architectural fittings, hardware, electric components, forged components, industrial valves, defense components and pump rods. We fabricate our range of products using high-grade raw material such as virgin non ferrous metals, scraps and turning.
Our mentor, Shri Radheshyam L. Kabra has more than 35 years of experience in the domain, enabling him to proficiently manage our organizational activities. Under his able guidance, we have been able to achieve enviable market credibility.
We offer finest range of extruded non ferrous metals & metal profiles, which are appreciated all through the Asian countries. Due to hard-work and premium quality products, we have earned the certificates & approvals from the following prestigious organizations:
- Govt. of India Ministry Defense
- Our Laboratory has been approved by SQAE(AR), Mumbai
- Garden Reach Shipbuilders & Engineers Limited, Calcutta
- Material Organization Mumbai, Vishakhapatanam, Khambhalia
- Hindustan Shipyard Ltd., Vishakhapatanam
- Mazagon Dock Limited, Mumbai, India
- Naval Dockyard, Mumbai
- Ship Building Centre, Vishakhapatanam
Applications Areas
Our range of aluminium extruded profiles in non ferrous metals finds applications in various areas given below:
- Defense components
- Naval components
- Bearing cages
- Condensed components
- Marine hardware
- Propeller shaft
- Architectural fittings
- Hardware
- Electric components
- Forged components
- Industrial valves
- Pump rods
Along with the standard specifications, we also suffice custom order of clients to meet special applicability.
