USB Sticker Cutting Plotter With CE

Name: USB Sticker Cutting Plotter With CE
Brand: brightness
SKU: 121972861

US$ 260 - 288 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

brightness

Model Number:

LD-JK870

Shenzhen Brightness Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name brightness

Model Number LD-JK870

Specifications

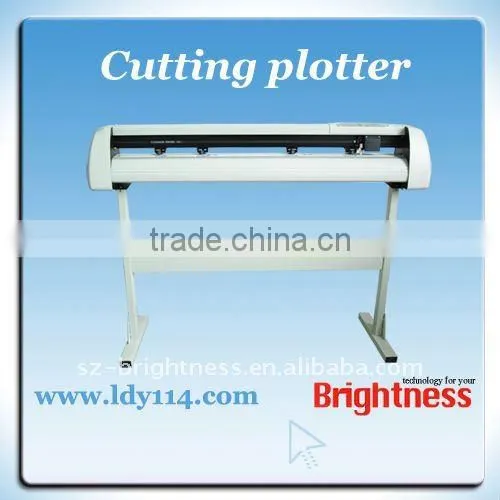

cutting plotter with CE
can adjust cutting force and plotting speed,double pressing strips for processing, high cutting speed

USB sticker cutting plotter with CE

Cutting materials :vinyl

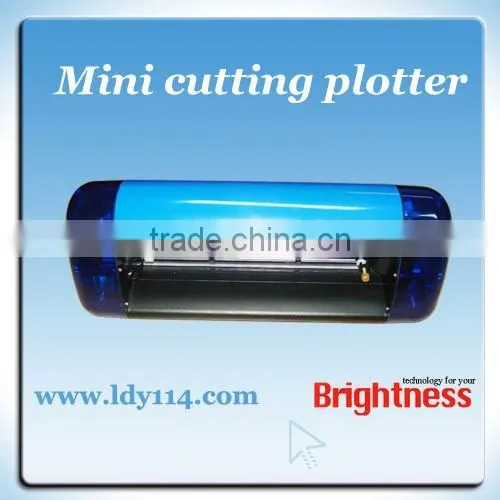

Cutting plotter with differnt size:

cutting size: A4, A3, 630mm, 780mm, 1010mm, 1260mm, 1660mm

Machine detalis
Model	Mini LD240	Mini LD330	LD720			LD870	LD1110	LD1350	LD1750
Max paper width	240mm	330mm	720mm			870mm	1110mm	1350mm	1750mm
Max cutting width	A4	A3	630mm			780mm	1010mm	1260mm	1660mm
Cutting speed	50-800mm/s
Cutting force	50-500g
Buffer capacity	1M
LCD	No			Yes
CPU	8-bit CPU
With bracket	No	No	No			Yes	Yes	Yes	Yes
Strip of plotter	Plastic sheet
Drive	Stepping
Maximum media thickness	0.25mm(10mlls)
Maximum cutting speed	40cm/s((17ips) in all directions
Maximum acceleration	4m/s²
Maximum character matrix	Approx 5mm(0.2") high
Blade type	Super steel (1.2mm)
Pen type	Water-base fibertip
Film type	Self-adhesive vinyl film, fluorescent film, reflective film, paper
Display panel	No				8 digits*2 line LCD
Offset	0-1mm
Interfaces	USB/Parallel serial
Power requirements	AC220V±10% or AC110V±10%
Power consumption	60W max
Repeatability	0.127mm
Mechanical resolution	0.0254mm/step
Commands set	DMPL
Environmental temperature	0-35°C
Environmental humidity	5%-65% (without condensation)
