Specifications
1 max cutting size:1260mm2 most cutting thickness:0.25mm
3 speed:50-800mm/s
4 drive:stepping
5 MOQ:1 set

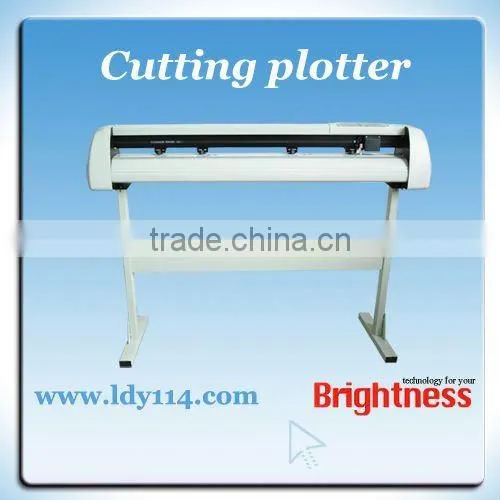

Hot sale,JK 1350cutting plotter with USB,CE approval
Cutting plotter with CE can adjust cutting force and plotting speed at any time ,double pressing strips for processing
size:720mm870mm1100mm1350mm1600mm 1750mm
Machine detail: | ||||||
Model |
LD720 |
LD870 |
LD1100 |
LD1350 |
LD1750 |
|
Max paper width |
720mm |
870mm |
1100mm |
1350mm |
1750mm |
|
Max cutting width |
630mm |
780mm |
1010mm |
1260mm |
1660mm |
|
Cutting speed |
50-800mm/s |
|||||
Cutting force |
50-500g |
|||||
Buffer capacity |
1M |
|||||
LCD |
No |
Yes |
||||
CPU |
8-bit CPU |
|||||
Strip of plotter |
Plastic sheet |
|||||
Drive |
Stepping |
|||||
Maximum media thickness |
0.25mm(10mlls) |
|||||
Maximum cutting speed |
40cm/s((17ips) in al directions |
|||||
Maximum acceleration |
4m/s² |
|||||
Maximum character matrix |
Approx 5mm(0.2") high |
|||||
Blade type |
Super steel (1.2mm) |
|||||
Pen type |
Water-base fibertip |
|||||
Film type |
Self-adhesive vinyl film, fluorescent film, reflective film, paper |
|||||
Display panel |
No |
8 digits*2 line LCD |
||||
Offset |
0-1mm |
|||||
Interfaces |
USB/Parallel serial |
|||||
Power requirements |
AC220V±10% or AC110V±10% |
|||||
Power consumption |
60W max |
|||||
Repeatability |
0.127mm |
|||||
Mechanical resolution |
0.0254mm/step |
|||||
Commands set |
DMPL |
|||||
Environmental temperature |
0-35°C |
|||||
Environmental humidity |
5%-65% (without condensation) |
|||||
Description:
1. The appearance design of the patent, streamlined fuselage, carry the putting type control panel, easy to operate, elegant appearance.
2. Adopting new microstep to subdivide algorithms, being in highly cutting quality while cutting at a high speed, the curve is smooth and more evasive.
3. Software has the capacity to adjust the cutting precision to solve and prolong the inconsistent problems of size differently when all kinds of materials of malleability are cut.
4. Improve shock attenuation and subdue the sound device, reduce the noise further, but the power of the motor is not reduced.
5. Advanced industrial aluminium alloy fuselage, the surface is not worn and torn to fade through special-purpose processing.
6. Pairs of layering pairs of knife location, besides layering originally, set up half hob one, can is it is it carry heat of adhesive tape is it print paper, clothing pattern etc. to transfer to to have to cut.
7. Leather card special purpose interface software, can accept AUTOCAD, CORELDRAW file that software output, can establish partial is it compensate with the corner compensating to close, needn't carve characters software can carve characters directly specially.
8. Passing national security, performance and environment test in an all-round way, performance is more reliable.
rip software:Artcut
Roland blade for cutting plotter
