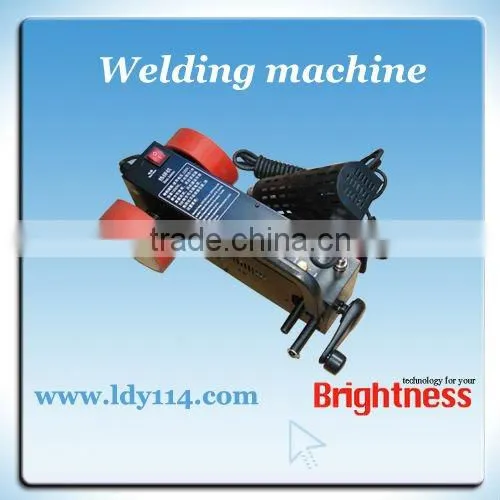

Help CenterHot Air Flex Banner Welding Machine
Related Products
-
Outdoor Automatic Banner Welding Machine Without GlueUS$ 348 - 378MOQ: 1 Set -
Hot Air Poster Pvc Banner Welding Machine PortableUS$ 280 - 388MOQ: 1 Set
-
Sapiential Pvc Flex Banner Welder Made in ChinaUS$ 238 - 280MOQ: 1 Set
-
Poster Welding MachineUS$ 200 - 235MOQ: 1 Set
-
Banner Weldine Machine , Poster Jointer MachineUS$ 338 - 348MOQ: 1 Set
Specifications
hot air welding machine1.Automatic and adjust wind power
2.Energy saving, economical and practical
3.Welding width:2-5cm
Hot air flex banner welding machine parameter:
1) Alternant electric voltage: 220V/50Hz;
2) Upper limit power: 2000W, average 800W;
3) Adjustable work temperature: 50-600°C;
4) Adjustable: self-move speed 0.8-15M/per minute;
5)Specification: 450*310*320mm
6) Whole weight: 10 kilogram;
7) Splicing width: 2-5cm.
Portable hot air flex banner welding machine specification:
1.The wind power can adjust, if you weld thick flex, choose high wind power; if you weld thin flex, then choose low wind power
2.It can turn off automatic when no people operate. If no work in 15minutes, it will turn off the heater at first, and after more 3 minutes, it will turn off the power automatic.
3.automatic control by itself
4.The price of this machine is economical and practical.
5. Movable, low volume
6. Not affected by the low temperature.
Application:
laminate and bond up disjunct flat painting surface made of heat-melted
material, such as outdoor advertising poster, PVC cloth & PE fabric Canvas, outdoor
poster banner, plastic surface, Sailcloth etc.
When use:
1) Immobilise both ends of each disjunct poster surface with something
such as stick belt or clamp, and leave about 30-40mm wide overlap edge on each
disjunct poster surface edge;
2) Turn on the machine, prepare warm up about 2 minutes;
3) Bring up the machine, and place the roll at the end of the overlap edge;
4) According to quality and thickness of the poster surface material, consider the
ground circumstance, adjust the proper temperature and speed, handle the Fuse
machine Gun down and insert it between the two poster banner edges, then the
machine start running, after go pass the overlap edge, the two disjunct banners
will be well joined in one.
