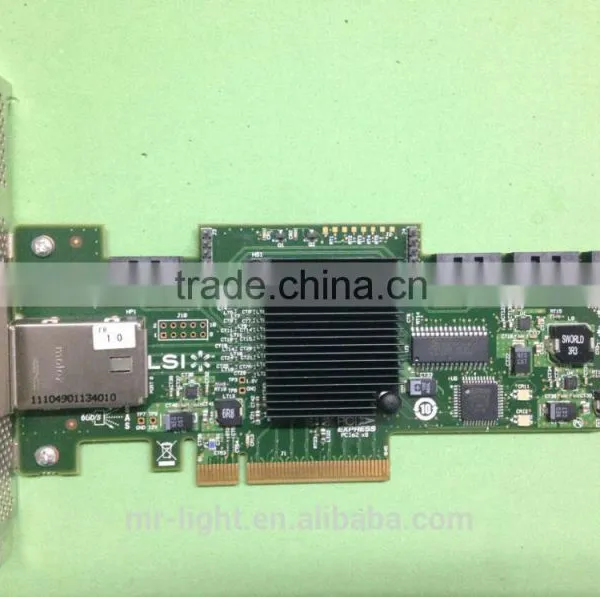

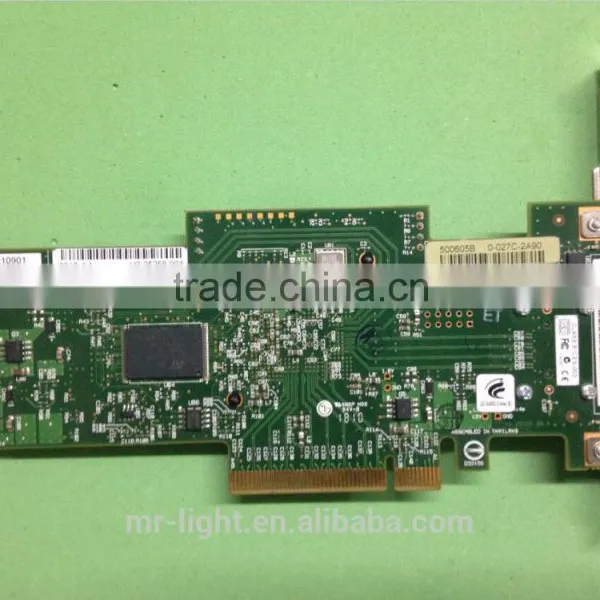

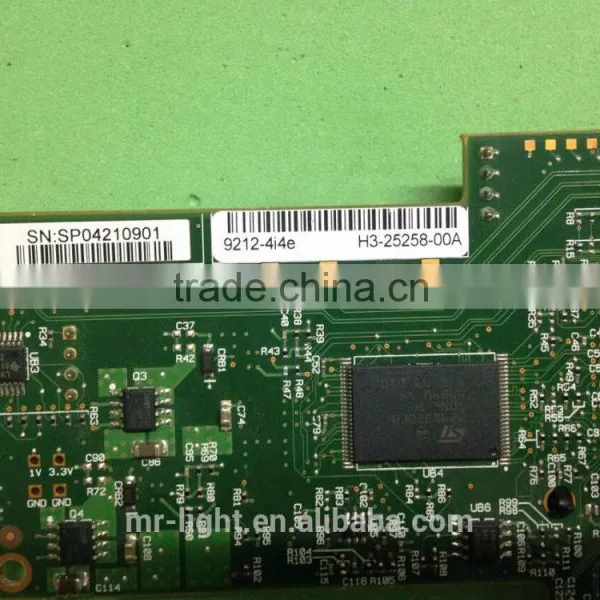

LSI SAS 9212-4i4e 8-port, 6Gb/s SAS+SATA to PCI Express Host Bus Adapter

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Model Number:

9212-4i4e

Type:

Other

Brand Name:

lsi

Shenzhen Mingrui I/E Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number 9212-4i4e

Type Other

Brand Name lsi

Place of Origin Guangdong, China

LSI SAS 9212-4i4e Host Bus Adapter Specifications
IO Controller	LSI SAS2008/ Fusion MPT 2.0
Storage Connectivity ; Data Transfer Rates	8 ports, 6Gb/s SAS 2.0 Compliant
SAS Bandwidth	Half Duplex 600 MB/s per lane
Port Configurations	4 ea, x1 internal ports (individual drives) 4 ea, x1 external ports 1ea, x4 external wide port
Host Bus	x8 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates	Half Duplex x8, PCIe, 4000 MB/s
Physical Dimensions	Low Profile (2.6" x 6.6")
Connectors	Four x1 internal SATA , One x4 external mini-SAS (SFF8088)
Cable Support	Passive Copper
Host Bus Type	x8 lane, PCI Express 2.0
PCI Card Type	3.3 V Add-in Card
Operating Voltage	+12V +/-8%; 3.3V +/-8%
PCI Power (Nominal)	9W typical (Airflow min 200 LFM)
Device Support	256 Non-RAID SAS/SATA devices
Integrated RAID (IR)	RAID 0 RAID 1 RAID 1E RAID 10
Environmental		Operating 0oC to 55oC 5 to 90% Non-condensing	14 spread across 2 volumes 10 per volume 2 per volume plus hot spare 10 per volume 10 per volume
