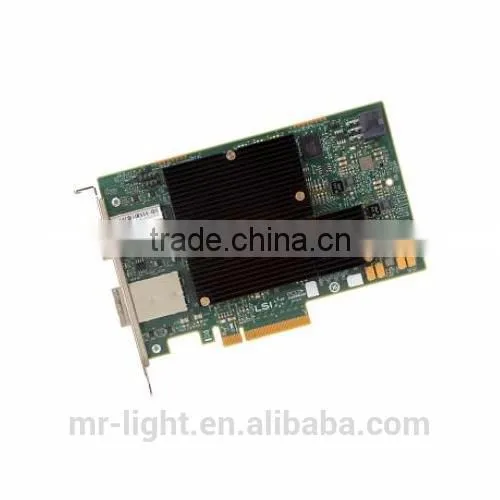

LSI SAS 9300-16e 16-Port, 12Gb/s SAS+SATA to PCI Express Host Bus Adapter

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Model Number:

9300-16e

Type:

Other

Brand Name:

lsi

Shenzhen Mingrui I/E Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number 9300-16e

Type Other

Brand Name lsi

Place of Origin Guangdong, China

Features:

16 external 12Gb/s SAS+SATA ports
8 lanes, PCI Express 3.0
Four x4 external - mini-SAS HD connectors (SFF8644)
Two LSISAS3008 12Gb/s SAS+SATA Controllers
Supports up to 1024 Non-RAID SAS or SATA end devices per controller
Supports SSDs, HDDs (external SAS JBOD) and tape drives (in an external enclosure)
High performance with 12Gb/s data transfer rates with full size form factor
8 lanes of PCI Express 3.0 provides faster signaling for high-bandwidth applications

Technical Information:

Physical Dimensions	4.4" x 6.6"
SAS Bandwidth	Half Duplex (x4 wide bus) 4800 MB/s
Port Configurations	16 ea, x1 ports (individual drives) 4 ea, x4 wide ports 2ea , x8 wide ports
Connectors	Four (x4) mini-SAS HD external connector (SFF8644)
Brackets	Full Height
Cable Support	Passive Copper, Active Optical
Device Support	1024 Non-RAID SATA/SATA devices per controller
Environmental	Operating: 0Â°C to 55Â°C Storage: -45Â°C to 105Â°C 5 to 90% Non-condensing Airflow: 200 LFM
Host Bus	x8 lane, PCI Express 3.0 compliant
Storage Connectivity Data Transfer Rates	16 ports; 12Gb/s SAS 3.0 compliant
PCI Data Burst Transfer Rates	Half Duplex x8, PCIe, 8000 MB/s
I/O Controller	Two, LSISAS3008/ Fusion MPT 2.5
PCI Power (Nominal)	28.6W
Operating Voltage	+12V +/-8%; 3.3V +/-9%
MTBF	>1,500,000 hours
Regulatory Certifications	EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support	Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD
