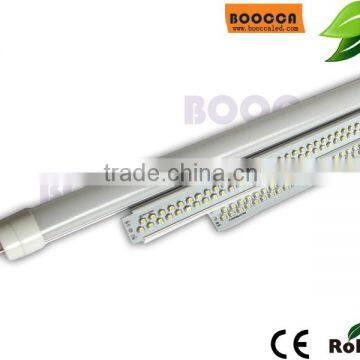

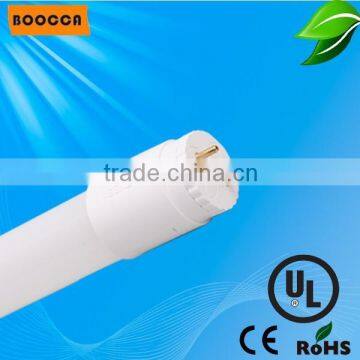

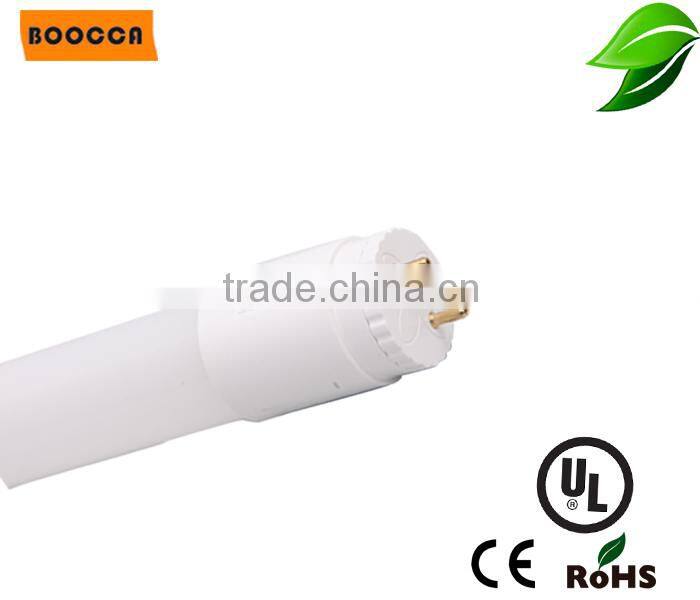

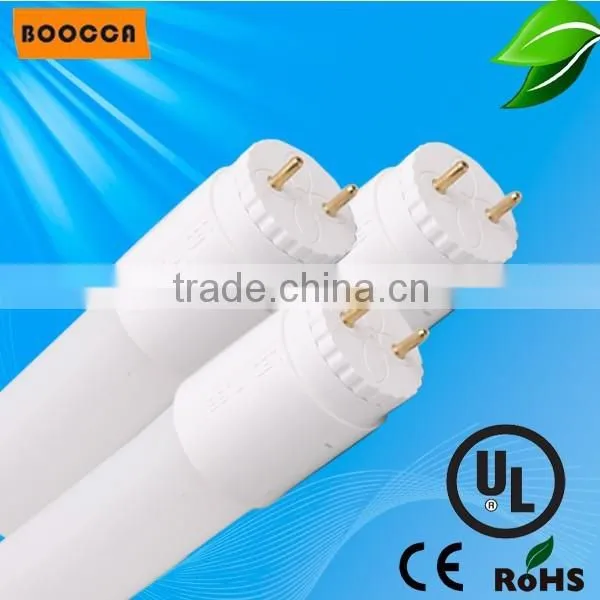

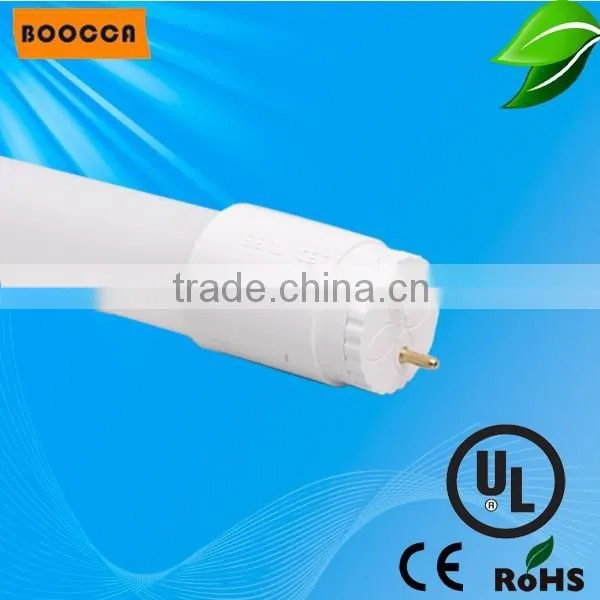

Double Sided Ip65 18w 1200mm Rotatable Russia t8 Circular Dimmable Led Tube
US$ 5 - 9
MOQ: 25 Pieces
Key Specifications
Get Latest Price
LED Light Source:
2835 SMD LED
Warranty(Years):
3
Input Voltage(V):
AC100-277V
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacture UL 24v dc 360 Degree Waterproof 18w t8 Led Tube Light Quality ChoiceUS$ 3 - 10MOQ: 25 Pieces -
High Quality 18w Waterproof Led Tube LightUS$ 5 - 9MOQ: 1 Piece
-
3 Years Warranty Waterproof UL CE RoHS SMD2835 1200mm 18w t8 Led Tube Quality ChoiceUS$ 3 - 10MOQ: 25 Pieces
-
Wedge Wire/MeshUS$ 160 - 960MOQ: 1 Set
-
Plastic Bag Filter High Accuracy 1 Year GuaranteeNegotiableMOQ: 1 Set
LED Light Source
2835 SMD LED
Warranty(Years)
3
Input Voltage(V)
AC100-277V
Lamp Power(W)
18
Lamp Luminous Flux(lm)
2160
Lamp Luminous Efficiency(lm/w)
120
Color Temperature(CCT)
Other, 4000K / 5000K
Working Temperature(℃)
-20, 45
Working Lifetime(Hour)
40000
Lamp Body Material
Glass
IP Rating
IP54
Certification
CE, EMC, FDA, LVD, UL
Place of Origin
Shanghai, China
Brand Name
BOOCCA
Model Number
Other, BC-T8-1200
Double Sided Ip65 18w 1200mm Rotatable Russia t8 Circular Dimmable Led Tube
Product Description:
1.North America Wide Pressure Type(ULcertification):
Model |
BC-T8-600 | BC-T8-1200 |
Diameter |
25.5mm(T8) | |
Length |
588mm | 1198mm |
Rated voltage |
AC 100~277V | |
| Rated frequency | 50Hz/60Hz | |
| PF | >0.95 | |
Dimmable |
No | |
Drive mode
|
Both ends of the drive | |
Electrical connection mode |
Single-ended power | |
| Dark areas | No | |
Power |
9W | 18W |
| Color temperature | 4000K/5000K | |
| Flux | 900lm | 1800lm |
Light effect |
100lm/W | |
| LED | 2835(54PCS/108PCS) | |
CRI |
CRI>80 | |
Beam angle |
>220° | |
Lifetime |
40000H | |
Power supply |
Built-in high-performance frequency constant current power supply. | |
Pressure |
>4000V | |
| EMC | Compliance withCISPR 15: 2005 | |
Prevent surge |
Compliance with IEC 61000-4-5 | |
Light Biosafety |
Compliance with IEC 62471:2006/IEC TR62471-2:2009 | |
Lamp holder |
Non-rotatingPClamp(G13) | |
Tube Material |
Glass(coating) | |
External metal radiator |
No | |
Temperature Environment |
-20℃~+45℃ | |
Tube surface temperature |
Below 45 ℃ | |
Design Standards |
IEC6000-3-2:2001 /IEC 61000-4-5 /IEC 61547:2008Amendment /CISPR15:2005/IEC 62471:2006/IEC TR62471-2:2009 | |
| GBT 17625.1:2003/GBT 17625.5:2000/GBT 18595:2001 /GB 17743:2007/GBT 20145:2006 | ||
Hazardous Substances |
Comply with Rohs Directive | |
Packing |
25 pieces/ wooden | |
2.Non-ULSeries:
Model |
BC-T8-600 | BC-T8-1200 |
Diameter |
25.5mm(T8) | |
Length |
588mm | 1198mm |
Rated voltage |
AC 180-265V | |
| Rated frequency | 50Hz/60Hz | |
| PF | >0.5 | |
Dimmable |
No | |
Drive mode
|
Single-ended drive |
|
Electrical connection mode |
Double-terminated power | |
| Dark areas | No | |
Power |
9W | 18W |
| Color temperature | 4000K/5000K | |
| Flux | 750lm | 1500lm |
Light effect |
84lm/W | |
| LED | 2835(38PCS/76PCS) | |
CRI |
CRI>70 | |
Beam angle |
>220° | |
Lifetime |
30000H | |
Power supply |
Built-in high-performance frequency constant current power supply. | |
Pressure |
>4000V | |
| EMC | Does not comply with CISPR 15: 2005 |
|
Prevent surge |
Compliance with IEC 61000-4-5 | |
Light Biosafety |
Compliance with IEC 62471:2006/IEC TR62471-2:2009 | |
Lamp holder |
Non-rotatingPClamp(G13) | |
Tube Material |
Glass | |
External metal radiator |
No | |
Temperature Environment |
-20℃~+45℃ | |
Tube surface temperature |
Below 45 ℃ | |
Design Standards |
IEC6000-3-2:2001 /IEC 61000-4-5 /IEC 61547:2008Amendment /CISPR15:2005/IEC 62471:2006/IEC TR62471-2:2009 | |
| GBT 17625.1:2003/GBT 17625.5:2000/GBT 18595:2001 /GB 17743:2007/GBT 20145:2006 | ||
Hazardous Substances |
Comply with Rohs Directive | |
Packing |
25 pieces/ wooden |
|
Packaging & Shipping:
25 pieces/ wooden
Application:
Company Information:
Boocca Shanghai Industry Co., Ltd is a leading LED manufacturer, located in Shanghai,China. We are specialized in manufacturing indoor LED lighting products such as LED tubes, bulbs, panels, and outdoor lights, such as LED flood lights, LED Street light . We have complete and strict systems of R&D, production, marketing, sales and after-sales service etc., own all kinds of automatic equipments of LED light sources (dip LED and SMD LED) and staff with rich experienced R&D team, which makes our products to be high-quality guaranteed and full-technology supported. Welcome your visit to our factory.
