averaging tube
- 500 Set / Sets per Month
- FOB Shanghai China
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Boocca | Model Number: | BF10 |
Product Description
Specifications

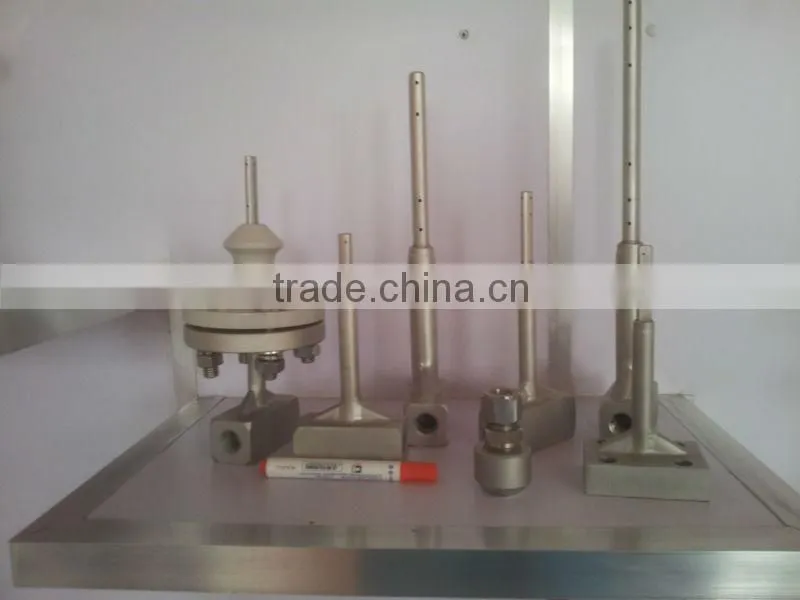

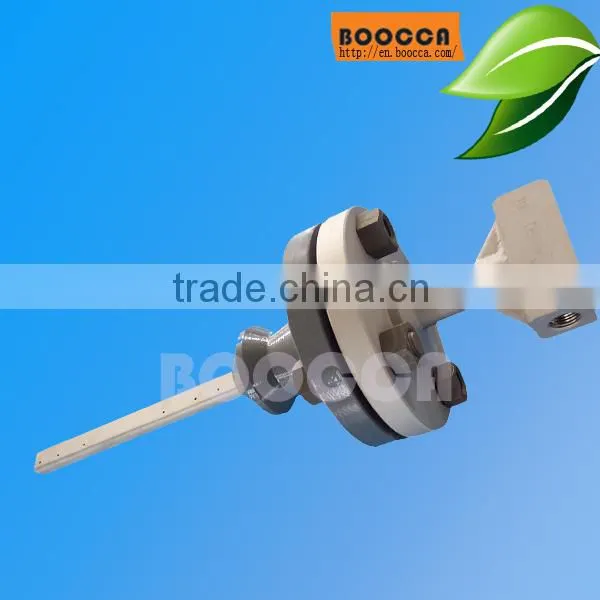

averaging tube Flowmeter Convinent online installation and maintenance. The drive pole could keep your operators safe.Averaging tube
As an insertion-type flow meter, it is quickly and easily installed through a small hole drilled into a pipe or duct. As a mechanical device without electronics or moving parts, it doesn’t suffer from electronic drift or physical wear, making it a dependable, repeatable primary element requiring no periodic recalibration. Maintenance may be as simple as inspect and replace as needed.
1. Joint type: Wire press and expand sealed screw joint online install type.
2. Instruction: 200 screw joint online install type can be installed & repaired without stopping
production. Especially fit for that dirty medium, need repair periodic or cant stop
production measure point, such as gas, large diameter groundwater. Have single pole drive
type and double pole drive which used for high pressure. For large diameter such as too
small install space, straight pipe long enough or for the cost reason, can chose the online
install part insert type.
3. Application: Commonly used for wind, water, gas etc. measurement.
4. Suitable pipe diameter: 25~12000mm.
5. Standard Grade: Online installation temperature less than 121, pressure less than 2.5Mpa
Single pole Max. ANSI 150# 0.65Mpa@396 1.89Mpa@38
Double pole Max. ANSI 600# 5.8Mpa@396 9.9Mpa@38
6. Accuracy: ±0.5%~1.0%
7. Repeat accuracy: ±0.1%
