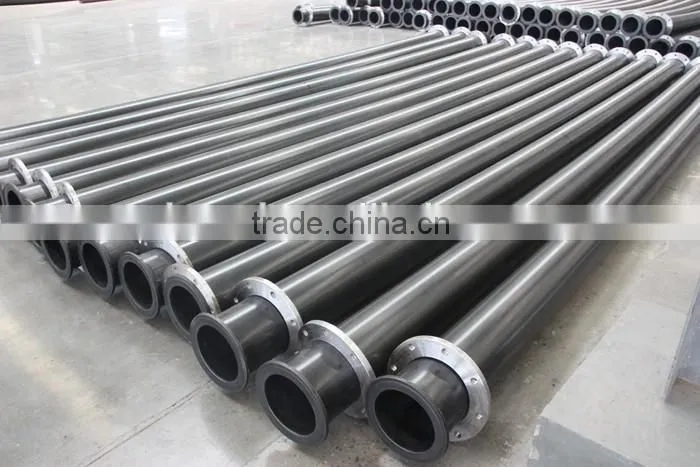

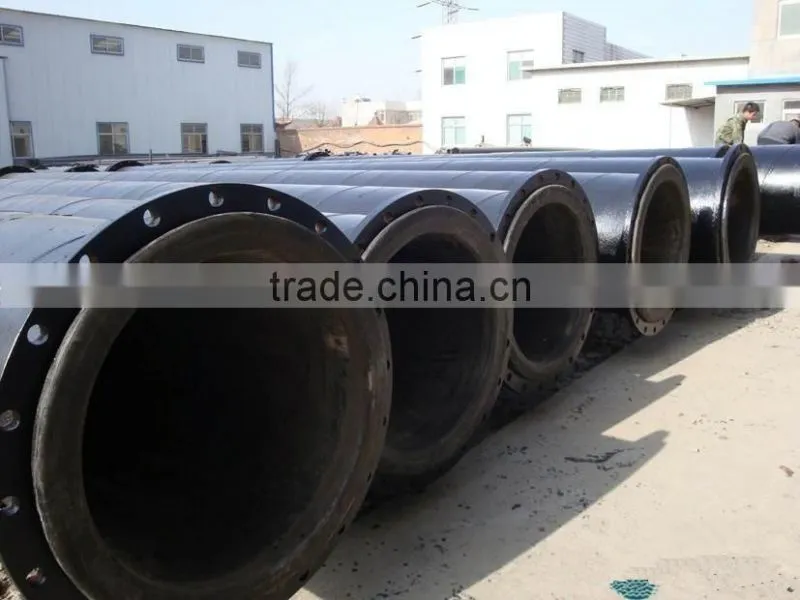

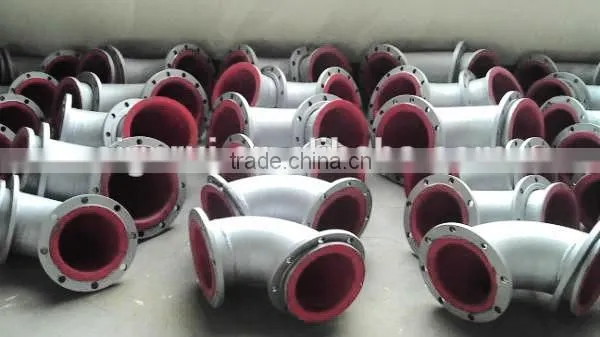

Steel rubber composite pipe
Steel and UHMWPE rubber composite pipe is a kind of mixed pipe, using steel or hard material as the outside pipe framework, and rubber as the liner. Steel is hard, and rubber is wear-resisting, anticorrosion and temperature-resisting, so, this steel and rubber composite pipe combines the advantages of steel and rubber. The physical and chemical performances of rubber reduce the effect of transferred media on outside structure, such as shock and corrosion. Therefore, the pipeline obtains the performance of high strength, high wear-resistance, high anti-corrosion and high temperature resistance, prolongs the lifetime of pipeline and thus reduces cost.
1 Specifications
|
Nominal Bore (mm) (inch) |
Wear Liner Thickness |
Nominal O.D. |
Working Pressure |
Product Length |
Remark |
|
mm |
mm |
MPa |
meter |
|
||
300 |
12 |
8±0.5 |
350±3 |
1.0 |
2 to 10 |
Custom design available |
350 |
14 |
12±0.5 |
410±3 |
1.0 |
2 to 10 |
Custom design available |
400 |
16 |
12±0.5 |
460±3 |
1.0 |
2 to 10 |
Custom design available |
450 |
18 |
12±0.5 |
510±3 |
1.0 |
2 to 10 |
Custom design available |
500 |
20 |
16±0.5 |
580±3 |
1.0 |
2 to 10 |
Custom design available |
550 |
22 |
16±0.5 |
630±3 |
1.0 |
2 to 10 |
Custom design available |
600 |
24 |
16±0.5 |
680±3 |
1.0 |
2 to 10 |
Custom design available |
Its main characteristics are as follows:
1. High impact resistance
2. Good anti-abrasion
3. Fine anti-corrosion
4. Adapting to wide range of temperature
5. Less running resistance can reduce energy consumption
6. Good steel pipe
7. Light weight, easy to install, maintain and transport
8. Recycling and reuse
We manufacture a hardness and softness of the pipeline equipment, using ordinary steel material as the steel pipe, and using excellent rubber with abrasive resistance, anticorrosion, heat-resistance and so on as a lining layer, to combine the characteristics of metal and rubber together, into the characteristics with high strength, high abrasive resistance, high anti-corrosion and high heat-resistance.

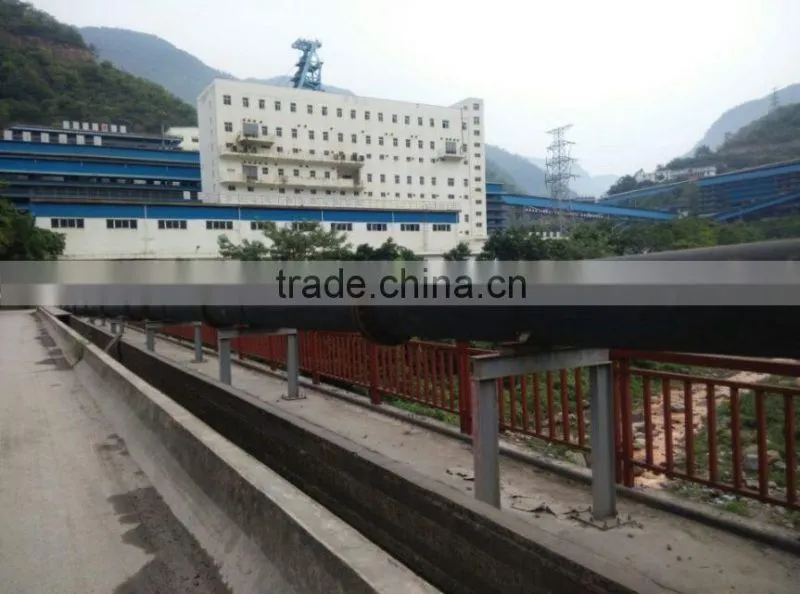

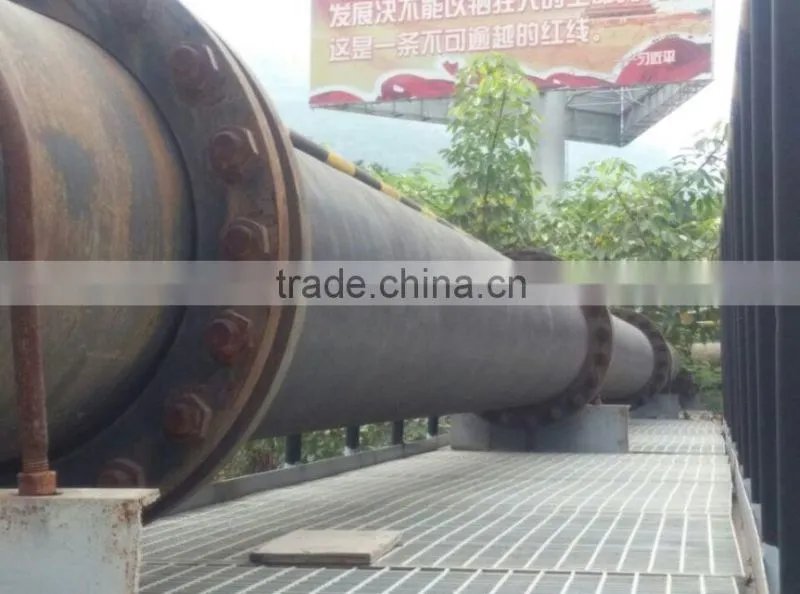

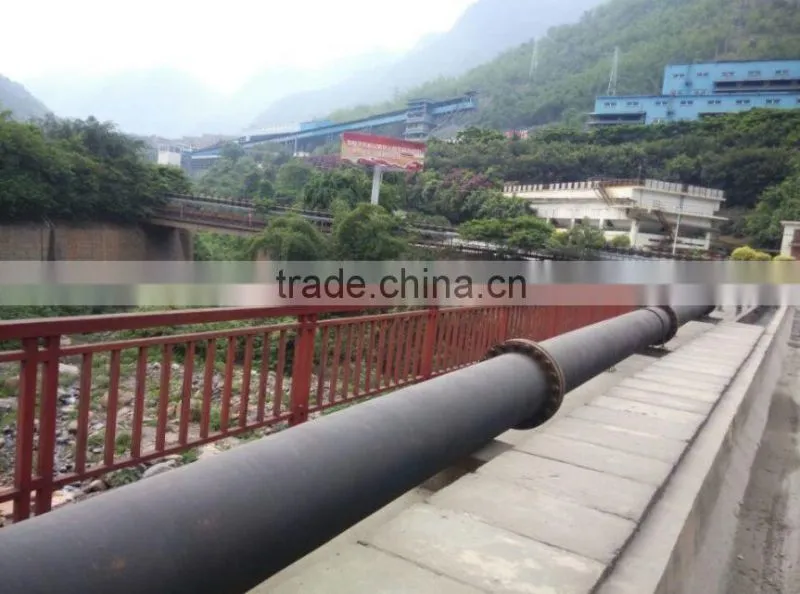

Therefore it can be widely used for the pipeline system of industrial deslagging, exhaust in metallurgy, mining, electric undertaking, chemical industry and so on.
2 Packing and Loading
We will arrange the shipment and delivery after the receipt of
your order and we provide perfect after-sale service :warranty
of 2 years for all main parts
3 Company and contact information
Agree (China) Co.,Ltd is an professional manufacturer of mining
equipment. Our company is a joint-venture between Agree(Britain)
oil gas field service company and HeBei boliteer (China) rubber and
plastic products Co.,Ltd of China,with a registered capital of RMB150 Million.
