Help CenterRain Drip Belt Production Line Machine With Low Price and High Quality
Related Products
-
Rain Drip Pipe Production Line Machine With Automatic and Save LaborUS$ 136,800 - 139,000MOQ: 1 Set -
Drip Irrigation Pipe Production Device for Drip Pipe ProductUS$ 135,000 - 138,000MOQ: 1 Set
-
Drip Irrigation Tape Production Machine for Irrigation BeltUS$ 136,800 - 138,000MOQ: 1 Set
-
Inline Drip Irrigation Pipe Making MachineUS$ 136,800 - 138,000MOQ: 1 Set
-
Lay Flat Drip Irrigation Pipe Production Line Machine for Irrigation Belt ProductionUS$ 136,800 - 138,000MOQ: 1 Set
The inline flat drip tape production line is designed and manufactured by Shandong Runfeng Water-saving Irrigation Co,. Ltd. Upon 20 years experience of making drip irrigation product and by attracting technique on such machine from home and abrod ,Bye use of electric control wiring commonly used in the world, this plant turns stable,reliable and renewableand has high automation.
| S.N | Items | Specifications |
| 1 | Tape Diameter | 16mm |
| 2 | Tape Wall Thickness | 0.18mm-0.6mm |
| 3 | Production Speed | 40m/min-100m/min |
| 4 | Drpper Identifying Speed | 500Pieces/min |
| 5 | Dropper Spacing | 10cm-100cm |
| 6 | Punching Speed | 450holes/min |
| 7 | Total Installed Power | 100kw |
| 8 | Lenth of the Line | 30m |
| 9 | Total Line Weight | About5800kg |

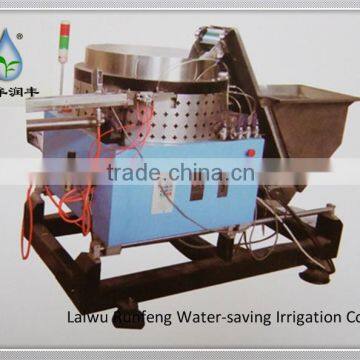

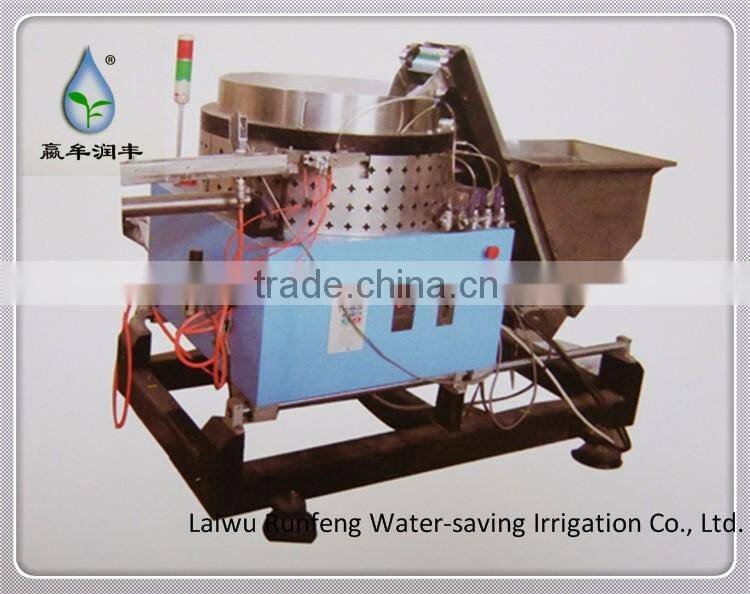

Dropper Identifying Equipment
Upon effect of centrifugal force ,the recoganition tunnel can recognize inline droppers automatically.Cooperated by compressed air ,the droppers can be driven into the tunnel with correct direction .The device is equipped with photoelectrical switches ,tunnel, PLC control.

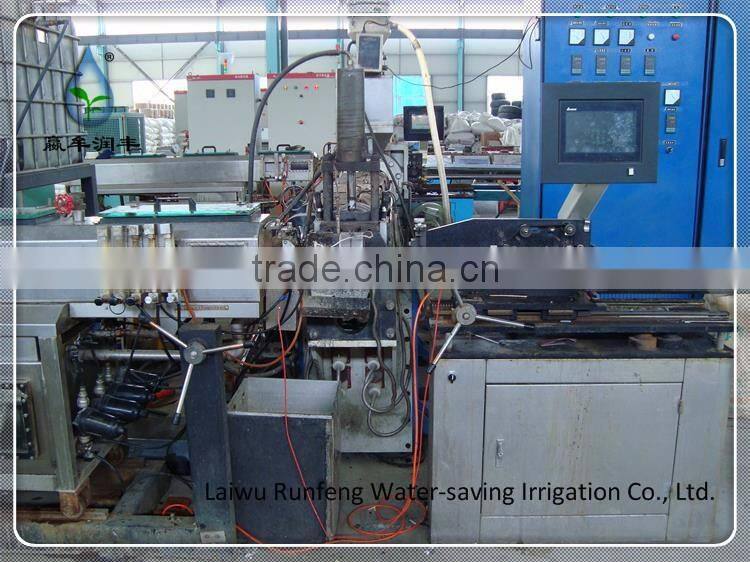

Forming Machine
A servo motor is used to drive a belt which can bring the droppers in a tunnel into an accurate place for adherence.
The drip irrigation tape is made of precise recipe of material, processed by use of delicated screw and barrel of Jinhairuo brand,hard tooth face reducer of Jiangwei brand ,and technique of forming head from Italy ,which enjoy stable extrusion capability, uiform plasticization and credible quality.Through accurate vacuum and water level control, tape is thermally formed with droppers sticking accurately on its wall, It is cooled by water circulation ,consuming less water with less operating cost ,It has also special device for anti-rotation of pipe.

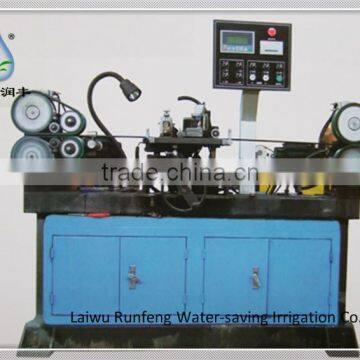

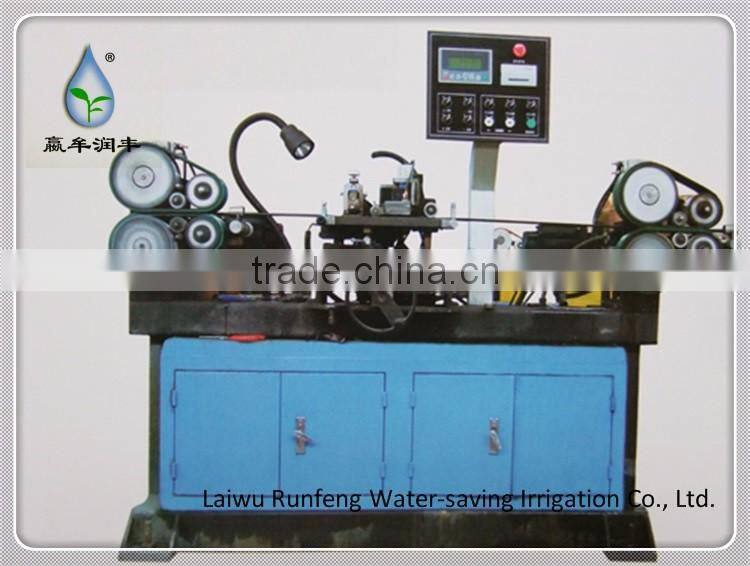

Traction Punching Device
With different speed control to the double draggers,the hole punching has become very stable .Equipped with an optoelectronic switch imported for detection signal together with mechanical adjustment,the accuracy of hole punching can be ensured.
| Items | Sub-items | Specification |
| Traction Speed | Max. Traction Speed | 120m/min |
| Drive Motor | Brand | Taida Brand |
| Power | 2kw*2 | |
| Pull Roll | Pattern | Caterpillar Band |
| Material | Compounded Rubber | |
| Opening-Closing | Pneumatic |

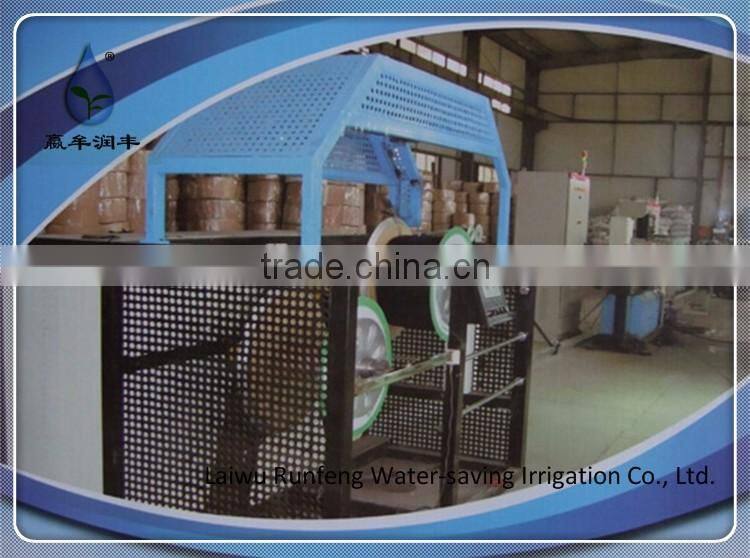

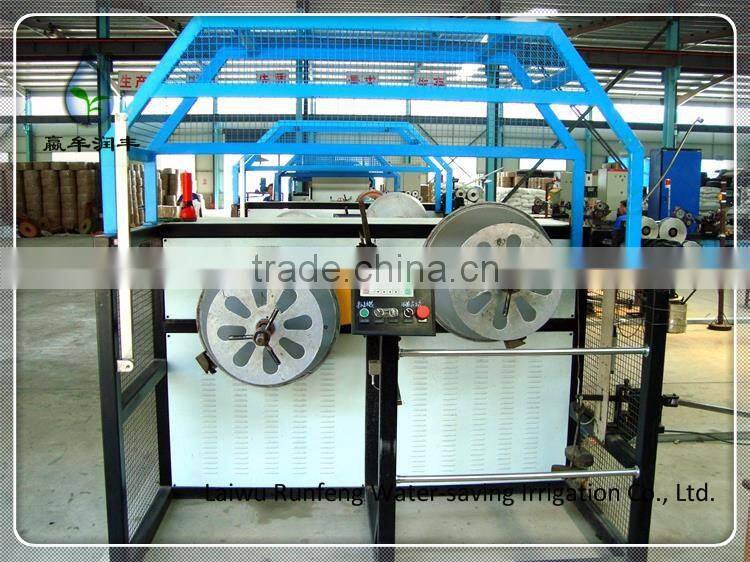

Double Location Winding Device
This device adopts PID control circuit, detect and change rolls automatically,thus having improved quality of the product.
| Items | Specification |
| Winder style | Automatic Winding |
| Features | Automatic control after receiving singal |
| Reel Drive Motor | 2kw*2,of Taida Brand |
| Roll-changing motor | 0.75kw |
| Winding Displacement Drive Motor | 0.75kw ,Of Taida Brand |
| Tension control | PID Automatic Control |
| PLC control Panel | Xinjie Brand |

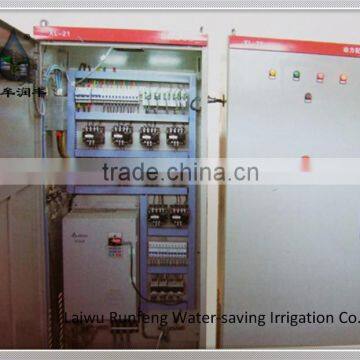

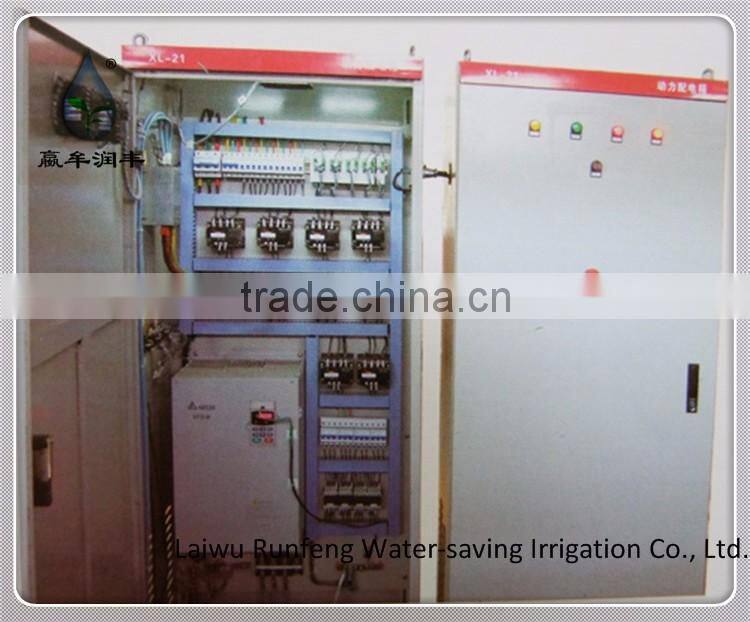

Electric Control Device
Full automation for production process can be achieved by use of human-computer interface of Taida brand of Taiwan and PLC control,By use of ethernet module, the supplier can detect, upgrade and maintain the equipment.

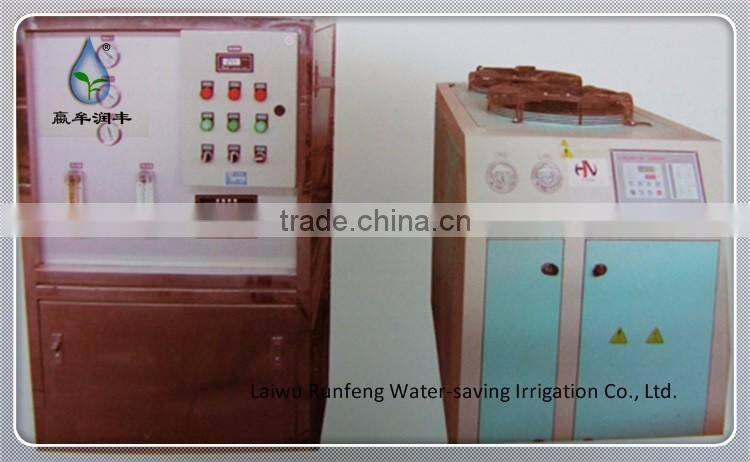

Water Treatment Units
This unit can produce pure water which can improve quality of product. thus no scales can be formed in the molding device and the water pumps and vacuum pumps can be protected.
Payment terms : 30% DEPOSIT BY T/T;BANLANCE AGAINST FAXED B/L
If you have any question , please contact us at 86-0634-6685777 or 8618763421190.
