Specifications
200x200mm LED Panel LightSuper slim only 12mm
18W, 96 x SMD3014 ultra bright LEDs
Waterproof IP54
3 years guarantee
200x200mm LED Panel Light, TUV Approved, Super Slim 12mm, AC85-265V, 18 Watts, Side Emitting LED Panel Light
Product Features:
Lusta LED specialises in high performance LED Panel Lights. We provide customers with the very best in performance and economy. Our LED panels are direct replacements for traditional grid based fluorescent lights, and the slim profile allows them to fit seamlessly into any workplace. It is easy and convenient to fit the panel lights to plastered surfaces using one
of the mounting frame options, or a suspension kit.
Widely used in offices, schools and retail environments, our panels provide lighting that is completely even, 'uniform', durable, maintenance free and energy efficient. LED panel lighting allows organisations to cut their operating costs significantly without compromising the quality of their lighting.
- Super slim, only 12 mm
- More sizes available - 200x200mm, 300x300mm, 600x300mm, 595x595mm, 600x600mm, 620x620mm, 1200x300mm, 1200x600mm
- Drivers and installation accessries are include. It is easy and convenient to install our LED Panel Lights, suspension style or fixed mounting style.
- Longer lasting and a lot cheaper to run than traditional light panels
- All Lusta LED Panels are made at our manufacuring facility. So turnaround time from brief to desgin, to manufacture, to delivery can be astonishingly quick.
Product Specifications:
| Item | Symbol | Value | Unit |
| Power | P | 18 | W |
| Voltage | VOLT | AC85-265V | V |
| LED Diode | PC | 96 | Pcs |
| Working Current | I | 400 | mA |
| Liminous Flux | lm | 1348 | lm |
| Colour Temperature | K | 3000K/4000K/6000K | K |
| Dimension | L*W*H | 200*200*12 | mm |
| Working Temperature | TOPR | -25 ~ 60 | °C |
| Storage Temperature | TSTG | -40 ~ 80 | °C |
| IP Rating | IP | 54 | IP |
| Lifespan | HOUR | 50,000 | HOUR |
| Power Facor | PF | 0.94 | / |
| Power Supply Efficiency | η | 0.94 | / |
Lumiouns Decay:
| Operating Time (hrs) | Lumen Decrease (%) |
| 1,000 | 4 |
| 3,000 | 10 |
| 5,000 | 15 |

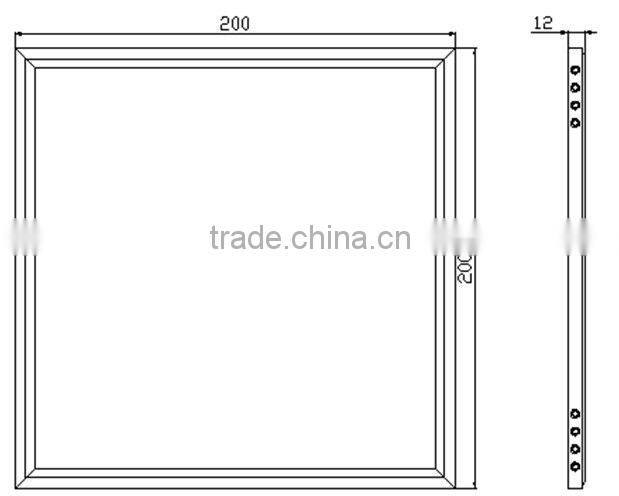

Product Dimension (Unit:mm):

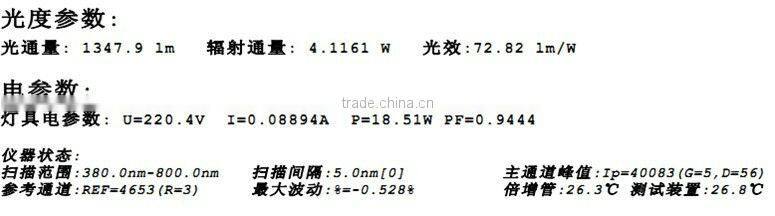

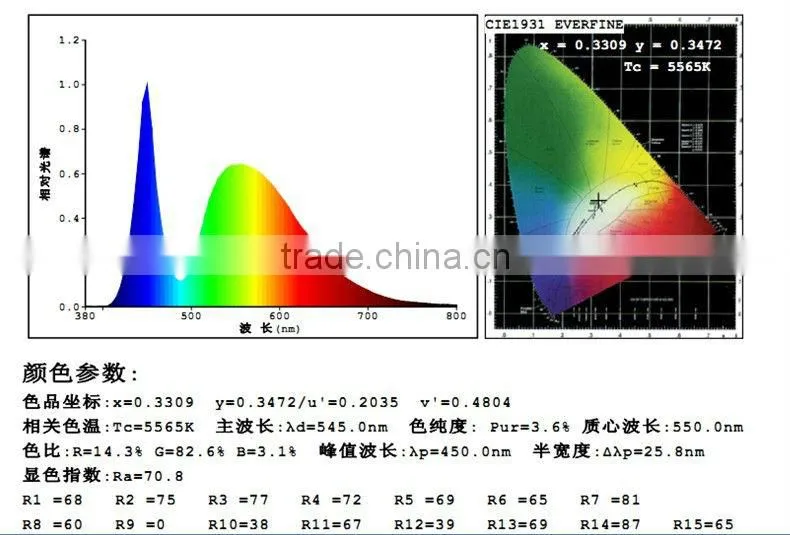

Light Test Report:

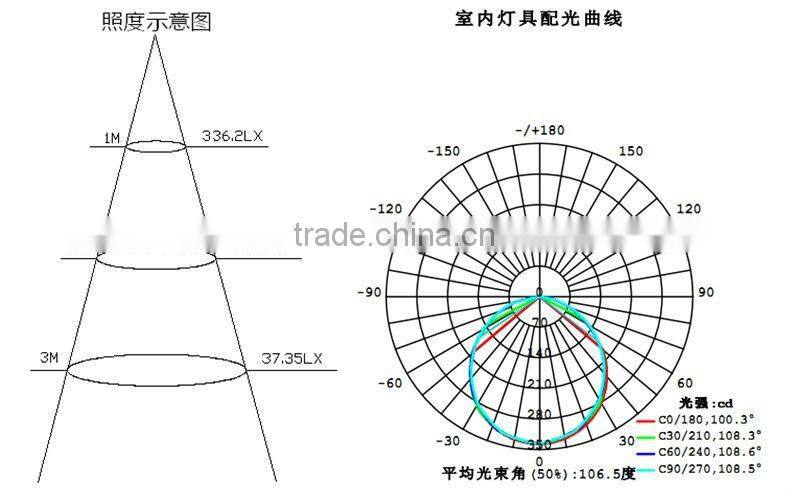

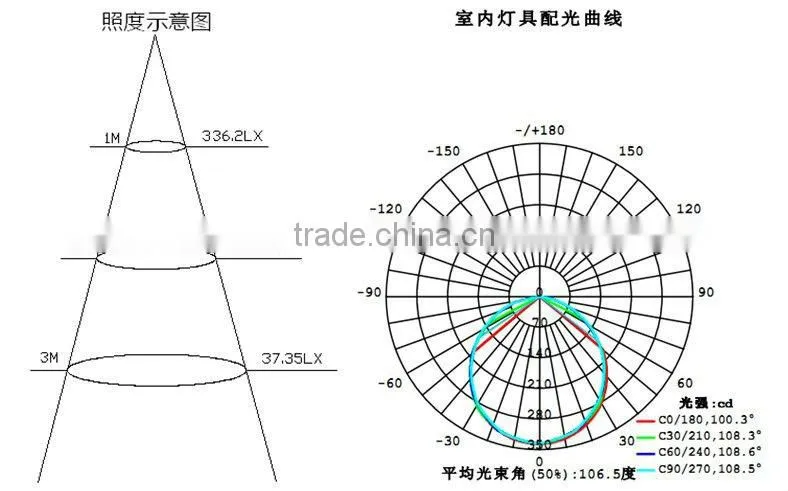

The intensity of illumination and light distribution curve:

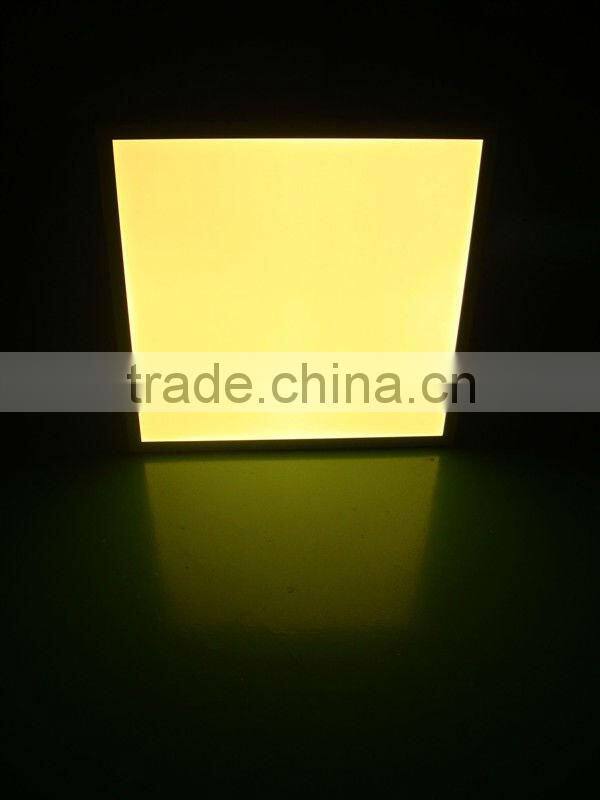

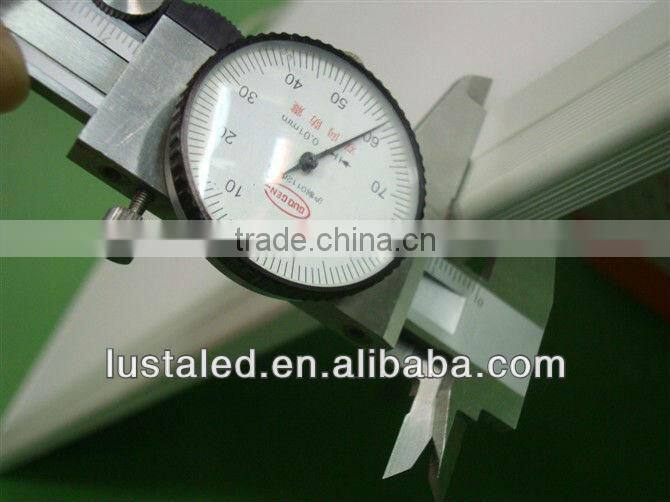

Super slim, only 12 mm

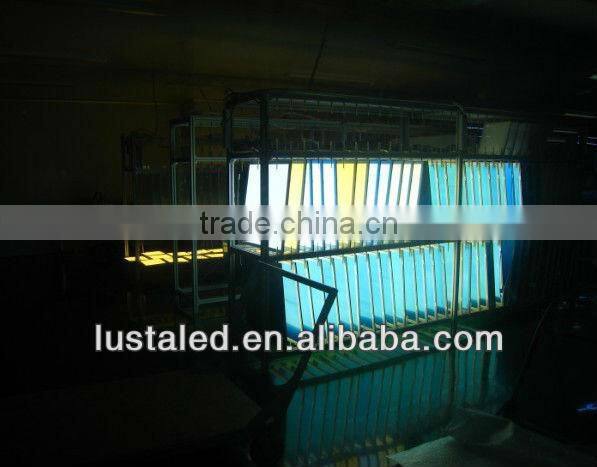

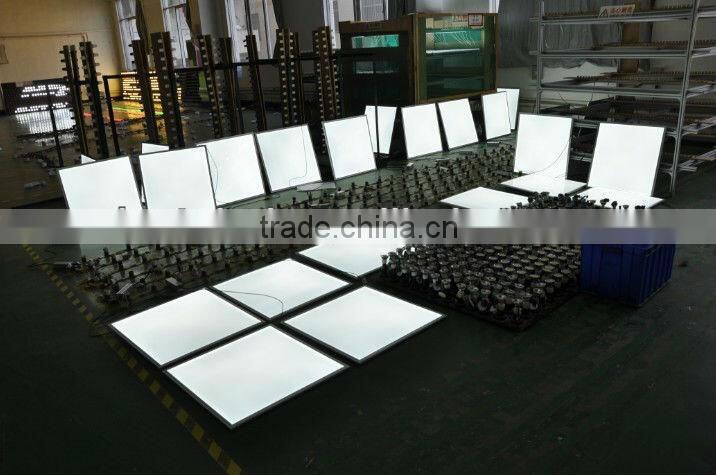

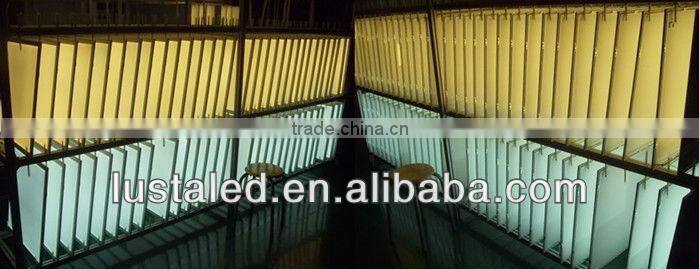

All Lusta LED Panel Lights pass burn-in test and QC before delivery.

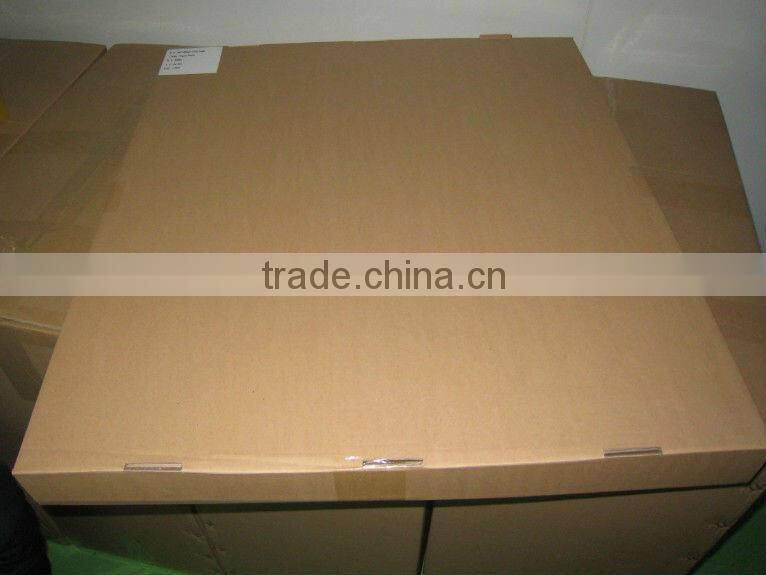

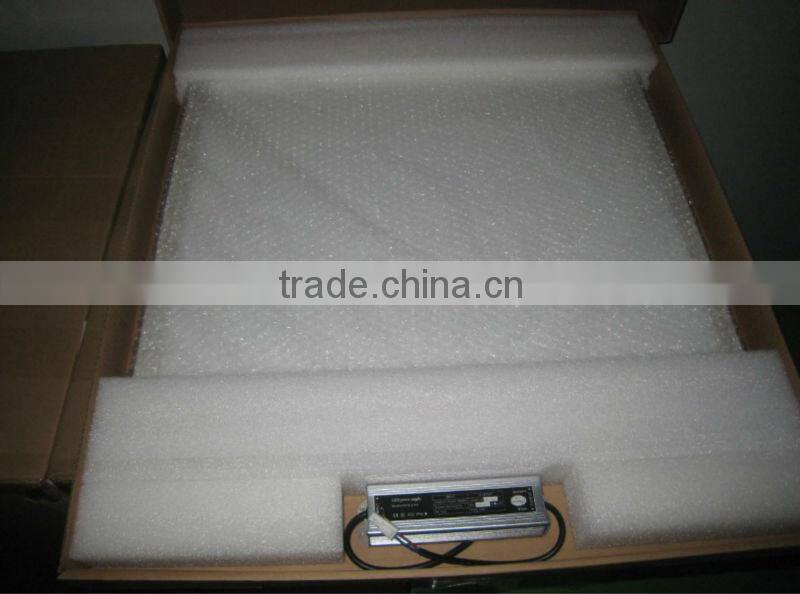

Packing:

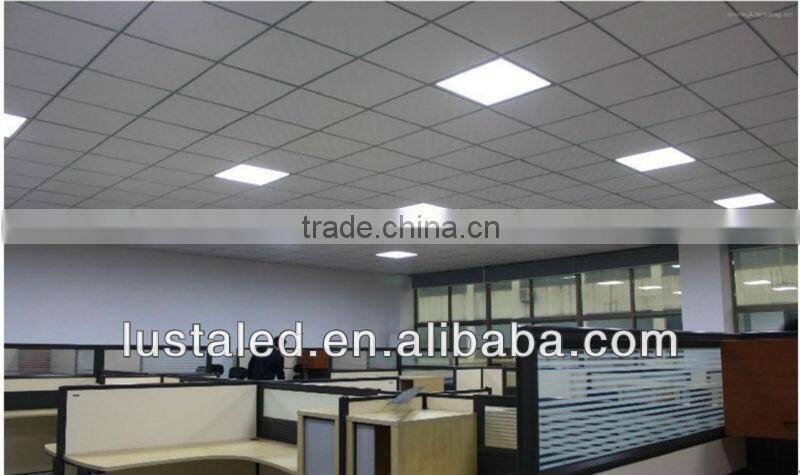

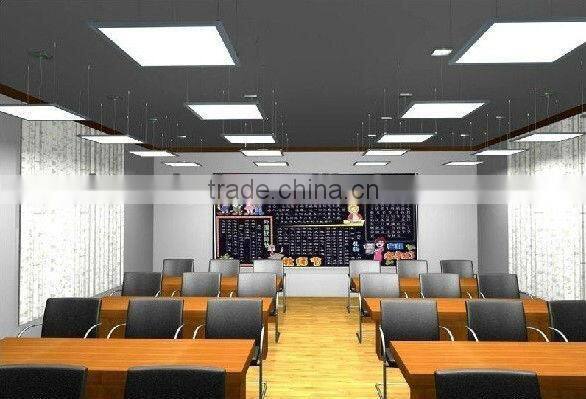

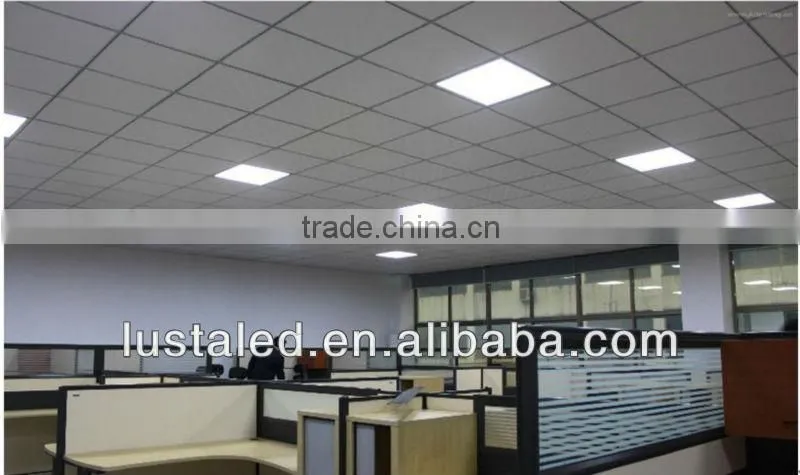

Application:
Please contact us for a quote or more information about our quality LED Lights, we are here to help!
