8W/10W/15W/18W Ultra Slim LED Panel Light, Ultra Slim Only 14.5mm

Specifications

Ultra Slim LED Panel Light
Ultra slim design, only 14.5mm
8W10W15W18W, LED driver included
Dimmable or non dimmable
CE RoHS

8W/10W/15W/18W Ultra Slim LED Panel Light, Ultra Slim Only 14.5mm



Using high quality LED diodes - Super Bright 3528 SMD or 3014 SMD, our Ultra Slim LED Panel Light is made to the highest standards and boasts >80 lumens per watt. It suits many applications commercial and domestic.



Power: 8W / 10W/ 15W/ 18W



Extra Slim Profile, only 14.5mm



Cut Out - 8W 170mm, 10W 225mm, 15W 265mm, 18W 282mm



Big energy savings compared to PL downlights



Cool to run, bearly no heat giving out



Instant on no flicker or hum



Die-cast aluminium body, frosted diffuser



Our Ultra Slim LED Panel Lights come with LED drivers



Dimmable option is available



Applications: Indoor use eg offices, hotels, hospitals, supermarkets, residential

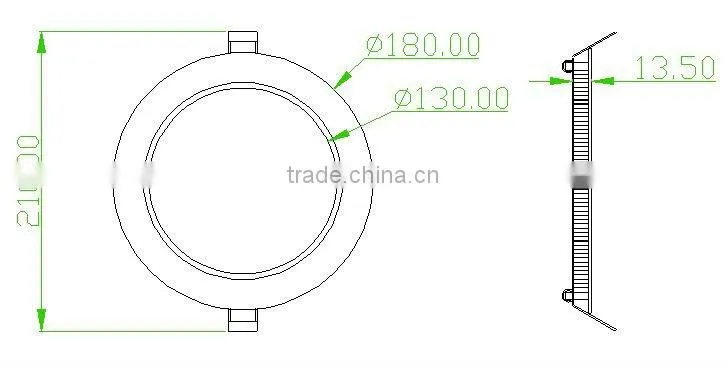

Dimension (Unit: mm)

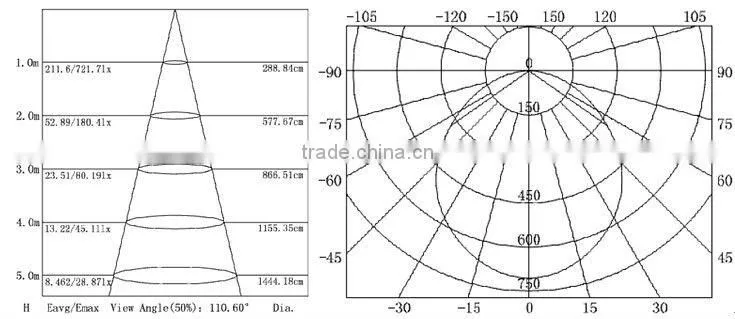

Isolux Diagram:

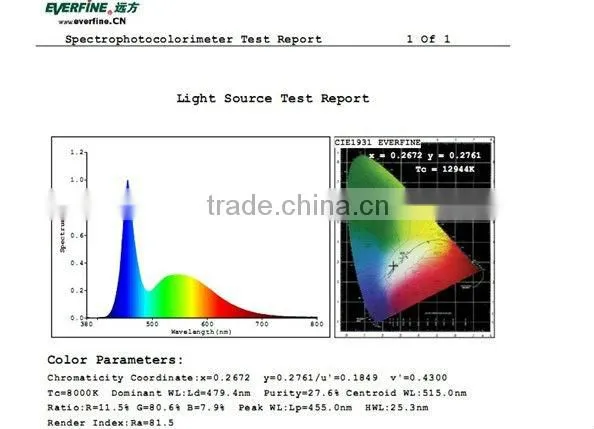

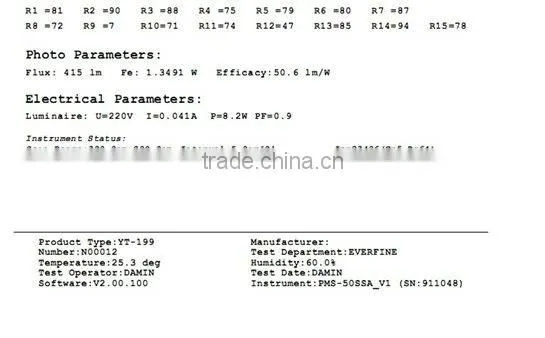

Test Report:

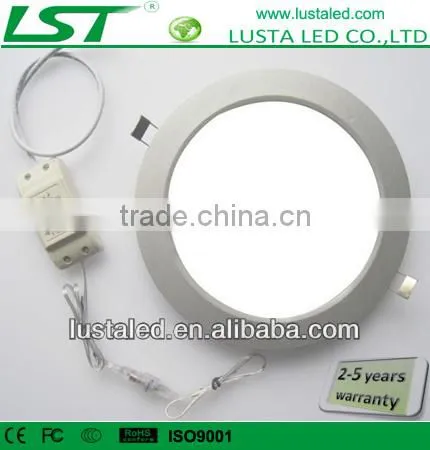

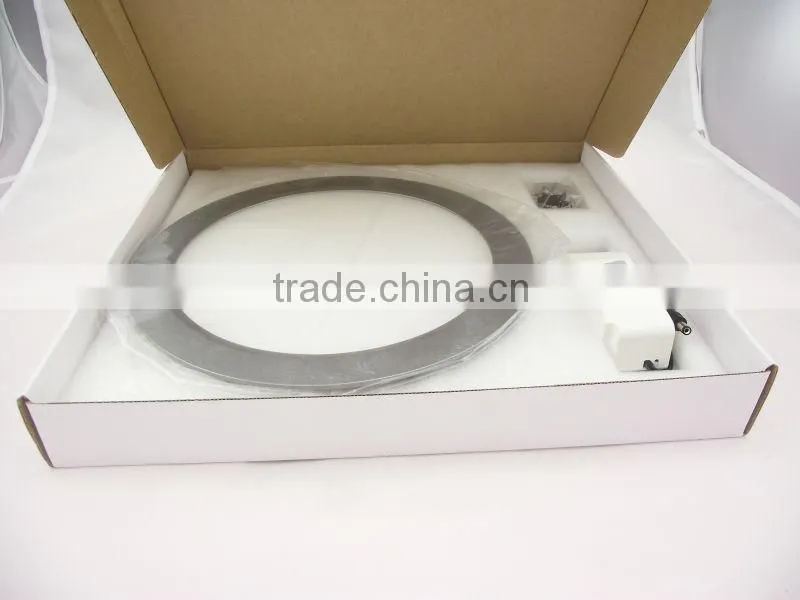

Product Photos:







 Our Ultra Slim LED Panel Lights in our showroom:

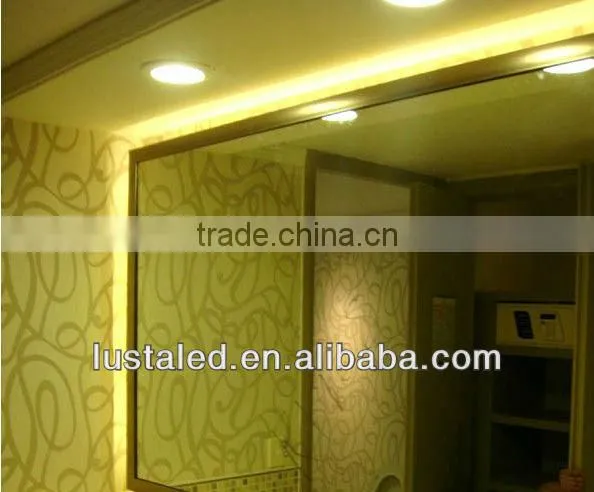

Appliction:









Q: What are the payment methods does Lusta LED accept at present?

You can pay by T/T in advance, Paypal and Western Union. Authority for payment must be given at the time of order. If there is a problem taking payment for all or part of your order we may contact you by email or by phone.



Q: What is the lead time after placing the order?

Usually, lead time for common orders is 5-7 working days while 10-12 working days for large amounts of goods. However, it would depend on our production line schedule and the complication of the items.



Q: What is the delivery and shipping?

Delivery will be made to the address specified when you complete the order. Usually, we send the shipments in EXW term. However, the terms of FOB is acceptable which depends on the preference of clients. We use Express (DHL, UPS, FedEx), Air Transportation and Sea Transportation to deliver our goods. Customers can choose alternative delivery methods.



Q: What is the replacement policy / guarantee?

We have a minimum 2 year replacement warranty for all products. For the majority of our LEDs the warranty is 3 years.



If you have a fault within the warranty period, please return the faulty item to us including a copy of your order/receipt/commercial invoice or at the least quoting your name and order number and we will send a replacement free of charge to you. In this case you have to pay to send the faulty item to us; we pay our postage costs to send the replacement. A more easier way is that you can provide evidence to show the faulty item, such as a series of photos with our item number, unabridged video clip, etc.



Please contact us for a quote or more information about our quality LED Lights, we are here to help!
