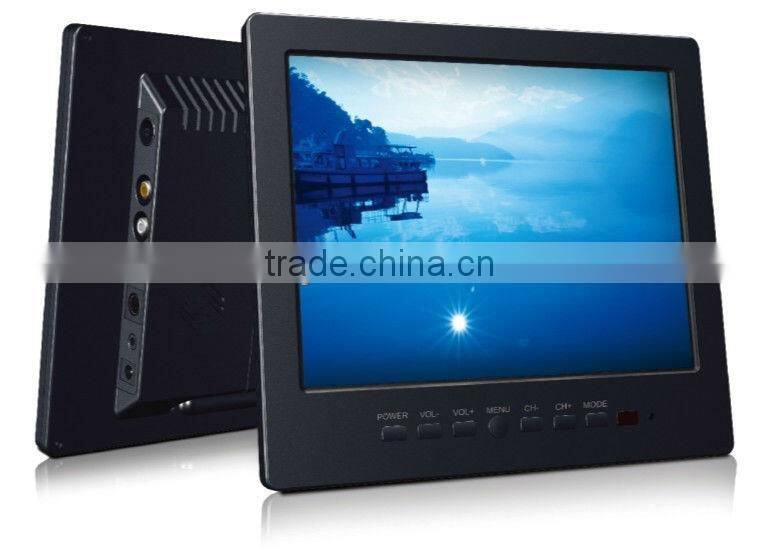

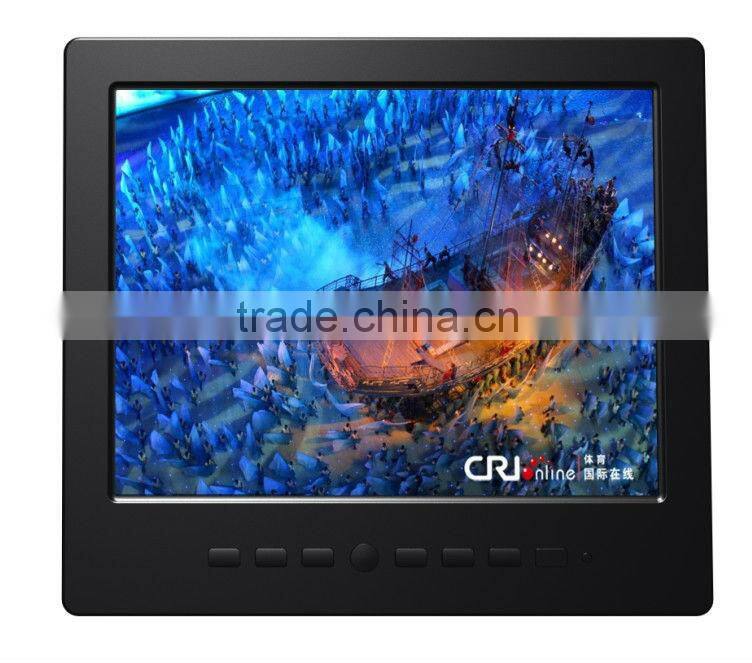

8 Inch Small Size Lcd Tv/lcd Monitor/car Monitor/Industrial Monitors
Specifications
car monitorsimple fashion body, and foldable bracket design, light and portable
support for BNC input
8 inch small size lcd tv/lcd monitor/car monitor/Industrial Monitors
| simple fashion body, and foldable bracket design, light and portable; uses 8 inch high resolution (800x600) TFT LCD screen, the image is clear and exquisite, colourful; support for BNC input for professional security monitoring equipment is connected, so that signal mutual interference reduction, can achieve the best signal effect. 4 video mode input switching, support for multi-channel video receiving function, high sensitivity, strong interference resistance.Monitor mode, support the four video for 1 to 60 seconds automatic switching. support for VGA input, can be used for computer liquid crystal display (640*480/60Hz, 800*600/60Hz, 1024*768/60Hz); support chromatic input, color more vivid, the image more realistic; built-in high-quality loudspeakers; support image flip up and down control, adapt to different installation mode; with timing switch machine and automatic signal standby function. |
|||
| Product model | Color LCD monitor L8008 | ||
| Main function | Standard mode: BNC+AV+YPbPr+VGA; Monitor mode: four video input (also can be set to a four video turns switching input mode) |
||
| LCD specifications | LCD liquid crystal display | 8 inch,4:3 | |
| Effective display area | 162.2(H)x121.5(V) mm | ||
| Resolution | 800x600 | ||
| Loudspeaker | 16Ω 1W*1 | ||
| Sound system | 6.5/6.0.5.5/4.5M | ||
| AV IN |
Standard mode: a BNC signal input, a video input / a YPbPr input / one VGA input; Monitor mode: four video input / four video turns switch input |
||
| AV OUT | x | ||
| Terminal and interface specification | AC | 12V | |
| BNC | ok | ||
| VGA | 8 pin VGA interface input expansion: VGA input / one YPbPr input / three video input | ||
| AV | Side RCA socket lotus | ||
| Packaging specifications | BOX | Box + card | |
| Standard accessories | Power adapter / specification | ||
| Optional accessories | BNC signal line, VGA signal lines, color lines, video lines, power supply, base | ||
| Electrical specifications | The machine input | DC12V/400mA | |
| Power consumption | 6.0W | ||
| Power adapter | DC12V/1A | ||
| Mechanical specifications | Product power consumption | 12V/400mA | |
| Product size | 195x175x29mm | ||
| Product weight | 450g | ||
( The More You Order, The Better Price You Will Be Given! )
