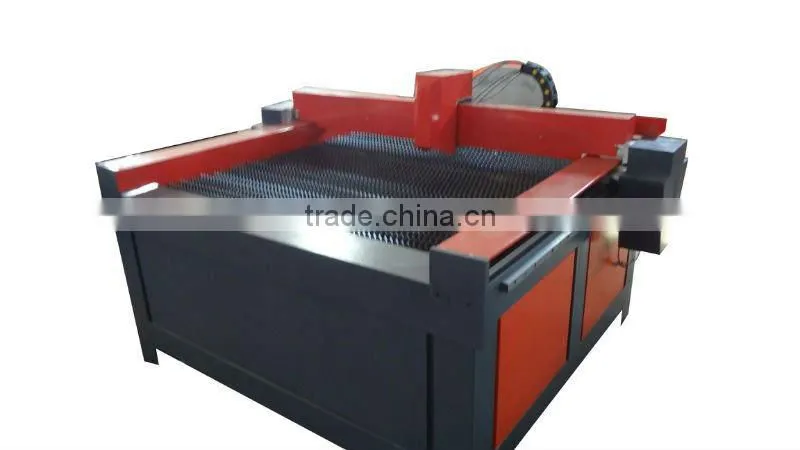

metal plate cutting machine 1-10mm
Features:
1.Computer -controlled and precision mechanical transmission
2.Good user interface makes the operation more convenient and simple,fast and accurately.
3.Compact structure, good rigidity and stable performance.
4.Applies the longitudinal bilateral synchronous drive system.
Application:
1.Widely used in machinery manufacturing, metal processing etc.
2.It can replace the complicated and and backward hand and mechanical operation.
3.Particularly suitable for the medium/thin non-errous metal plate, stainless steel and carbon steel plate.
Technical Parameters of standard model
Model |
CPC-9060 |
CPC-1290 |
Work area |
900*600mm |
1200*900mm |
Cutting thickness |
1-10mm(Plasma power 65 included) |
|
Optional plasma power |
45A 1-6mm, 85A 1-16mm, 100A1-19mm |
|
Plasma power source |
American Hypertherm |
|
voltage |
3-phase 380V |
|
Power |
8.5KW |
|
Power frequency |
50HZ |
|
Drive type |
Step driver |
|
Files transfer |
USB Interface |
|
Transmission method |
Square rail/rack gear |
|
Picture format supported |
DXF/PLT,AutoCAD,UCANCAMV9 International standard code |
|
Work mode |
Untouched arc striking |
|
Adjustable high mode |
automatic arc voltage/mechanical adjustment |
|
Control mode |
CNC |
|
Cutting air source |
Compressed air |
|
Cooling method |
Air cooling |
|
Smoke exhaust system |
Rear exhausting smoke |
|
Processing materials |
Cold rolled plate, stainless steel, galvanized version, copper, aluminum and other metal sheet |
|
Net weight (kg) |
300kg |
400kg |
Machine size (mm) |
2340*1440*1440 |
2640*1740*1440 |
Gross weight (kg) |
500 |
600 |
Machine size (mm) |
2440*1540*1550 |
2740*1840*1550 |
Advantages compared with other supplier
Linear guide for x and y and the driving system with pinion and rack
Original STARTF cnc control system
Using American Hypertherm plasma power
Using the reduction box for 1x and 2y to ensure the high precision instead of motor only.
Plasma metal cutting machine
