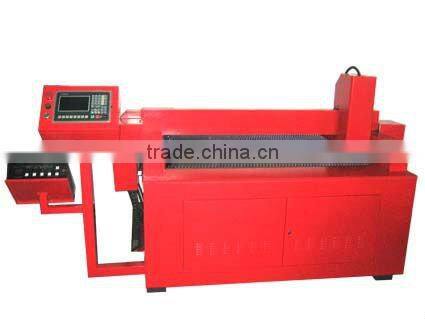

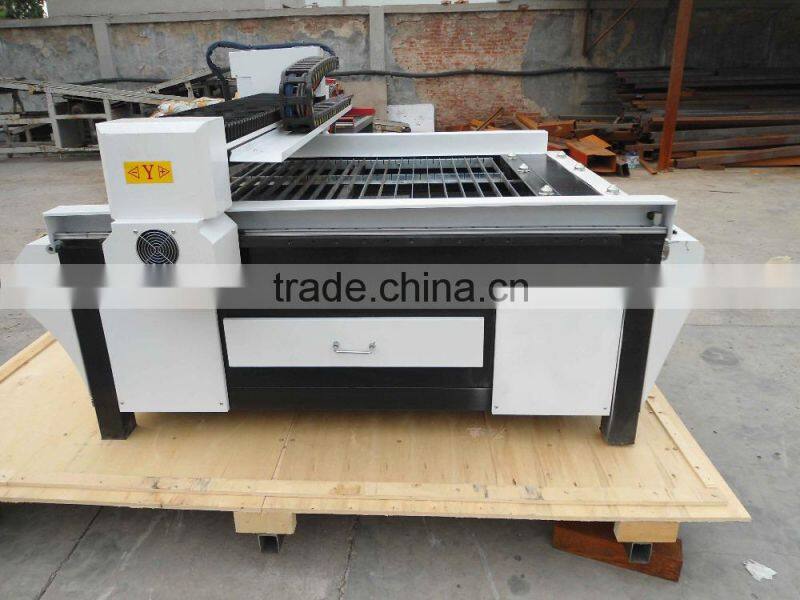

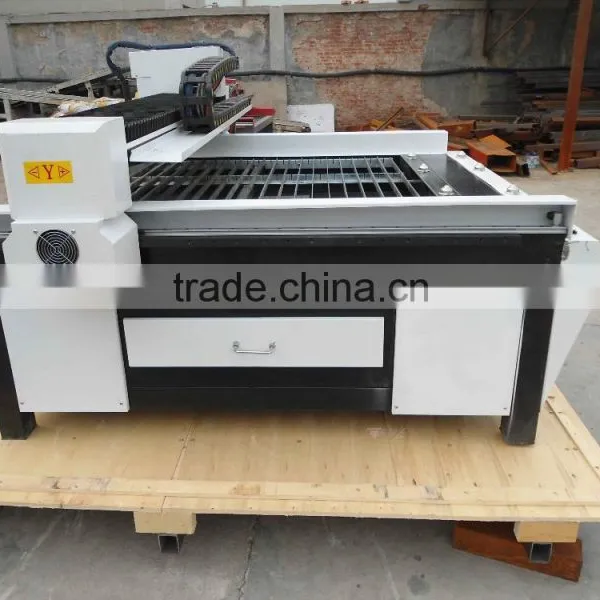

Metal Cutting Machine Plasma Metal Cutting With Work Area 1200*1200mm

Name: Metal Cutting Machine Plasma Metal Cutting With Work Area 1200*1200mm
Brand: ARTSIGN
SKU: 121932243
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

ARTSIGN

Jinan Artsign Science & Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao shanghai tianjin wuhan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name ARTSIGN

Model Number CPC-1212

Voltage 3-phase 380V/2-phase 220V 50HZ/60HZ

Dimension(L*W*H) 1620*1060*990

Weight 400KG

Certification CE ISO

Warranty 2 Years

After-sales Service Provided Overseas service center available

Technical parameters:

Model	CPC-1290	CPC1212
Work area(mm)	1200*900	1200*1200
Cutting thickness	2-10mm (plasma power 65A included)
Optional plasma power	45A , 65A, 85A, 100A ,130A,200A (American Hypertherm plasma power ) 40A, 63A, 100A, 160A, 200A, 300A (Chinese plasma power)
Plasma power	American Hypertherm /Chinese plasma power
Voltage/Frequency	3-phase 380V/2-phase 220V 50HZ/60HZ
Power	<12KW
Drive type	Step drive/Servo drive(optional)
Files transfer	USB
Picture format supported	AI/DXF/PLT,AutoCAD
	AI,DXF/PLT, AutoCAD, UCANCAMV9 International standard code
Work mode	Untouched arc striking
Cutting air source	Compressed air
Cooling method	Air cooled
Smoke exhaust system	Rear exhausting smoke
Net weight(kg)	300	400
Machine size(mm)	264017401440	16201060990
Gross weight(kg)	600	750
Packing size(mm)	274018401550	243520301530
