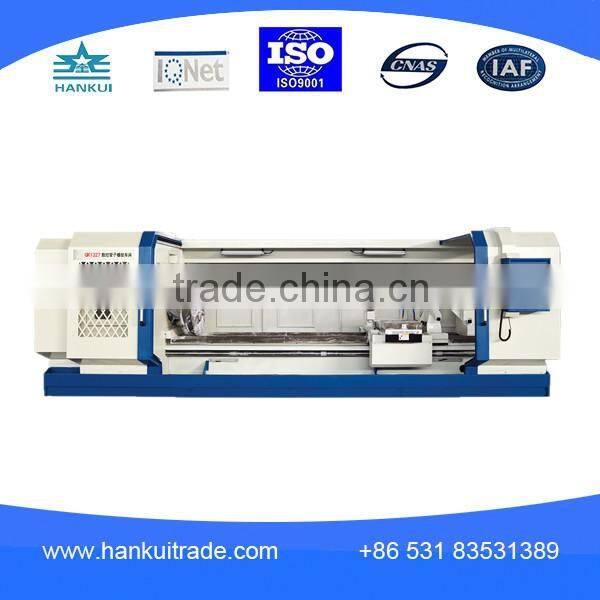

Help CenterQK1322 Fanuc Normal Cnc Turning Lathe
Related Products
-
QK1322 Fanuc After-sales Service Provided Wheel Lathe MachineUS$ 37,623 - 39,979MOQ: 1 Set -
QK1319 Fanuc Automatic Veneer LatheUS$ 37,000 - 39,000MOQ: 1 Set
-
QK1319 Fanuc New Condition Rims LatheUS$ 37,000 - 39,000MOQ: 1 Set
-
QK1313 Fanuc Automatic Maintenance of Lathe MachineUS$ 37,023 - 39,059MOQ: 1 Set
-
QK1313 Fanuc New Condition Lathe Collet ChuckUS$ 37,023 - 39,059MOQ: 1 Set
Export Products
1.The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle
box are all made of HT300 cast iron. The lathe feet is box type structure with symmetric
compact and reasonable structure which ensures the basic parts of the high rigidity and bending
resistance performance; The inside grid reinforced of lathe bed effectively ensure the rigidity and
accuracy of the Z axis strong cutting force. The basic parts are polished by resin sand and aging
treatment, and the surface of bed ways treated by supersonic frequency quenching up to 2mm,
which ensure machine’s long-term stability when working.
2.Mid-supporting plate and lathe bed slide surface are of plastics sticking. They are of fast
speed, removing eliminate intermittent creep, high rigidity, low friction, low noise , low
temperature rise and so on. Worked with automatic forced lubrication to improve the accuracy
of machine tools.
Product-related Data
Model and specifications |
QK1313 |
QK1319 |
QK1322 |
Guideway width |
550mm |
||
Max. swing over bed |
630 mm |
||
Max. swing over slide |
350mm |
||
Max. workpiece length |
1500mm/3000mm |
||
spindle thru-hole |
Φ130mm |
Φ200mm |
Φ225mm |
Max. Pipe external diameter |
126 mm |
196 mm |
219 mm |
Number of spindle speed |
18 steps |
12 steps |
12 steps |
Range of spindle speed |
16~820 r/min |
36~450 r/min |
36~450 r/min |
Tool post style |
Vertical 4 Station(standard) |
||
Thread range and number by British system |
28~2/40 types |
||
Thread range and number by metric system |
1~14/24 types |
||
Motor Power |
11kw |
||
Controller |
KND/FANUC/SIMENS |
||
Max. processing length of taper ruler |
500 mm |
||
Rapid feedrate speed |
4000mm/min |
||
Repeated positioning accuracy |
±0.002 |
||
machining accuracy |
IT7 |
||
Workpiece surface roughness |
Ra1.6 |
||
Bed quenching hardness |
HRC52 |
||
Machine net weight |
4200kg |
4400kg |
4500kg |
Transport Information
Packaging Information
Packaging Detail: High quality wooden case.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
If you need to know more about our products,please contact with us!
Factory Information
Our company is specializing in the production of CNC for 2 decades, and we have passed the
ISO9000 certification and the right of import and export. Our company has owned 10 patent
technologies at present, including the appearance, design, the utility model of machine and so
on. Andour company is a provincial high-tech enterprises.
Without any doubt, all of our items are with excellent quality and reasonable price, we can
product different kinds of machines according to your specific requirements, we hope that we
can help you, and enter business with you!
