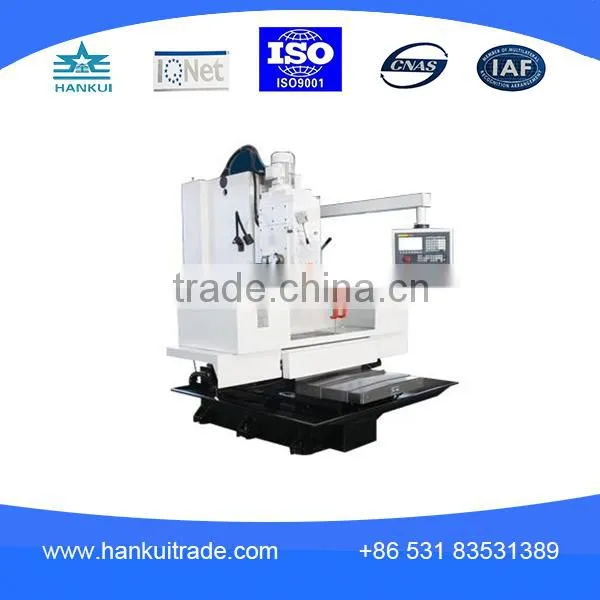

ZK5140I CNC Vertical Drilling machine
Main parameters |
unit |
ZK5140I |
Maximum hole diameter |
mm |
40 |
Spindle maximum torque |
Nm |
200 |
Maximum feed resistance |
N |
12000 |
Motor power |
KW |
3 |
Spindle travel (Z-axis) |
mm |
250 |
Spindle box travel (manual) |
|
350 |
Distance from Spindle center to column slide way |
mm |
335 |
Spindle speed |
R/min |
45-2000 12steps |
Bench size |
mm |
850×470 |
T slot |
mm |
18×4 |
Cutting feed rate(Z) |
Mm/min |
600 |
X-axis travel |
mm |
850 |
Z-axis travel |
mm |
620 |
Fast moving speed(XYZ) |
M/min |
15/15/3 |
Distance from Spindle center to table |
mm |
100-700 |
Positioning accuracy(X-Y) |
|
0.025 |
Repeat positioning accuracy(X-Y) |
mm |
0.015 |
Dimensions(L*W*H) |
mm |
2350×2150×2380 |
Machine tool net weight |
kg |
2950 |
ZK5140I CNC Vertical Drilling machine Packing
1. MOQ
1 set
2. Delivery Time
Some of the products are in stock and others need about 2 month or more .
3. Warranty
13 month after the B/L date.
4. Training and maintenance
After the contact signed, you can send someone to our company for professional operation traning.
CERTIFICATE
Why choose us?
1. faithful: Honest is the key to communication.
2. High quality : 20 years rich experienced assembly skills,
Main parts imported from Japan, Germany, Taiwan etc.
3. Service: Customer first
4. Timely : Reply your inquiry within 8 hours
Delivery machines within agreement time.
5. Price: win-win price.
