MV2025TTLE Mini Wireless COFDM Video Sender

MV2025TTLE Mini Wireless COFDM Video Sender thumbnail-1
MV2025TTLE Mini Wireless COFDM Video Sender photo-1
Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALLTECH
Model Number:
MV2025TTLE
Contact Supplier Request Quote Chat Now
Shenzhen Keweitai Enterprise Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ALLTECH
Model Number MV2025TTLE

Specifications

Mobile and NLOS effects.
500mw output
DVD video quality,narrow bandwitdh
300M-2400M frequency
Covert mission used



MV2025TTLE mini transmitter is highly integrated digital video transmission equipment that can realize wireless video transmission in mobile and NLOS (Non line-of-sight) conditions. With professional clothes and pinhole camera, it can be used in public security bureau or security department to finish covert missions (technical investigation and covert intelligence gathering). It can be also applied in emergency and evacuation, railway, marine and so on. We can use the mini transmitter with a specially designed multifunctional amplifier to meet the requirement of longer transmission range

MV2025TTLE Mini Wireless COFDM Video Sender

Product Application and Features:

COFDM modulation, Stable transmission

MPEG-2 video compression, DVD video quality

Mobile and NLOS(Non line-of-sight) transmission

High strength aluminium enclosure, dustproof, waterproof and shockproof

Lithium battery for power supply(continuous working time of every battery is an hour)

Modular design and highly integrated

Adjustable working frequency

Can be used conveniently with the specially designed clothes

Transmission security by encryption of AES 128 bit/ ALLTECH Basic Scrambling

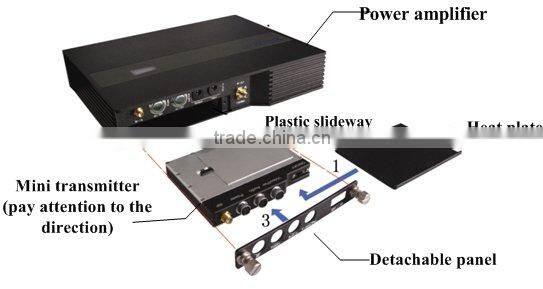

Matched with multifunction amplifier for longer range requirement. The transmission range can be up to 80km in LOS (line-of-sight) condition



The product is an ideal solution in remote surveillance, designed specially for the covert intelligence gathering market. By using a pinhole camera, the first responder can catch live scenes at the accident ground. Then the mini transmitter sends real-time images to the receiving center.





Transmitter Specification

Modulation

 COFDM

Bandwidth

1.25 / 2.5 /6 / 7/ 8MHz optional

Constellation

QPSK,16QAM,64QAM

FEC

 1/2,2/3,3/4,5/6, 7/8

Guard Interval

1/4, 1/8, 1/16, 1/32

Video Signal

1Vp-p@75Ω,PAL

Resolution

720x576 @ 8MHz, 352x288 @ 1.25MHz

Video Compression

 MPEG-2  (4:2:0) / MPEG-4 (optional)

Frequency

300MHz-399MHz,400-500MHz (customized),

560MHz-760MHz,760MHz-860MHz (customized

1.0-1.4GHz (customized,2.3-2.5GHz (customized

Frequency is adjustable continuously

Transmission Range

LOS: more than 20kms  (mini transmitter works only)

LOS: more than 80kms  (mini transmitter works with amplifier)

 NLOS: more than 500m  (mini transmitter works only)

NLOS: more than 1-2km  (mini transmitter works with amplifier)



Working Voltage

AC 220V /DC12V



Motion Speed

more than 180km/h



Power Interface

 Standard



RF Interface

Standard N female



Protection

Antirust and shockproof



Power Output

22dBm-24dBm (up to 33 dBm with the amplifier)



Latency

≤80ms



Battery

50 minutes continuous working time



Temperature

-20°C~+50°C



Humidity

≤95%



Encryption

AES 128 bit / ALLTECH Basic Scrambling (RS232 serial port)



Second Harmonic

≤-43dB



Dimension

Mini transmitter  109.5mm*84mm*17mm



Power amplifier   251mm*195mm*47mm



Weight

0.27kg (mini transmitter + battery(0.22kg))



2.7kg ((mini transmitter + power amplifier)
