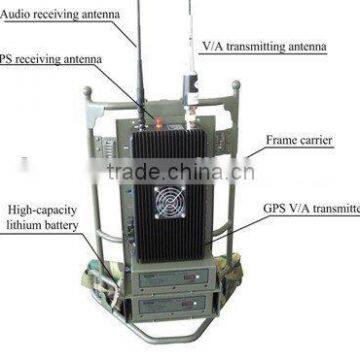

Low Lattency COFDM Wireless Transmitter

Name: Low Lattency COFDM Wireless Transmitter
Brand: ALLTECH
SKU: 121902933
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ALLTECH

Model Number:

MV2025TBHE

Shenzhen Keweitai Enterprise Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ALLTECH

Model Number MV2025TBHE

Specifications

Features:
0.2-4w power output;
D1 video quality;
bandwidth adjustable;
frequency customized;

Functions & Features:

n Super low latency

n ABS/AES encryption with encryption level optional

n Working frequency adjustable within specified range

n Built-in high performance power amplifier

n Audio and video signal simultaneously input, one-channel video input

n Left/right channel audio and unbalanced stereo input

n Video input PAL/NTSC optional (default as PAL)

n Transmitter power output adjustable

n Fully-enclosed waterproof case, dustproof and good impact resistance

n Distance no less than 30km in LOS and 2-5km in NLOS

Power Supply
Working voltage V	DC12V~DC16V
Working current A	≤2.8A @ DC12.5V
Video Transmission
Frequency output range	300MHz~450MHz,560~760MHz or user customized
RF bandwidth MHz	1.25/2.5MHz or 6/7/8MHz
Power output	21~36dBm power output adjustable with 1dB step
C/N	≥28dB@32dBm
SHG	>52dBc
Encryption	AES/ALLTECH Basic scrambling
Modulation	COFDM
Constellation	QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz
FEC	1/3, 2/3 @ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz
Carrier	2K
GUI	1/4, 1/8, 1/16, 1/32 optional
Video encoding	MPEG-2/MPEG-4
Video input level	1~1.2Vp-p @ 75Ω
Video input format	PAL/NTSC
Video resolution	720x576(PAL) 720x480(NTSC)
Video white bar amplitude mV	650~720mV
Video synchronous amplitude mV	260~275mV
Video amplitude-frequency characteristic dB	0~4.8MHz	-0.5~1.5
	5.5MHz	-4.0~1.5
Audio input	Left/right channel, stereo
RS232 control interface	Standard RS232 level, 9600, 8, N, 1
RS232 data interface	Standard RS232 level, support 1200~115200
Delay	60ms
Environment
Protect standard	IP66, dustproof and rainproof
Working temperature	-25°C~55°C
Storage temperature	-40°C~70°C
Appearance
Dimension	238mm×140mm×75mm
Weight	2.5Kg
