COFDM Mini Size Video Transmitter

Name: COFDM Mini Size Video Transmitter
Brand: ALLTECH
SKU: 121902843
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ALLTECH

Model Number:

MV2025TWSE

Shenzhen Keweitai Enterprise Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ALLTECH

Model Number MV2025TWSE

Functions & Features:

Super low latency
Working frequency and RF bandwidth self-adapted within specified range
RS232 data unidirectional transmission
Low power consumption, small size and portable usage
Separately workable and also compatible with external power amplifier
Spy vest and pin-hole camera compatible
High-strength aluminum alloy case

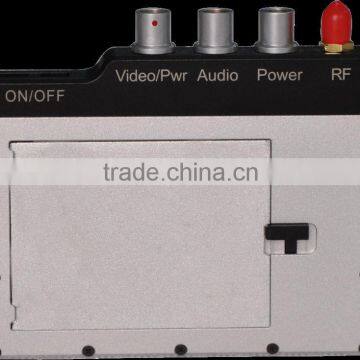

Military aviation plug for A/V and power interfaces; different pins for different function interface to avoid misplug
Removable lithium battery, easy operation and battery replacement

Specifications:

Power Supply
Power supply interface	Standard interface
Power supply	Combined transmitter: DC14.8V Mini video transmitter: DC7.8V
Video Transmission
Frequency output range		300MHz~1.2GHz or user customized
RF bandwidth MHz		6/7/8MHz or 1.25/2.5MHz
Power output		200mW
C/N		≥28dB@23dBm
SHG		>52dBc
Modulation		COFDM
Video encoding		MPEG-2/MPEG-4
Encryption		AES/ALLTECH Basic scrambling
Constellation		QPSK/16QAM @ 1.25/2.5MHz QPSK/16QAM/64QAM @ 6/7/8MHz
FEC		1/3, 2/3 @ 1.25/2.5MHz 1/2, 2/3, 3/4, 5/6, 7/8 @ 6/7/8MHz
Carrier		2K
GUI		1/8, 1/16 @ 1.25/2.5MHz 1/4, 1/8, 1/16, 1/32 @ 6/7/8MHz
Video input level		1~1.2Vp-p@75Ω
Video input format		PAL/NTSC
Video resolution		720x576(PAL) 720x480(NTSC)
Video amplitude-frequency characteristic dB		0~4.8MHz	-0.5~1.5
		5.5MHz	-4.0~1.5
Audio input		Left/right channel, stereo
RS232 control interface		Standard RS232 level, 9600, 8, N, 1
RS232 data interface		Standard RS232 level, support 1200~115200
Delay	Less than 60ms
Environment
Working temperature	-25°C~55°C
Storage temperature		-40°C~70°C
Ambient humidity	No less than 95%
Protect standard	Rust protection and shakeproof
Appearance

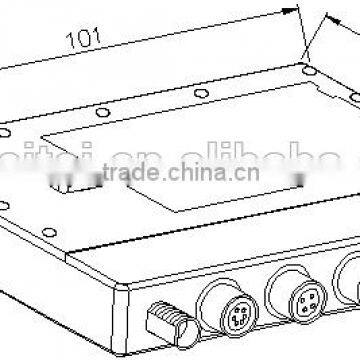

Dimension	101mm81mm15mm
Weight	0.28Kg (include battery)
RF interface	Standard SMA
