UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty

UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-1
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-2
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-3
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-4
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-5
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty thumbnail-6
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-1
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-2
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-3
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-4
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-5
UL CUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty photo-6
US$ 50 - 420 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
LED Commercial Industrial Lighting LED Retrofit
Certification:
UL CUL DLC CE RoHS
Contact Supplier Request Quote Chat Now
Shanghai Pozeen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type LED Commercial Industrial Lighting LED Retrofit
Certification UL CUL DLC CE RoHS

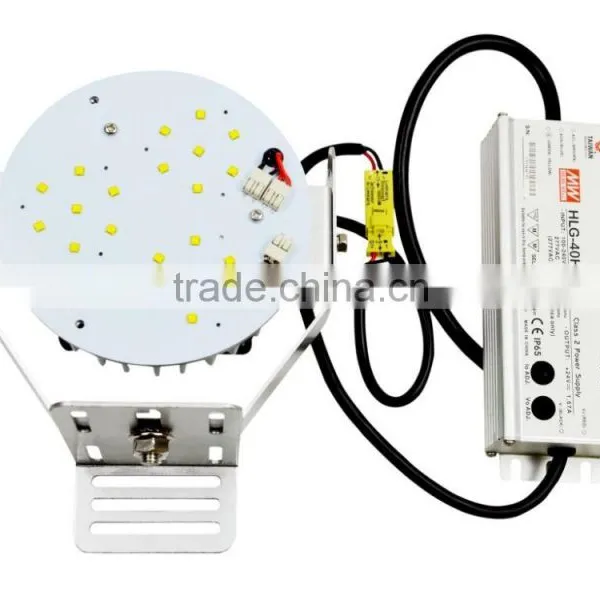

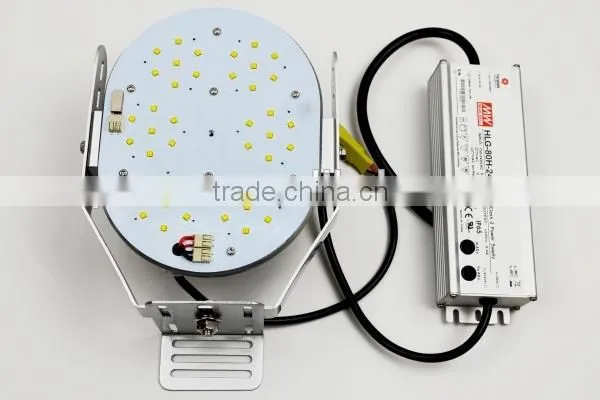

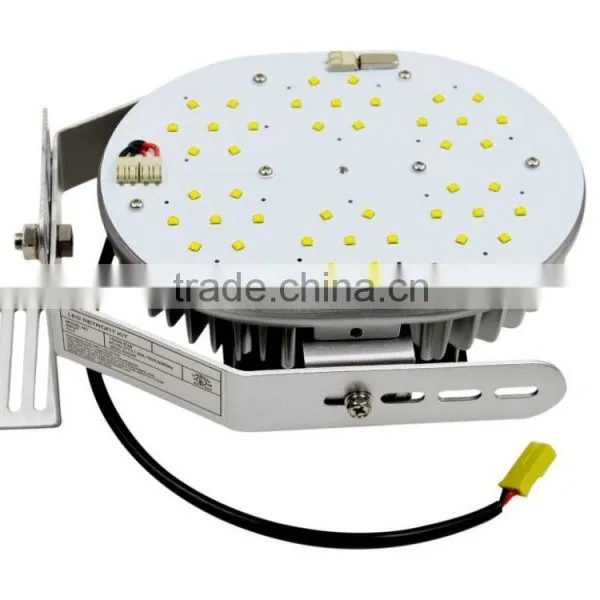

Product Description

  - UL, cUL listed  DLC listed
- CREE LM80 LEDs
- Mean Well LED driver
- Available in 40W, 60W, 80W, 100W, 120W, 150W, 185W, 240W, 320W and 400W
- 120-277VAC input (347V/480V optional)
- 5000K CCT
- Typical 90 LPW
- Silver finish (black, white optional)
- 50,000 hours
- 5 years warranty



CONSUTRUCTION & MATERIALS

  • Heavy duty one-piece die cast aluminum heat sink

  • Professional and clean designed metal core printed circuit board (PCB) with Wago® SMD PCB connector

  • Proven reliable Sunon® LED fan

  • Equipped with Wago® quick disconnect between LED driver and LED module

  • Equipped with strain relief clamp to protect electrical cables and soldering points

  • Integral thermal control sensor which reduces drive current, when ambient temperatures exceeds rated temperature

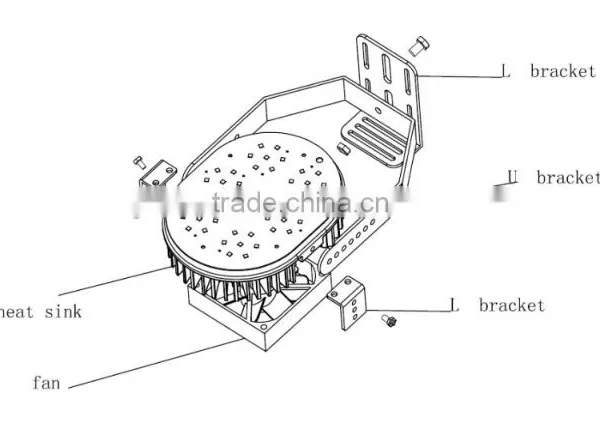

MOUNTING & WIRING

  • Horizontal mounting with “L” bracket

  • Or vertical mounting with “I” bracket

  • Or custom plate mounting with plate adaptor

ENVIRONMENTAL SYSTEM

  • Retrofit module inside of indoor and outdoor lighting fixtures

ELECTRICAL SYSTEM

  • External Mean Well LED driver, with Wago® quick disconnect on output end

  • Universal input voltage 120-277VAC (200-480VAC optional), 50/60Hz

OPTICAL SYSTEM

  • High performance CREE LED

  • High precision optics optional

  • Color temperature available in 5000K and 5500K

  • Minimum 50,000 hours life

LIGHTING CONTROL

  • Available for special order, consult factory for lead time

LONGEVITY & WARRANTY

  • 50,000 hours L70 lifetime
  • 5 years warranty



INTENDED APPLICATIONS

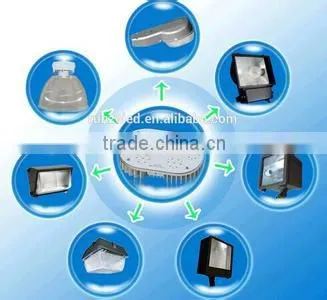

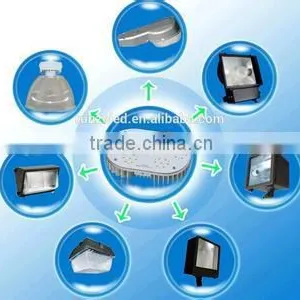

  • LED retrofit kits for conventional shoebox, cobra head, wall pack, canopy & high bay fixtures.
  • UL cUL DLC Listed 35W-400W Outdoor Luminaires LED Retrofit Kits 5 Years Warranty
Packaging & Shipping









Detailed Images



How to install



1) Fix the LED retrofit kit.
2) Remove the plastic cover from the LED head.
3) Remove the existing component reflector and ballast.
4) Put the driver in the place of the previous ballast.
5) Mount the LED retrofit kit into the socket.
6) Connect the electric wires
Remark: USE A LICENSED ELECTRICIAN TO PERFORM THE INSTALLATION

Accessories

 L bracket

Y bracket

I bracket
