Specifications
HD QPSK Demodulator (IRD)HD IRD with CI slot
MPEG-2 &MPEG-4 Part 10 ( AVC high profile 4.1)
UDP protocol
Unicast/Multicast
HD QPSK Demodulator (IRD) ,Digital satellite receiver, satellite receiver hd
Outline

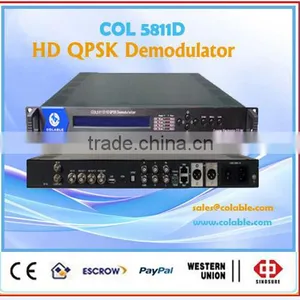

COL5811D HD IRD with CI slot can decode transport stream from ASI, tuner or IP sources into audio and video signal.
Features
Factory optional for DVB-S/-S2/-T/-C, ISDB-T tuner inputs
DVD-C HD IRD:
Input Frequency Range: |
47-862MHz |
Symbol rate: |
0.45-7.0MBauds |
Input Level: |
-15-20dBmV |
Demodulation Mode: |
16/32/64/128/256 QAM |
DVD-S HD IRD:
Input Frequency Range: |
950-2150MHz |
Symbol rate: |
2-45Msps |
Signal Strength: |
-65- -25dBm |
FEC Demodulation: |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
DVD-T HD IRD:
Input Frequency Range: |
146-862MHz |
Bandwidth: |
8MHz (2, 6, 7MHz Optional) |
Input Level: |
-87- -20dBm |
Constellations: |
QPSK,16QAM,64QAM |
FEC Demodulation: |
1/2, 2/3, 3/4, 5/6, 7/8 |
DVD-S2 HD IRD:
Input Frequency Range: |
950-2150MHz |
Input Level: |
-65- -25dBm |
Code Rate: |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
Symbol ratio: |
1-45Msymbols |
Input Impedance: |
75Ω |
Demodulation Mode: |
QPSK, 8PSK |
Frequency Stepping: |
500 KHz |
ISDB-T HD IRD:
Input Frequency Range: |
170~230Mhz and 470~860Mhz |
Bandwidth: |
6MHz ( 6, 8MHz Optional) |
Input Level: |
0~-95dBm |
Constellations: |
QPSK,16QAM,64QAM |
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
Specifications
DVB-CI module |
Descrambling procession |
Supporting European DVB-CSA |
Smart Card interface |
ISO7816 |
|
Interface Card separation |
PCMCIA |
|
ASI input |
BNC connector 1 route input; 2 routes output |
Input impedance 75Ω |
Maximum transmitting rate |
54Mbps |
|
ASI output |
BNC connector 1 route input; 2 routes output |
Output impedance 75Ω |
Maximum transmitting rate |
54Mbps |
|
Ethernet |
Connector |
RJ-45 |
Interface Type |
10/100 Base-T |
|
Protocols |
TS Over IP : UDP, NMS : UDP |
|
Video output |
CVBS×1 (BNC) |
576i 25 fps, 480i 29.94 fps |
YPbPr×1 (BNC) |
1080i 25 ,29.94fps 720p 50 59.94fps |
|
SDI×1 (BNC) |
1080i *25 ,29.94fps;720p 50 59.94fps 576i*25 fps480i*29.94 fps |
|
HDMI×1 |
1080i*25 ,29.94fps720p * 50 59.94fps 576i*25 fps;480i*29.94 fps |
|
Audio output |
Stereo unbalanced audio |
BNC interface |
Stereo balanced audio |
XLR interface |
|
Digital audio |
SPDIF |
|
General |
Dimensions ( L×W×H) |
482mm×360mm×45mm |
Approx weight |
3.2kg |
|
Power |
<20W(Max) |
|
Temperature range |
0~45°C (Operation); -20°C~80°C (Storage) |
