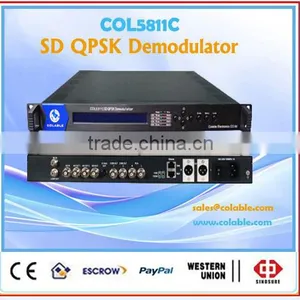

Mpeg-2 DVB demodulator with asi out,DTV decoder,DVB-S QPSK Demodulator (IRD) , DVB-CSA SD TV demodulator COL5811C

Specifications

1. MPEG-2 digital & Fully DVB compliant
2. PAL / NTSC format TV
3. 2 CVBS outputs, 2 AUDIO outputs
4. 2 PCMCIA Interfaces

Outline





COL5811C QPSK Demodulator (IRD) with CI slot can decode transport stream (compliant with MPEG2) from ASI or tuner into audio & video signal. With the help of CAM module, it can decrypt the encrypted programs in the input TS. It also can encapsulate the input TS into IP pocket and output in UDP protocol. Apart from this, the IRD has 2 ASI outputs and digital video & audio output interfaces, including SD-SDI, S-video and XLR, etc. In a word, the strong network management function provides user more convenient operation experience.



Features



ü MPEG-2 digital & Fully DVB compliant

ü QPSK demodulation support

ü Two routes MPEG-2 transport stream output

ü QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps

ü User can edit various satellites and transponders information

ü PAL / NTSC format TV

ü Can receive C / Ku-band SCPC / MCPC information from Satellite

ü 256 colors display

ü PAL / NTSC automatic conversion

ü Channels automatically saved

ü 2 CVBS outputs, 2 AUDIO outputs

ü 2 PCMCIA Interfaces

ü One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management

ü 2 TS stream outputs, One TS Stream Input

ü One S-Video

ü 2 separate CIM modules, each supports up to decrypt 8 channel Programs

ü One LNB input, one LNB output

ü 2 Video outputs



DVB-C SD IRD:











Specifications



Ethernet	Connector	RJ-45
	Interface Type	10/100 Base-T
	Protocols	TS Over IP: UDP ; NMS: UDP
DVB-CI	Descrambler	DVB-CSA
	Smart Card interface	ISO7816
	Separate (between TS, converter and card), interface	PCMCIA
Video output	2 CH CVBS	BNC interface,
Audio output	Stereo unbalanced audio	BNC interface,
ASI input	BNC interface	Input impedance 75
	Max transport rate	54Mbps
ASI output	BNC interface	Output impedance 75
	Max transport rate	54Mbps
	Physics interface	DB9 Female
General	Voltage	AC :110-240V~, 50/60Hz
	Power	<20W(Max)
	Temperature	0~40°C(Operation); 10°C~35°C(Storage)
	Humidity	10%~90%
	Dimension	44mm*482mm*360mm
	Approx weight	3.2kg





Front panel:













Rear panel:























                                                                            DVB-S/S2 REAR PANEL













                                                                            DVB-C/-T    REAR PANEL







1	RF in interface
2	RF LOOPOUT interface
3	ASI IN: stream input interface
4	ASI OUT1: stream output interface
5	ASI OUT2: stream output interface
6	SDI-OUT: SD digital parallel output interface
7	S-video out interface:
8	CVBS OUTPUT interface 1
9	CVBS OUTPUT interface 2
10	RCA sound channel left/right output
11	10M/100M network indicator
12	Ethernet interface
13	Balance audio output interface
14	Integrated power switch and socket
15	Grounding pole
