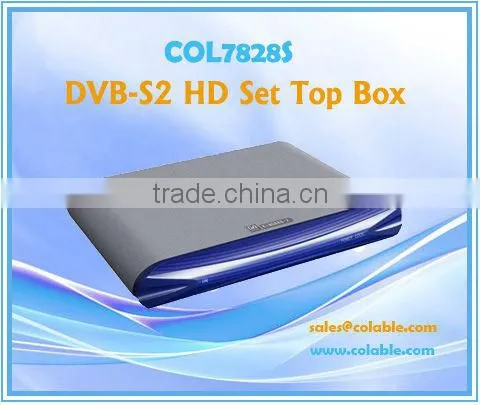

COL7828S DVB-S/-S2 Set Top Box With HDMI Port

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Colable
Model Number	COL7828S

1.Compliant with the DVB-S2 digital TV reception standards
2.HDTV / SDTV MPEG-2/MPEG-4/H.264 decoding
3.HDMI port

Features

Specifications

Chipset and Memory	Main Chipset: CSM1201@220MHz
	Flash: 8M
	DDR Memory: DDR2-2Gbit/667Mbps
Power	Input power: AC100~240V 50/60Hz
	Maximum Power consumption: 25W
	Standby power: ≤1W
Interface	RF signal input: x1
	RF signal loop out: x1
	Video output: RCA x1
	Video output: SCART x1
	HDMI port: x1
	YPbPr port: x1
	Audio output: Stereo RCA x1
	Digital Audio output: COAXIAL/SPDIF x1
	USB2.0 port(for External USB PVR function): x1
Tuner	Receiving Frequency: 950~2150MHz
	Input signal level: -25dBm~-65dBm(75ohm)
	LNB Control: DiSEqC1.0/DiSEqC1.2/22KHz
	LNB Power: 13V/18V(Max 350mA)
	RF Loop out function
Demodulation	Demodulation: QPSK (SCPC/MCPC)/8PSK
Demodulation	Symbol rate: 1.5~45MSPS
Video Decoding	Compliant with: MPEG2-HL/ML, H.264-L4.1
	Aspect ratio: 4:3; 16:9
	Video format: PAL / NTSC / SECAM
	Resolution: 480i / 576i/720P/1080i
Audio Decoding	Compliant with: MPEG-1/2/3, AC-3, HE AAC
	Sampling frequency: 32/44.1/48KHZ
	Frequency Response: 20HZ~20KHZ
	Output Level: Adjustable (600 unbalanced)
