Specifications
1.DVB-S standard2.PAL/NTSC auto switching, Program pre- viewing
3.Locking functions, Power-off memory, LED display

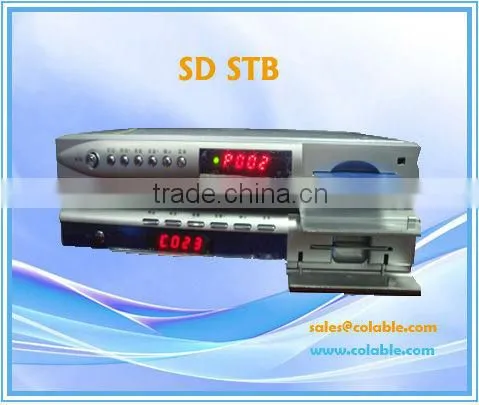

DVB-S Set Top Box
Outline
The device meets the DVB standard and supports English and Chinese interfacing as well as multi condition receiving system, PAL/NTSC auto switching, Program pre- viewing.It supports text messaging and program editing,mobile and deleting etc. It contains the Locking functions, Power-off memory, LED display, one key return. It supports single sound channel, dual sound channel and stereo channel. The device contains a range of games and supports Loader technology, on-line upgrade, on display of advertises and advertises menu and Power Adapter (optional).
Specifications
Input Feature | |||||
Input frequency | 250 ~ 1200MHz | symbol rate | 2~40Mbauds | ||
Input impedance | 75Ω (F) | Input level | -75 ~ -25 dBm | ||
Video Feature | |||||
Decode format | MPEG-2 | Bit rate | 2 ~ 15Mbps | ||
Output format | NTSC/PAL | Video output | 1V±20mV(p-p) | ||
Image resolution | 720×576 | Frequency feature | ±0.8dB(≤4.8MHz) | ||
Differential Gain | ≤8% | Differential phase | ≤8° | ||
Light delay | ≤50ns |
|
| ||
Audio Feature | |||||
Audio output | L/R | Audio S/N | ≥70dB | ||
Output type | RCA | Audio distortion | ≤1.5% | ||
Left right channel level difference | ≤0.5dB(60Hz~18KHz) | ||||
Signal demodulate | |||||
Demodulate mode | QPSK | LNB voltage | 0V / 18V | ||
Power supply | AC100V~240V | Power Consumption | < 20W | ||
