Specifications
Set Top Box DVB-C satellite receiverets the DVB -C standard
2.multi condition receiving system
3.good price

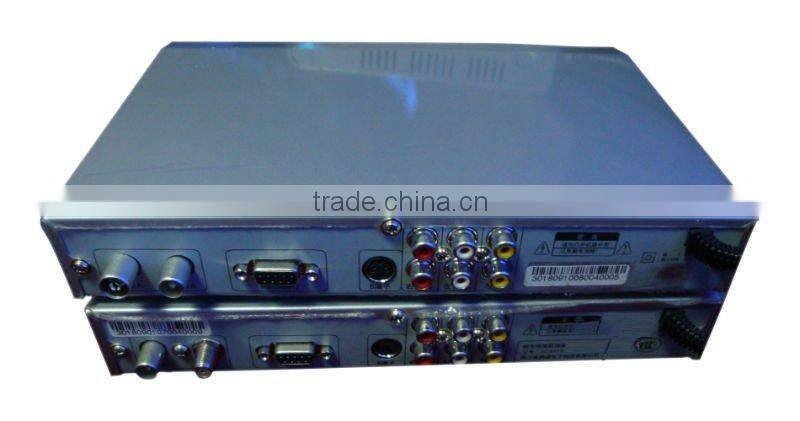

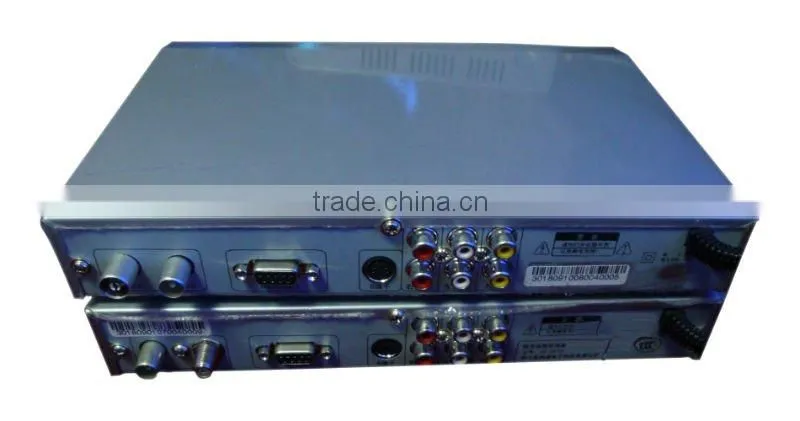

Set Top Box DVB-C satellite receiver
Outline
COL370i meets the DVB –C standard and supports English and Chinese interfacing as well as multi condition receiving system, PAL/NTSC auto switching, EPG pre-viewing. It supports text messaging and program editing, mobile and deleting etc. It contains the Locking functions, Power-off memory, LED display, one key return and supports single voice channel, dual voice channel and stereo channels. It contains a range of games and supports Loader technology, on-line upgrade, on display of advertises and advertise menu.
Specifications
Input Features | |||||||
Input frequency range |
48 ~ 862MHz |
Symbol rate range |
3.6~6.952MS/S |
||||
Input impedance |
75Ω |
Input level |
35 ~ 85 dBuV |
||||
Video Features | |||||||
Decode format |
MPEG 2&MPEG4 |
Bit rate |
2 ~ 15Mbps |
||||
Output format |
NTSC/PAL |
Video output |
1V±20mV(p-p) |
||||
Image resolution |
720*480 /720*576 |
Frequency feature |
±0.8dB(≤4.8MHz) |
||||
Differential Gain |
≤8% |
Differential phase |
≤8° |
||||
Light delay |
≤50ns |
Noise figure |
6dB(typical) 9dB(max) |
||||
Audio Features | |||||||
Audio output |
L/R |
Audio S/N |
≥70dB |
||||
Output type |
RCA |
Audio distortion |
≤1.5% |
||||
Left right channel level difference |
≤0.5dB(60Hz~18KHz) |
||||||
Signal demodulator | |||||||
Demodulate mode |
QAM 16/32/64/128/256 |
LNB voltage |
0V / 18V |
||||
Power supply |
AC100V ~ 240V |
Power Consumption |
<15W |
||||
