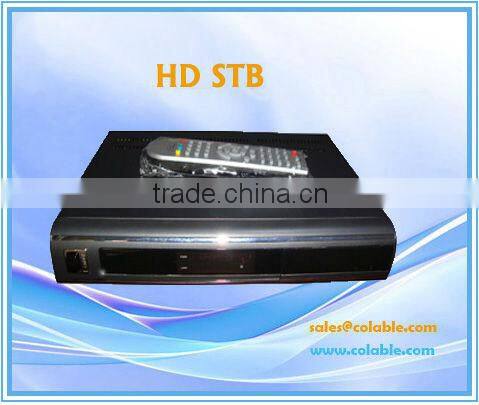

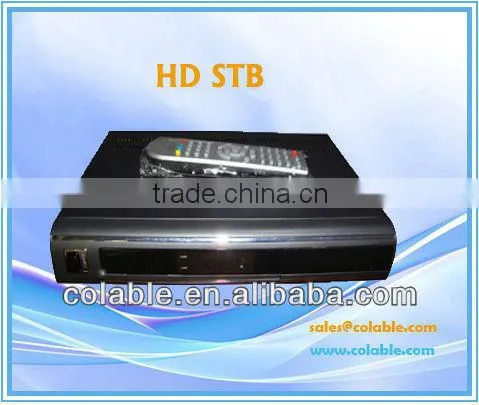

DVB-S2 HD Set Top Box 1080 set top box HDTV decoder HDTV STB
- 100000 Piece / Pieces per Month
- Chengdu
- T/T Credit Card PayPal
-
In stock PJ-208B earphone audio socket 4-pin 2.5 plug earphone socket plastic plug
-
In stock PJ-208A earphone audio socket 4-pin 2.5 plug-in anti wolf alarm plug
-
simar popular 22/24 inch self-reversing monitor tempered glass mirror presidential conference meeting speech teleprompter
-
simar Best selling 20/22/24/27/32 inch self-reversing flip monitor M-ZYS20/22/24/27/32 teleprompter
-
17/20/22/24/27/32 inch Broadcasting studio prompter teleprompter for recording
-
NIORFNIO T50M 50W FM transmitter, high-power USB playback farm application 5-kilometer range
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Colable | Model Number: | COL7828S |
Product Description
Specifications
1.Support HDTV / SDTV MPEG-2/MPEG-4/H.2642. 480i / 576i/720P/1080i
3. DVB-S/S2 digital TV signal modulated in QPSK/8PSK
Features
ü Fully compliant with the DVB-S2 digital TV reception standards
ü Support HDTV / SDTV MPEG-2/MPEG-4/H.264 decoding
ü Support 480i / 576i/720P/1080i
ü Convenient auto search function
ü Intelligent graphical user interface design
ü Capacity for storing up to 2000 transponders and 4000 channels
ü Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK
ü Input frequency range 950MHz-2150MHz
ü Support DiSEqc1.0/DiSEqc1.2
ü Reception for SCPC/MCPC. C/Ku-Band reception
ü Fast channel selection
ü Favourite Channel Edit, parental lock
ü Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes
ü Support USB 2.0 and OTA software upgrade
ü Support USB 2.0 PVR. MP3, JPG photo playback
Specifications
Chipset and Memory | Main Chipset: CSM1201,220MHz |
Flash: 8M | |
DDR Memory: DDR2-2Gbit/667Mbps | |
Power | Input power: AC100~240V 50/60Hz |
Maximum Power consumption: 25W | |
Standby power: ≤1W | |
Interface | RF signal input: x1 |
RF signal loop out: x1 | |
Video output: RCA x1 | |
Video output: SCART x1 | |
HDMI port: x1 | |
YPbPr port: x1 | |
Audio output: Stereo RCA x1 | |
Digital Audio output: COAXIAL/SPDIF x1 | |
USB2.0 port(for External USB PVR function): x1 | |
Tuner | Receiving Frequency: 950~2150MHz |
Input signal level: -25dBm~-65dBm(75ohm) | |
LNB Control: DiSEqC1.0/DiSEqC1.2/22KHz | |
LNB Power: 13V/18V(Max 350mA) | |
RF Loop out function | |
Demodulation | Demodulation: QPSK (SCPC/MCPC)/8PSK |
Symbol rate: 1.5~45MSPS | |
Video Decoding | Compliant with: MPEG2, HL/ML, H.264 L4.1 |
Aspect ratio: 4:3; 16:9 | |
Video format: PAL / NTSC / SECAM | |
Resolution: 480i / 576i/720P/1080i | |
Audio Decoding | Compliant with: MPEG-1/2/3, AC-3, HE AAC |
Sampling frequency: 32/44.1/48KHZ | |
Frequency Response: 20HZ~20KHZ | |
Output Level: Adjustable (600 unbalanced) |
