Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > H.264 HD DVB-C STB.

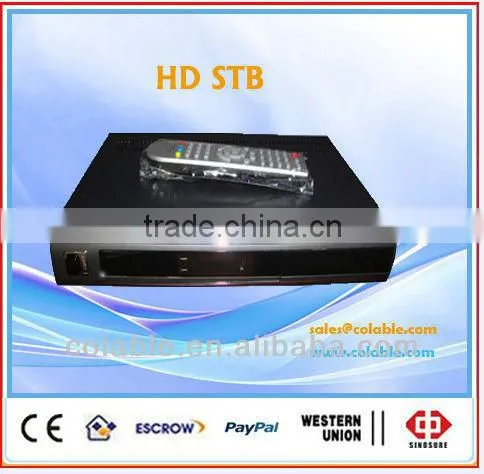

H.264 HD DVB-C STB.

Name: H.264 HD DVB-C STB.
Brand: COLABLE
SKU: 121887779
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL7105C

Contact Supplier Request Quote Chat Now

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL7105C

Specifications

DVB-C HD STB
1.MPEG2/H.264/AVS Decoding
2.Compound Audio and video output
3.RS-232 interface for software upgrade

COL7105C DVB-C HD STB

Features:

² MPEG2/H.264/AVS Decoding

² Compound Audio and video output

² RS-232 interface for software upgrade

² Support software upgrading online and USB upgrading

² Memory function for power off

² PAL/NTSC auto identify

² Embed several game

² Support NVOD

² Support Mosaic program

² Support playing USB electronic photo or picture and slide

² PVR record

² Support single/double network

² Support CAS e-mail, OSD

² Support data broadcasting system

² Support picture show when power on device and can upgrade the picture if needed

² Support EPG

²The max rate for distinguish rate to showing rate is 1920x1080x60p

Specification

item	specification
CPU	RTD2882Q	STi7105
Central frequency	270MHz	450MHz
Flash memory (MByte)	8	16MByte(SPI)+1GByte(NAND)
SDRAM/DDR/DDR2 (Mbit)	512 DDR	1G DDR2x2
demodulation	DC2000	TDM5510

	Work frequency	110~862MHz
	Input resistance	75Ω
	Input level	Min signal level(64QAM)≤34dBuv Max signal level(64QAM)≥100dBuv
	demodulation	≤24dB(64QAM, 6.875Mbaud)
	symbol rate	1~6.952MS/S
	Noise value	Typical:6dB, Max: 9dB
	CH bandwidth	8MHz
	Demodulation mode	Based on DVB-C 16/32/64/128/256QAM
Input output interface	Rf input	Imperial F
	Rf loop output	IN-IEC 169-1 male
	Video	1 rute compound video
	Stereo audio output	2 rute audio
	HD output	1 HDMI1.3( with HDCP),1 progressive scan
	fiber interface	1 S/PDIF
	S-VIDEO output	1 S
	Ethernet interface	1 RJ45 socket, 10/100M adaptive
	USB interface	1 USB 2.0(1 option at front panel)
	RS232	1 DB-9 female
	LED	4 digital with 7-section , support time showing
	video decode	HD:H.264/VC-1/MPEG2
	video decode	SD: H.264/VC-1/MPEG2/AVS
	Audio decode	Support MPEG 1, 2, MP 3, DD/DD+, AAC/AAC+, and WMA9/WMA9pro
	Distinguish rate, display rate	HD max:1920x1080x60p
		SD max: 720 x480 or 720x576,
		Support 4:3 and 16:9
