Specifications
Working frequency 2500 to 2700MHzL.O. :2033MHz

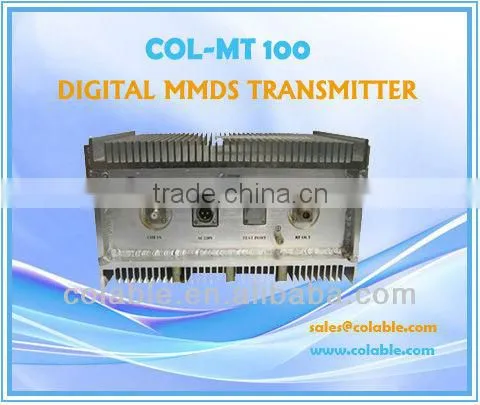

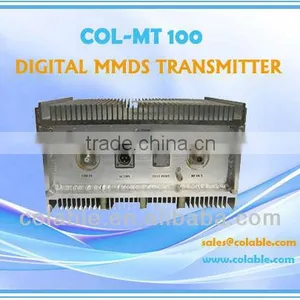

COL-MT 100 DIGITALMMDS TRANSMITTER
Outline
This manual introduces the main technical specifications, structure and electric connecting features of digital MMDS transmitter. Please check the equipment cell amounts and the status under the steps after careful reading, connect the equipment according to the demand and be sure to input the electric level, then finish the connection and use of equipment and system.
Features
üThe design of module groups is convenient to maintain the equipment.
üLow phase noise
üCompatible with analogue and digital signals transmission.
Specifications
Working frequency: |
2500 – 2700MHz |
The output power on the point of 1dB |
P1dB :50dBm |
L.O.: |
2033MHz |
AGC range: |
±8dB |
Pre-attenuation: |
7dB |
Input level: |
85dBuv/CH |
The digital output power: |
43dBm |
Interfaces: |
RF IN — FL10-75K RF OUT — N-50K TEST PORT — AK16-7 |
Power supply: |
AC220V |
The total power loss |
450W |
The total weight: |
65Kg |
Specification can be changed according to clients’ requirement | |
