MPEG-2 IP Encoder Wirh SDI ,CVBS,S-video Input COL5111AP

Name: MPEG-2 IP Encoder Wirh SDI ,CVBS,S-video Input COL5111AP
Brand: COLABLE
SKU: 121884787
Availability: InStock

Colable Electronics Co., Ltd.

US$ 1 - 2,700 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL5111AP

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL5111AP

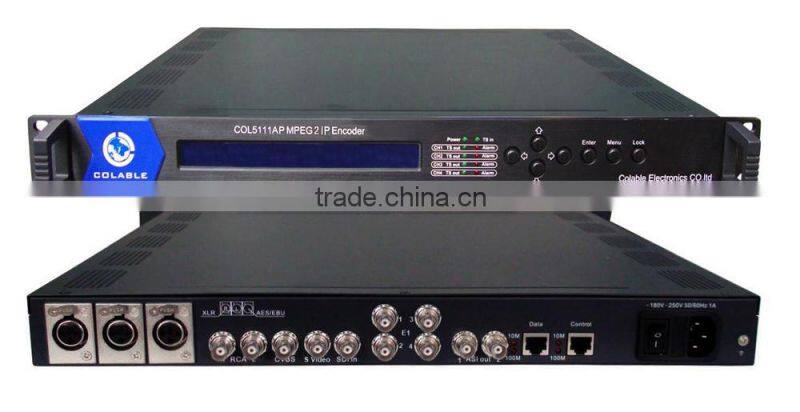

COL5111AP MPEG-2 IP Encoder

Outline

COL5111AP MPEG-2 Encoder is a professional audio &video encoding device ,and it can be with SDI input.

This device can support a variety of analog and digital audio and video input interface, the video input interface

include the CVBS, SVideo and SDI , and audio input interfaces include the balanced and unbalanced analog

input interface, the analog audio input interface( XLR) and digital audio input interfaces( AES/EBU).

Moreover, this encoder can encoder the SD audio & video which format is MPEG-2. In conclusion, its high

compatibility and excellent encoding quality makes this device widely be used in a variety of digital

broadcasting system.

Features

ü MPEG1 Audio Layer 2

ü Supports Composite, S-Video analog video input

ü MPEG-2 MP@ML(4:2:0) video encoding, advanced video pre-processing algorithms

ü Supports SD-SDI digital video input

ü Supports balanced and unbalanced analog audio inputs

ü Supports AES/EBU, SD-SDI digital audio input

ü Supports PAL, NTSC SD video formats

ü Supports D1,HD1,2/3D1,3/4D1 Resolutions

ü LCD / keyboard, network management

ü TS over UDP unicast/multicast output

Specifications

Input	Video	Analog composite video(CVBS), BNC interface
		S-Video interface
		SD-SDI, BNC interface
	Audio	Analog stereo audio(balanced), XLR interface
		Analog stereo audio(unbalanced), BNC interface
		AES / EBU digital audio, XLR interface
		SD-SDI embedded audio
Video	Resolution	720×480_60i, 720×576_50i(D1)
		544×480_60i, 544×576_50i(3/4D1)
		352×480_60i, 352×576_50i(HD1)
		480×480_60i, 480×576_50i(2/3D1)
	Encoding	MPEG-2 MP@ML(4:2:0)
	Bit-rate	0.8Mbps~20Mbps
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Layer 2
	Sampling rate	48KHz,44.1KHz,32KHz
	Resolution	24-bit
	Bitrate	64Kb/s—384Kb/s
Stream output		2-way ASI output, BNC interface
Stream output		SPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)
System function		LCD/keyboard, network management, Chinese and English language
System function		Ethernet software upgrade
General	Dimensions	480mm×456mm×45mm
	Temperature range	0~45℃(operation), -20~80℃(storage)
	Power Requirements	AC 110V/220V ±10%,50/60Hz
