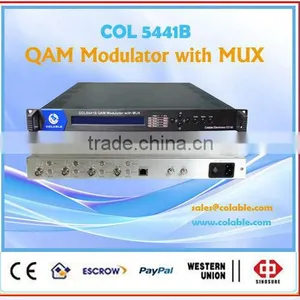

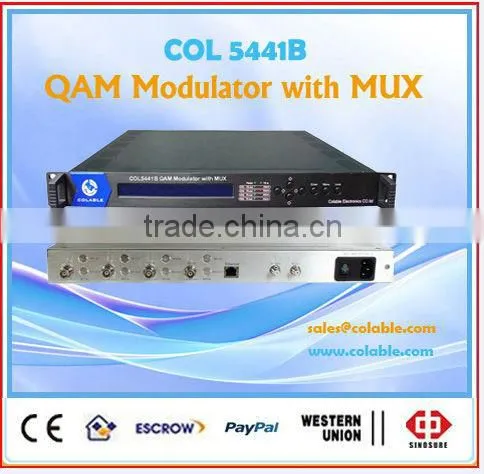

COL5441B is a cost effective integrated 4 in 1 QAM modulator supporting multiplexing and scrambling. This device supports maximum 16 ASI input, after 4 multiplexer and 4 scrambler process, then gives 4 carriers output (4 adjacent frequency output by 1 RF port). It’s ideal for processing ASI input data from different devices and giving RF output by only one device. With its powerful function, it can reduce the operator business cost effectively.
Features:
l Support 16 ASI input
l Fully support EN300 429/ITU-T J.83A/B/C
l Support PSI/SI editing and inserting
l 4 MUX,4 SCR, 4 QAM embedded
l Support 4 simulcrypt CA
l Support accurate PCR adjusting
l 4 Frequency output with excellent MER≥40dB
l Support 16/32/64/128/256QAM
Specification
Input |
16 x ASI inputs, BNC interface |
|
Multiplexer |
input |
16 x ASI |
Output Channel |
4 |
|
Max PIDs |
256 per channel |
|
Functions |
PID remapping(auto/manually optional) PCR accurate adjusting PSI/SI table automatically generating |
|
Scrambling |
Max simu-encrypt CA |
4 |
Scramble Standard |
ETSI 101 197,ETSI 103 197 |
|
Connection |
Local/remote connection |
|
QAM Modulation |
QAM Channel |
4 |
Modulation Standard |
EN300 429/ITU-T J.83A/B/C |
|
Symbol Rate |
5.0~7.0Msps,1ksps stepping |
|
Constellation |
16,32,64,128,256QAM |
|
FEC |
RS(204, 188) |
|
RF Output |
Interface |
F typed output port for 4 carriers, 75Ω impedance |
RF Range |
48~1000 MHz,1kHz stepping |
|
Output Level |
-25dBm~6dBm,0.5dB stepping |
|
MER |
≥ 40dB |
|
ACLR |
(Adjacent Channel Leakage Ratio) − 60 dBc |
|
System |
Network management software (NMS) supporting |
|
English and Chinese interface conversion | ||
Ethernet software upgrade | ||
General |
Demission (W*L*H) |
482mm×455mm×44.5mm |
Weight |
6.7kg |
|
Temperature |
0~45°C(operation),-20~80°C(storage) |
|
Power Supply |
AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz |
|
Consumption |
25W |
|
1 |
LCD Display |
|
2 |
Indicator Area |
POWER:Power Indicator Alarm:Alarming Indicator ECMG1/2/3/4 Indicator EMMG1/2/3/4 Indicator |
3 |
Up/Down/Left/Right Key |
|
4 |
Enter:Confirmation Key |
|
5 |
Menu Key |
|
6 |
Locking Key |
|

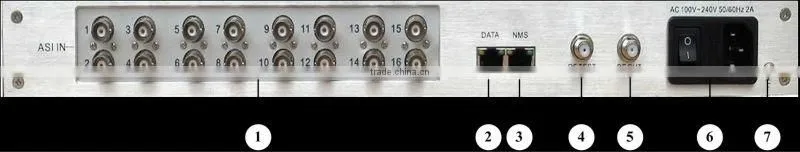

1 |
ASI 1-16 IN |
Channel 1-16 ASI Input |
2 |
Data |
No use temporarily, just for future use |
3 |
NMS |
NMS Interface |
4 |
RF TEST |
RF Test Interface |
5 |
RF OUT |
RF Out Interface |
6 |
Power |
Power Socket |
7 |
Grounding |
Grounding Pole |
