Mpeg 2 Encoder, Integrated Encoder+modulator ,encoder Modulator in One Body,RF Modulator,Series Encoder-Modulator COL5011S

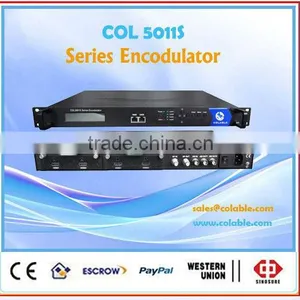

Mpeg 2 Encoder, Integrated Encoder+modulator ,encoder Modulator in One Body,RF Modulator,Series Encoder-Modulator COL5011S thumbnail-1
Mpeg 2 Encoder, Integrated Encoder+modulator ,encoder Modulator in One Body,RF Modulator,Series Encoder-Modulator COL5011S photo-1
US$ 1 - 1,999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
COLABLE
Model Number:
COL5011S
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name COLABLE
Model Number COL5011S

Specifications

MPEG2 low bit rate encoding
2CVBS in, 1ASI in(optional), 1*RF in
RF COFDM DVB-T out
LCD display, Remote control and firmware

 Outline

 COL5011S series Encodulator (small box) is individual-module design, and clients can choose different module to be combined accordingly. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc, and the output signal is to be received by matched STB.

The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides, it’s a good choice for bars to offer SD sports channels, for VIP entertainment channels, and more.

E.g.1: (encoding model with 2 CVBS input, 1 ASI input, and  DVB-T modulation model)



Features



 MPEG2 low bit rate encoding

720*576(PAL), 720*480(NTSC)

 2* CVBS in, 1*ASI in(optional), 1*RF in

 RF COFDM DVB-T out

 LCN support (Logical Channel Number)

 Excellent modulation quality MER≥42dB

 RF Frequency range 30Mhz~960Mhz



Specifications

 ...............



E.g.2: (encoding model with YPbPr, 1 ASI input, and  DVB-T modulation model)



Features



1  Encoding Slots

Support AVC/H.264 Ecoding

MPEG1 Layer II Audio

1*(YPrPb/CVBS/HDMI) in, 1*ASI in, 1* RF in

DVB-T RF output

LCN support (Logical Channel Number)

Excellent modulation quality: MER≥42Db



Specifications



lnput

1x HDMI /YPrPb/CVBS/ (SDI /RF/… optional)

1×ASI input, BNC interface

Yprpb Encoding

Section



























   Video

Encoding

AVC/H.264 High Profile Level 4.0

(HD) AVC/H.264 High Profile Level 3.0 (SD)

Input

HDMI /YPrPb/CVBS *1

Resolution

HDMI/ YPrPb:

1920*1080_60i, 1920*1080_50i, 1280*720_60p,

1280*720_50P

CVBS:

720*480_60i, 720*576_50i

Audio



Encoding

MPEG1 Layer II(1*Stereo or 2*mono)

Sample rate

48KHz

DVB-T modulator section



Standard

EN300744

FFT mode

2K, 8K

Bandwidth

6M,7M,8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-30~ -10dbm(81~97 dbµV), 0.1db step





Stream Output





1*RF

2×ASI outputs, BNC interface

MPTS over UDP,10/100Base-T Ethernet interface

(UDP unicast / multicast)





Interface





Local interface

LCD + control buttons

Remote management

Web NMS

General



Power supply

AC 100V~240V


Dimensions

267*250*44.5mm


Weight

2.6kgs


Operation temperature

0~45°C



Order guide

Encoding modules

· MPEG2 SD encoding with 1 CVBS in

· MPEG2 SD encoding with HDMI /YPrPb/CVBS/ (SDI /RF/… optional)

· MPEG2 encoding with 2 CVBS in

· MPEG4 AVC/H.264 encoding with1 HDMI input

· MPEG4 AVC H.264 encoding with 1 HD/SD SDI in

· DVB-S2 tuner with 1 input

Modulation modules

· ISDB-T RF out module

· DVB-C RF out module

· ATSC RF out module

· DVB-T RF out module
