Help CenterCOL5141C Hd-sdi H.264 Encoder Iptv, Catv Mpeg4 Encoder 4 in 1
Related Products
-
COL5181B Digital tv and Braodcasting System Catv Head-end Equipment Encoder and MultiplexerUS$ 1 - 3,000MOQ: 1 Piece -
C-OL5141B Low Bit Rate MPEG2 Encoder( 4 in 1)NegotiableMOQ: 1 Piece
-
C-OL5100D H.264 HD Encoder ( 4 in 1 ), CATV Headend.NegotiableMOQ: 1 Piece
-
COL5100 H.264 HD Encoder, CATV HeadendNegotiableMOQ: 1 Piece
-
Mpeg2 Digital & Fully Dvb-s Compliant,H.264 SD Single Encoder COL5111AXNegotiableMOQ: 1 Piece
Specifications
1. MPEG-1 Audio Layer 2, ACC( optional)2. 4 CVBS video inputs
3. Multiplexed MPTS ASI output
4. 1 ASI input multiplexing
Outline

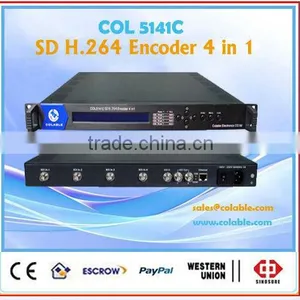

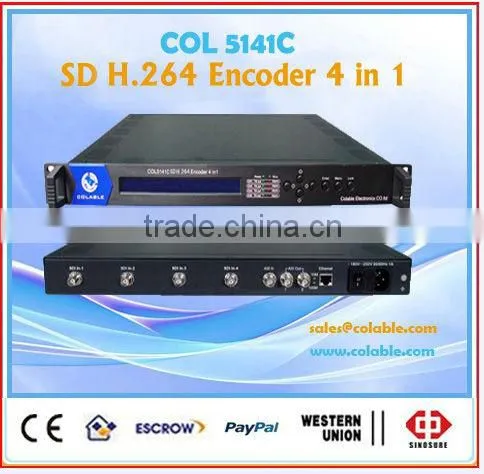

The COL5141C SD H.264 Encoder 4 in 1 (with SDI input) is a professional SD audio & video encoding and multiplexing device with powerful functionality. It has 4 SD-SDI input interfaces, supporting MPEG-4 AVC/H.264 High Profile code format. This device can simultaneously encode 4 channel SD audio & video; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
- H.264/AVC High Profile Level 3.0 video encoding support, advanced video pretreatment algorithm
- Supports MPEG1 Audio Layer 2
- 4 SD-SDI input interfaces
- 1 ASI input multiplexing support
- Multiplexed MPTS ASI output support
- Multiplexed MPTS over UDP unicast/multicast output
- LCD / keyboard operating
- Real-time effective output bit-rate monitoring
- NMS support
Specifications
Input |
4× SD-SDI inputs , BNC interface |
||
1×ASI input, BNC interface | |||
Video |
Resolution |
720×480_60i, 720×576_50i |
|
Encoding |
MPEG-4 AVC/H.264 High Profile Level 3.0 |
||
Bit rate |
0.8Mbps~20Mbps each channel |
||
Rate Control |
CBR/VBR |
||
GOP Structure |
IBBP |
||
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
||
Audio |
Encoding |
MPEG-1 Layer 2 AAC(optional) |
|
Sampling rate |
48KHz, 44.1KHz |
||
Resolution |
24 bit |
||
Bitrate |
64Kb/s~384Kb/s (each channel) |
||
Multiplexing |
1 ASI input multiplexed with local 4 channels TS |
||
Stream output |
2 × ASI outputs, BNC interface |
||
|
MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast) | |||
System function |
LCD/keyboard operating, NMS support, |
||
Ethernet software upgrade | |||
General |
Dimensions (WxDxH) |
480mm×455mm×45mm |
|
Approx weight |
6Kg |
||
Temperature range |
0~45°C(Operation), -20~80°C(Storage) |
||
Power requirements |
AC 110V/220V±10%,50/60Hz |
||
Power consumption |
17.6W |
||
